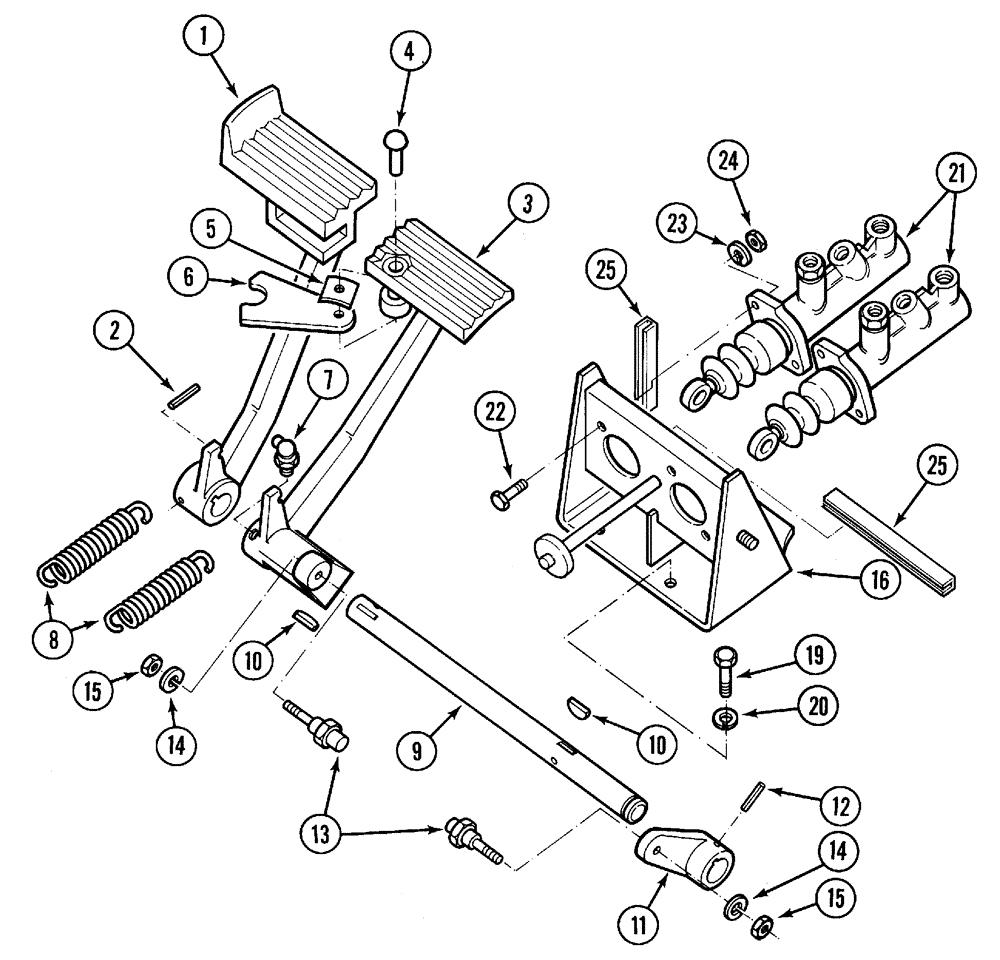

Запчасти Case IH C50 (07-01) - BRAKE PEDALS (07) - BRAKES

1

1500752C1

PEDAL

Right

1шт.

2

38-31628

PIN,1/4" x 1 3/4", Coiled

1/4" x 1 3/4", Coiled

1шт.

3

3125226R91

PEDAL ASSY.

Left, Includes 4,5,6

1шт.

4

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4x32 mm

1шт.

5

51293D0

SPRING, LEAF

1шт.

6

43751DB

LATCH, PEDALS

1шт.

7

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

1/4 dr type x 3/4

1шт.

8

3125230R1

SPRING

2шт.

9

1500753C1

SHAFT

1шт.

10

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

2шт.

11

1500755C1

ARM

Right

1шт.

12

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

1шт.

13

399744R1

BOLT

2шт.

14

92-11038

LOCK WASHER,3/8"

2шт.

15

425-116

NUT,3/8" - 24, Gr 5

2шт.

16

1970643C2

SUPPORT

1шт.

19

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

20

92-11038

LOCK WASHER,3/8"

3шт.

21

1287843C92

MASTER CYLINDER

CYLINDER,MASTER , See Page(s) 7-7

2шт.

22

414-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

5/16 x 7/8; 5

4шт.

23

92-11031

LOCK WASHER,5/16"

4шт.

24

425-115

NUT,5/16"-24, G5

4шт.

25

1537114C1

GASKET

2шт.
