Запчасти Case IH C100 (05-18) - FRONT WHEELS (05) - STEERING

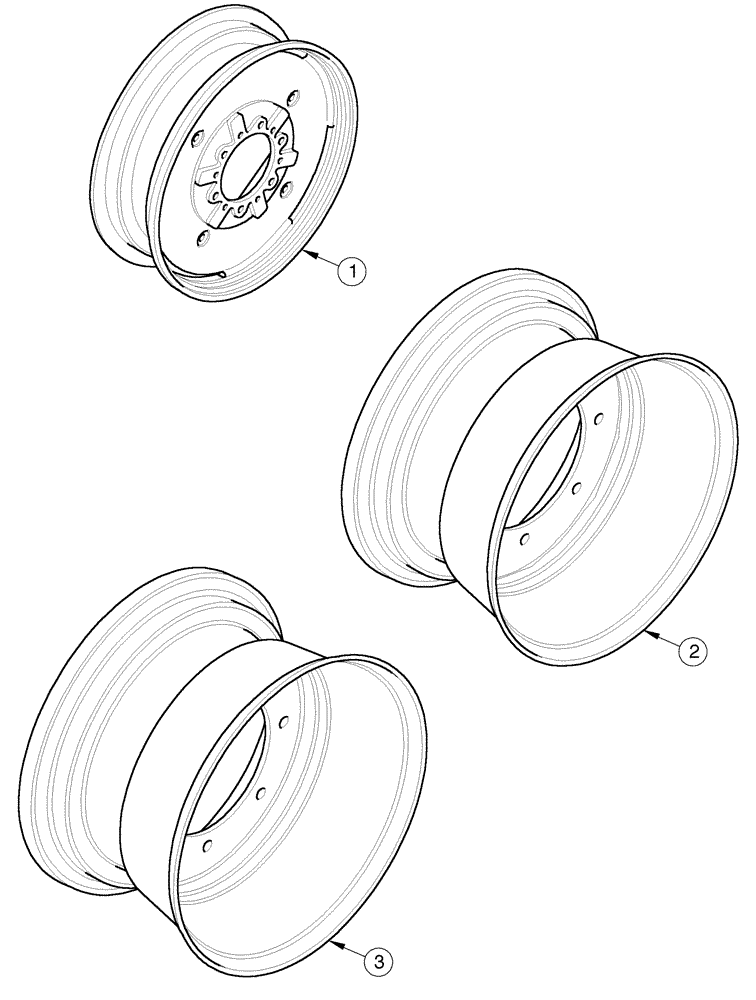

Схема запчастей Case IH C100 - (05-18) - FRONT WHEELS (05) - STEERING
1
2
3

Артикул

Название

Примечание

Количество

Europe Only

1шт.

2WD

1шт.

1

1985352C1

WHEEL ASSY.

4.50Ex16, For Tires 6.00 x 16

2шт.

1

G57046

WHEEL ASSY.

5.5x16, For Tires 7.50 x 16

2шт.

1

1536367C1

WHEEL ASSY.

W8Lx16, For Tires 10 x 16

2шт.

1

400573R1

WHEEL

5.5x18, For Tires 7.50 x 18

2шт.

387897R91

VALVE STEM

Not Illustrated

2шт.

4WD

1шт.

2

1328756C1

WHEEL

W9x18, For Tires 10.5 x 18

2шт.

2

134068A1

RIM

WHEEL , W11x18, For Tires 14.5/80 x 18

2шт.

2

179711A1

RIM

WHEEL , W9x20, For Tires 11.2 x 20

2шт.

3

137643A1

RIM

WHEEL , W11x20, For Tires 12.4,14.9 x 20, For Tires 375/80,405/70 x 20

2шт.

A20058

VALVE STEM

Not Illustrated

2шт.

Выбрано товаров: 13
