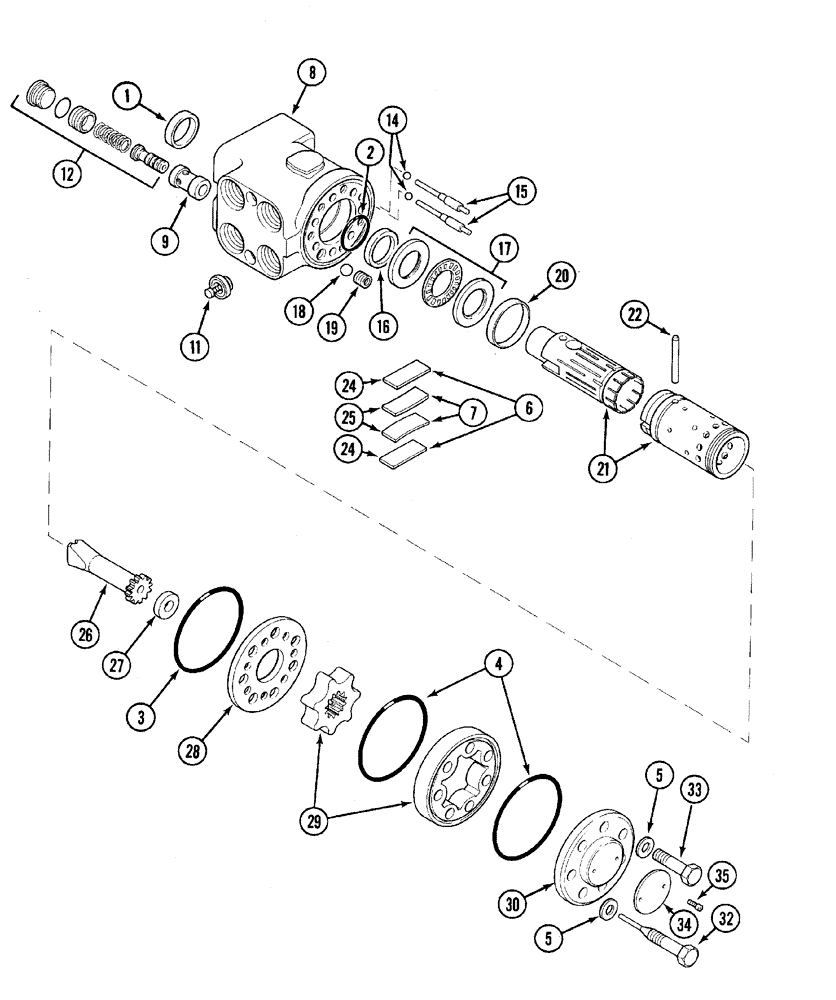

Запчасти Case IH C100 (05-06) - INTEGRAL HYDROSTATIC STEERING VALVE (05) - STEERING

DANFOSS OSPC 100 OR

1шт.

88107C93

PUMP

Consists Of 1 - 35

1шт.

366441A1R

REMAN-HYD PUMP

C70, C80, C90, C100, All CASE DIESEL TRACTOR, Reman for New PN 88107C93

1шт.

366441A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

319548A1

SEAL KIT

Includes 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Seal

1шт.

2

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

5

NSS

NOT SOLD SEPARAT

Washer

7шт.

6

NSS

NOT SOLD SEPARAT

Spring

2шт.

7

NSS

NOT SOLD SEPARAT

Spring

2шт.

8

NSS

NOT SOLD SEPARAT

Housing Assy

1шт.

9

NSS

NOT SOLD SEPARAT

Seat, Relief Valve

1шт.

11

NSS

NOT SOLD SEPARAT

Valve, Check

1шт.

12

1971688C1

VALVE

1шт.

14

211-1006

BALL,3/16" Dia

2шт.

15

E46553

VALVE POPPET

2шт.

16

NSS

NOT SOLD SEPARAT

Ring

1шт.

17

1272808C1

NEEDLE BEARING

1шт.

18

1272794C1

BALL

8,5 mm dia

1шт.

19

1272793C1

BUSHING

1шт.

20

1272795C1

O-RING,39.6mm ID x 41mm OD x 4.5mm

1шт.

21

NSS

NOT SOLD SEPARAT

Spool

1шт.

22

1272796C1

CROSS PIN

6 x 41 mm

1шт.

N14219

SET OF PARTS

Standard, Includes 24,25

1шт.

24

NSS

NOT SOLD SEPARAT

Spring

2шт.

25

NSS

NOT SOLD SEPARAT

Spring

3шт.

26

1272797C1

SHAFT

1шт.

27

3216707R1

SPACER

1шт.

28

1346022C1

PLATE

1шт.

29

3216708R1

ROTOR

1шт.

30

3112273R1

COVER

1шт.

32

3216709R1

SCREW

1шт.

33

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

6шт.

34

NSS

NOT SOLD SEPARAT

Plate

1шт.

35

NSS

NOT SOLD SEPARAT

Screw

2шт.
