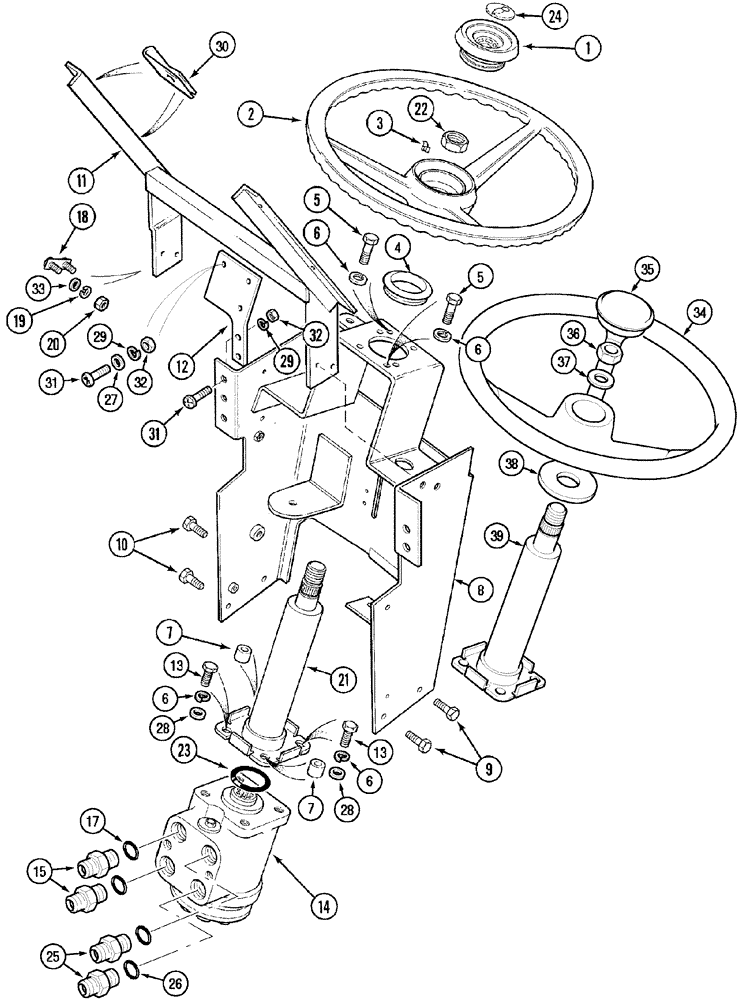

Запчасти Case IH C100 (05-01) - STEERING WHEEL, SUPPORT AND VALVE (05) - STEERING

1

68837C3

CAP

Includes 24

1шт.

2

3123597R91

HANDWHEEL

408 mm, Includes 3

1шт.

2

385156R1

WHEEL (STEERING)

Includes 3, N.A. Only

1шт.

2

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

3

537024R1

CLIP

3шт.

4

3123366R2

PLUG

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

6

92-11038

LOCK WASHER,3/8"

4шт.

7

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

2шт.

8

144169A2

STEERING SUPPORT

1шт.

9

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

3/8 x 1/2

2шт.

10

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

11

139365A2

SUPPORT

1шт.

12

233437A3

SUPPORT

Fuse Box

1шт.

13

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

14

88107C93

PUMP

See Page(s) 5-15

1шт.

.

366441A1R

REMAN-HYD PUMP

C70, C80, C90, C100, All CASE DIESEL TRACTOR, Reman for New PN 88107C93

1шт.

.

366441A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

14

366441A1

STEERING VALVE

Optional

1шт.

.

366441A1R

REMAN-HYD PUMP

C70, C80, C90, C100, All CASE DIESEL TRACTOR

1шт.

.

366441A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 17

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

144295A1

LARGE PLATE

PLATE, LARGE

2шт.

19

492-11031

LOCK WASHER,5/16"

4шт.

20

425-105

NUT,5/16"-18, G5

4шт.

21

3121187R92

STEERING COLUMN

COLUMN-STEERING , 13/16 in, Includes 22,23

1шт.

22

F19646

LOCK NUT,13/16"-20, Thin

13/16 in

1шт.

23

1537340C1

O-RING,44.12mm ID x 2.62mm Width

1шт.

24

A180055

CAP ASSY.

Case

1шт.

25

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16 fl x 3/4 Or, Includes 26

2шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

29

892-11006

LOCK WASHER,M6

5шт.

30

140714A1

SPRING NUT

4шт.

31

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

5шт.

32

829-1406

NUT,Hex, M6 x 1, Cl 10.9

5шт.

33

495-81117

WASHER,.344" x 1" x .120"

11/32 x 1 x 7/64

4шт.

.

If So Equipped

1шт.

34

224818A3

STEERING WHEEL

1шт.

35

224819A2

CAP

1шт.

36

825-11414

NUT,M14 x 1.5, Cl 8

1шт.

37

895-11014

WASHER,M14 x 28 x 2.5

15,5 x 28 x 2,5 mm

1шт.

38

341887A1

RUBBER WASHER

1шт.

39

341888A1

STEERING COLUMN

14 mm, Includes 26,36,37

1шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.
