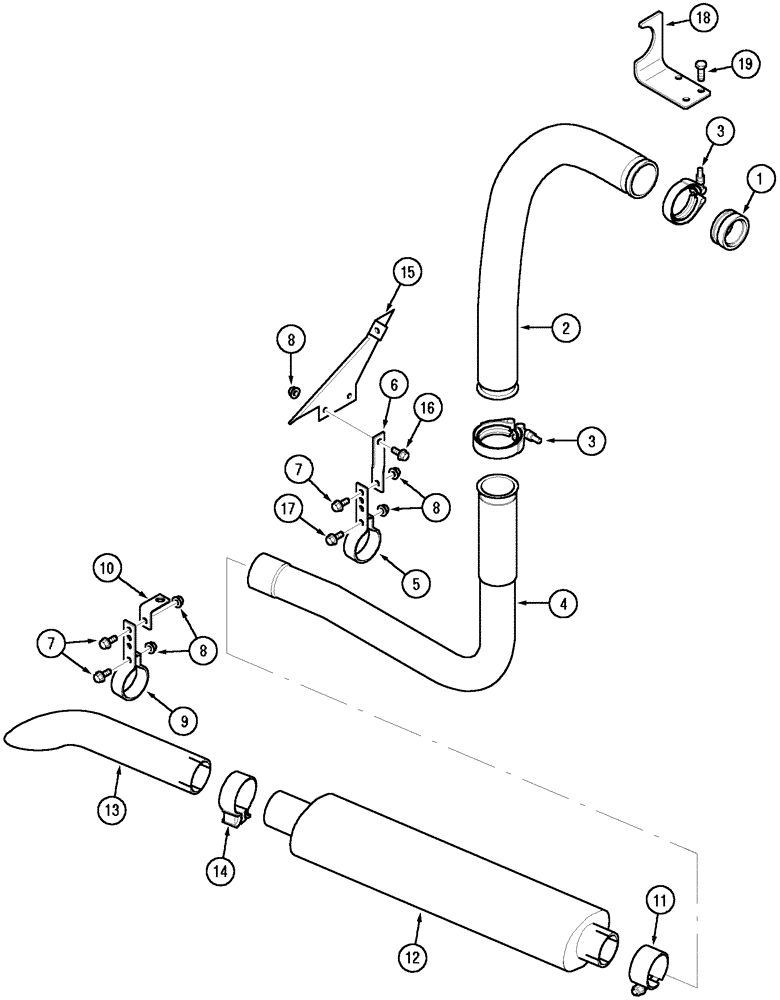

Запчасти Case IH C100 (02-20) - UNDERSLUNG EXHAUST (02) - ENGINE

C80, C90, C100

1шт.

1

314462A1

ADAPTER

Turbocharger

1шт.

2

282257A1

TUBE

1шт.

3

A170467

CLAMP,72mm ID

2шт.

4

284167A1

PIPE

1шт.

5

1536736C1

SUPPORT

Serial No. - JJE1003769

1шт.

5

311470A1

SUPPORT

Serial No. JJE1003770 -

1шт.

6

282255A2

SUPPORT

1шт.

7

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

S/N JJE1003769

4шт.

7

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

S/N JJE1003770

3шт.

8

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

9

284085A1

CLAMP

1шт.

10

284159A1

SUPPORT

1шт.

11

283249A1

COLLAR

1шт.

12

282082A2

MUFFLER

C80, C90

1шт.

12

282081A2

MUFFLER

C100

1шт.

13

283509A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST , 420 mm

1шт.

14

177813A1

CLAMP,65.9mm - 68.3mm

1шт.

15

299391A1

GUARD

1шт.

16

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

17

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

S/N JJE1003770 -

1шт.

18

314437A1

SUPPORT

1шт.

19

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.
