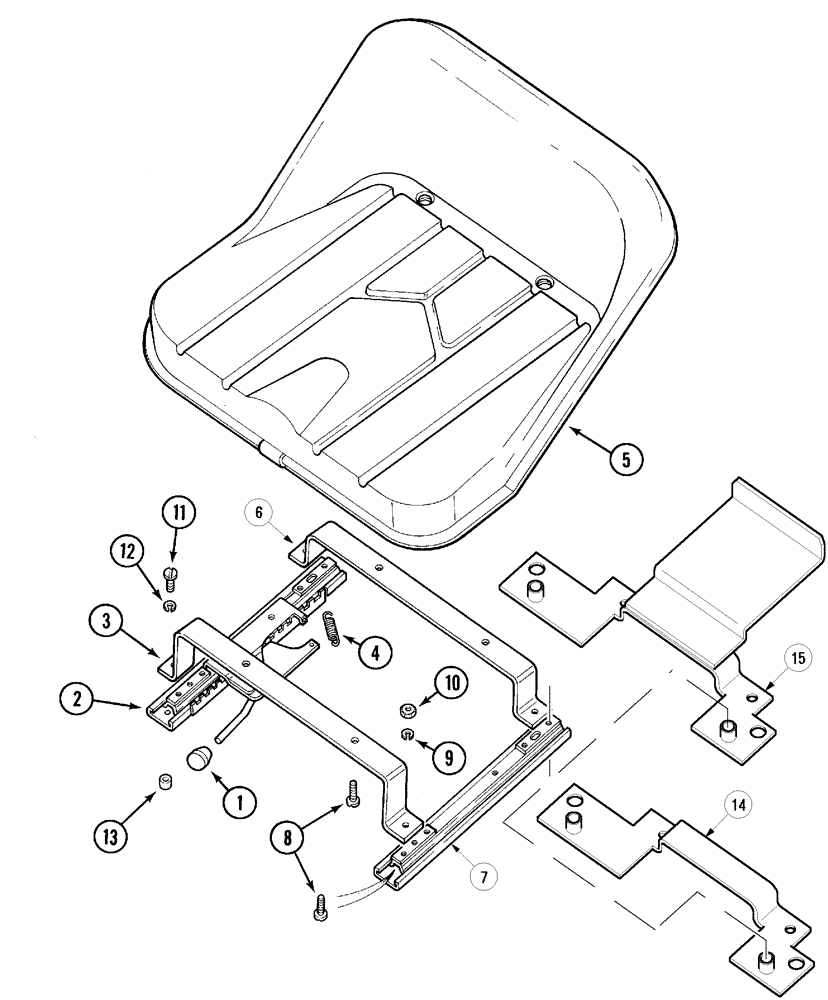

Запчасти Case IH C100 (09-17) - SEAT - NON SUSPENSION (09) - CHASSIS/ATTACHMENTS

1536395C1

SEAT

PVC, Includes 1 - 10, See Page(s) 9-35,37

1шт.

232828A1

PACKAGE

Includes 1 - 4,6 - 10

1шт.

1

538693R1

BUTTON

1шт.

2

NSS

NOT SOLD SEPARAT

Rail, Right, Order 232828A1

1шт.

3

3121642R1

SUPPORT

Front

1шт.

4

538694R1

SPRING

Return

1шт.

5

538026R2

SEAT ASSY.

1шт.

6

3121643R1

SUPPORT

Rear

1шт.

7

NSS

NOT SOLD SEPARAT

Rail, Left, Order 232828A1

1шт.

8

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

5/16 x 3/4

8шт.

9

492-11031

LOCK WASHER,5/16"

8шт.

10

425-105

NUT,5/16"-18, G5

4шт.

11

440-13120

SCREW,Cross Pan Hd, 5/16"-18 x 1 1/4"

5/16 x 1-1/4

4шт.

12

892-11012

LOCK WASHER,M12

4шт.

13

3123562R1

SPACER

2шт.

14

293446A3

SUPPORT

Reinforcement

1шт.

15

333077A2

SUPPORT

Use With, Plastic, Fuel Tank

1шт.
