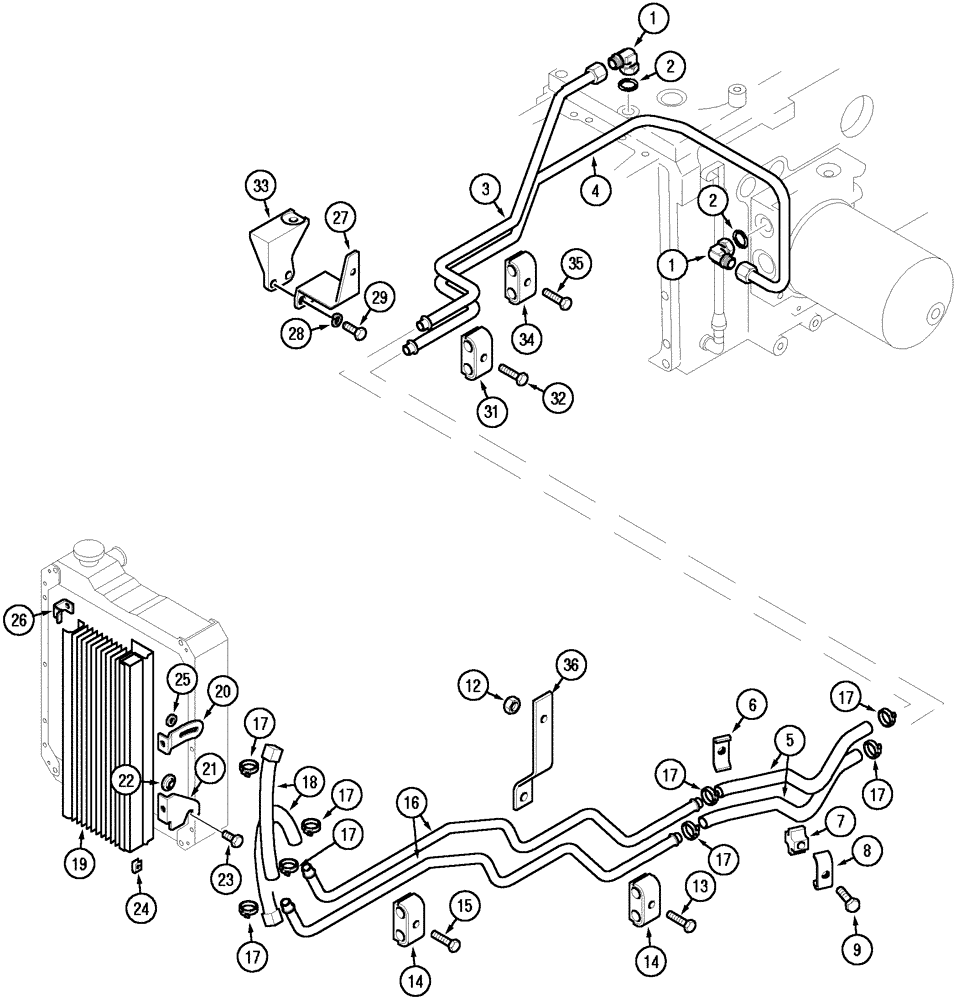

Запчасти Case IH C100 (08-02) - OIL COOLER AND CONNECTIONS (08) - HYDRAULICS

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 2

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

236216A4

HYD TUBE

Return

1шт.

4

236308A4

HYD TUBE

Pressure

1шт.

5

278813A1

A/C HOSE,12.70 mm ID x 460.00 mm, SAE 100R6

2шт.

6

259178A1

CLAMP

1шт.

7

259177A1

CLAMP

1шт.

8

259176A1

CLAMP

1шт.

9

844-6050

BOLT,Hvy Hex, M6 x 50mm, Cl 8.8

M6 x 60; 8,8

1шт.

12

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

13

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

14

258490A2

SHIN

1шт.

15

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

16

297288A2

HYD TUBE,0.5" OD, 677, 248 mm Length

2шт.

17

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

8шт.

18

278813A1

A/C HOSE,12.70 mm ID x 460.00 mm, SAE 100R6

2шт.

19

221977A6

COOLER, OIL

1шт.

20

281946A1

SUPPORT

1шт.

21

281945A1

SUPPORT

1шт.

22

281944A1

BUSHING

1шт.

23

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

6шт.

24

282164A1

NUT

2шт.

25

282165A1

WASHER

1шт.

26

281943A1

SUPPORT

1шт.

27

236371A2

SUPPORT ASSY.

1шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

31

258490A2

SHIN

1шт.

32

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

33

246531A1

SUPPORT

1шт.
