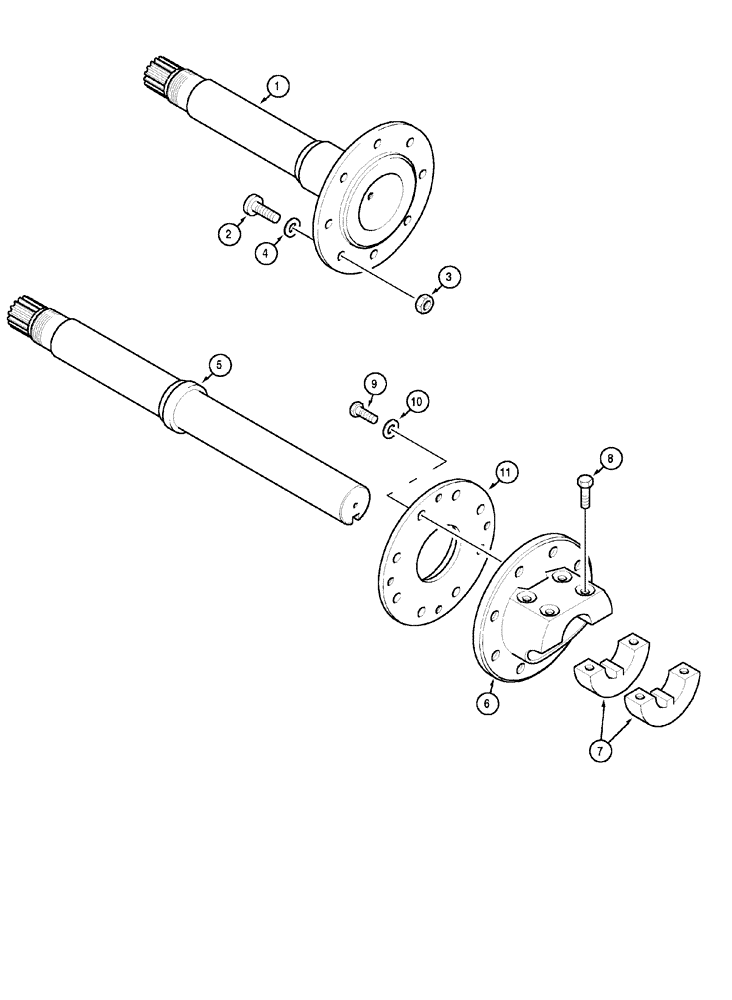

Запчасти Case IH C100 (06-51) - WHEEL MOUNTING (06) - POWER TRAIN

Flange Axle

1шт.

1

404345R14

HALF SHAFT

Includes 2

2шт.

2

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

8шт.

3

429-1110

NUT,5/8"-18, G8

16шт.

4

396-11066

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

21/32 x 1-5/16 x 3/32

16шт.

Row Crop

1шт.

5

527353R11

AXLE, REAR

AXLE REAR

2шт.

6

530504R1

HUB

2шт.

7

389539R1

CLAMP

4шт.

8

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

8шт.

9

161-102

HEX SOC SCREW,Prev Torque, Flat Hd, 1/2" - 13 x 1 1/4"

1/2x32 mm

16шт.

10

396-11066

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

21/32 x 1-5/16 x 3/32

16шт.

11

365957R3

FLANGE

2шт.
