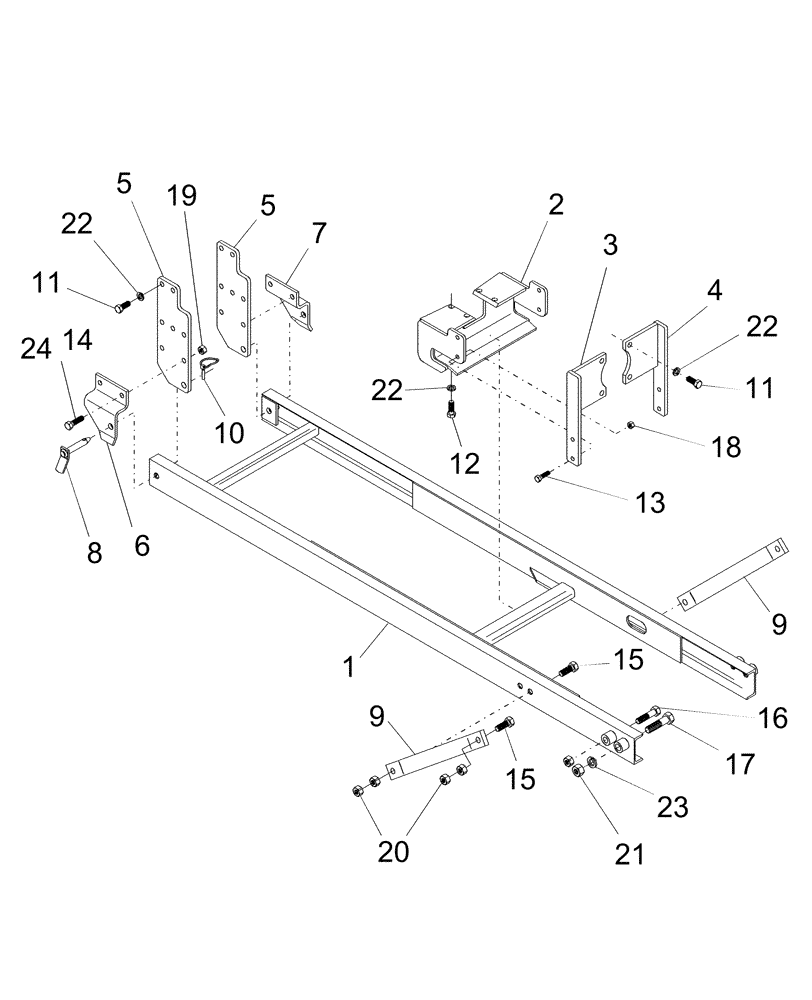

Запчасти Case IH BHX190 (09) - SUBFRAME, 716394006 - DX48 AND DX55 TRACTORS

1

SML44902

FRAME

1шт.

2

SML51499

SUPPORT

BRACKET, SUBFRAME MOUNTING

1шт.

3

SML449221

SUPPORT

Subframe Rear Mounting, Left

1шт.

4

SML449222

SUPPORT

Subframe Rear Mounting, Right

1шт.

5

SML51179

MOUNTING PLATE

PLATE, SUBFRAME MID HANGER

2шт.

6

SML511891

BRACKET

SUBFRAME MID HANGER LEFT

1шт.

7

SML511892

BRACKET

SUBFRAME MID HANGER RIGHT

1шт.

8

SML44892

PIN,3.25" L

Hitch

2шт.

9

SML44836

SUPPORT

Mount Bar

2шт.

10

SML447561

PIN

Linch

2шт.

11

PL

PROCURE LOCALLY

Screw, Cap, Hex, 16MM-2.0 x 40MM

14шт.

12

PL

PROCURE LOCALLY

Screw, Cap, Hex, 16MM-2.0 x 45MM

4шт.

13

PL

PROCURE LOCALLY

Screw, Cap, Hex, 1/2-13 x 1-1/2"

4шт.

14

PL

PROCURE LOCALLY

Screw, Cap, Hex, 3/4-10 x 2-3/4"

4шт.

15

PL

PROCURE LOCALLY

Screw, Cap, Hex, 3/4-10 x 3"

2шт.

16

PL

PROCURE LOCALLY

Screw, Cap, Hex, 7/8-9 x 3-1/2"

2шт.

17

PL

PROCURE LOCALLY

Screw, Cap, Hex, 5/8-11 x 1-3/4"

4шт.

18

PL

PROCURE LOCALLY

Nut, Hex, Lock, 5/8-11

4шт.

19

PL

PROCURE LOCALLY

Nut, Hex, Lock, 1/2-13

10шт.

20

PL

PROCURE LOCALLY

Nut, Hex, Lock, 3/4-10

4шт.

21

PL

PROCURE LOCALLY

Nut, Hex, 7/8-9

10шт.

22

PL

PROCURE LOCALLY

Washer, Lock, 5/8"

2шт.

23

PL

PROCURE LOCALLY

Washer, Lock, 7/8"

18шт.

24

PL

PROCURE LOCALLY

Screw, Cap, Hex, 5/8"-11 x 2-1/4"

2шт.
