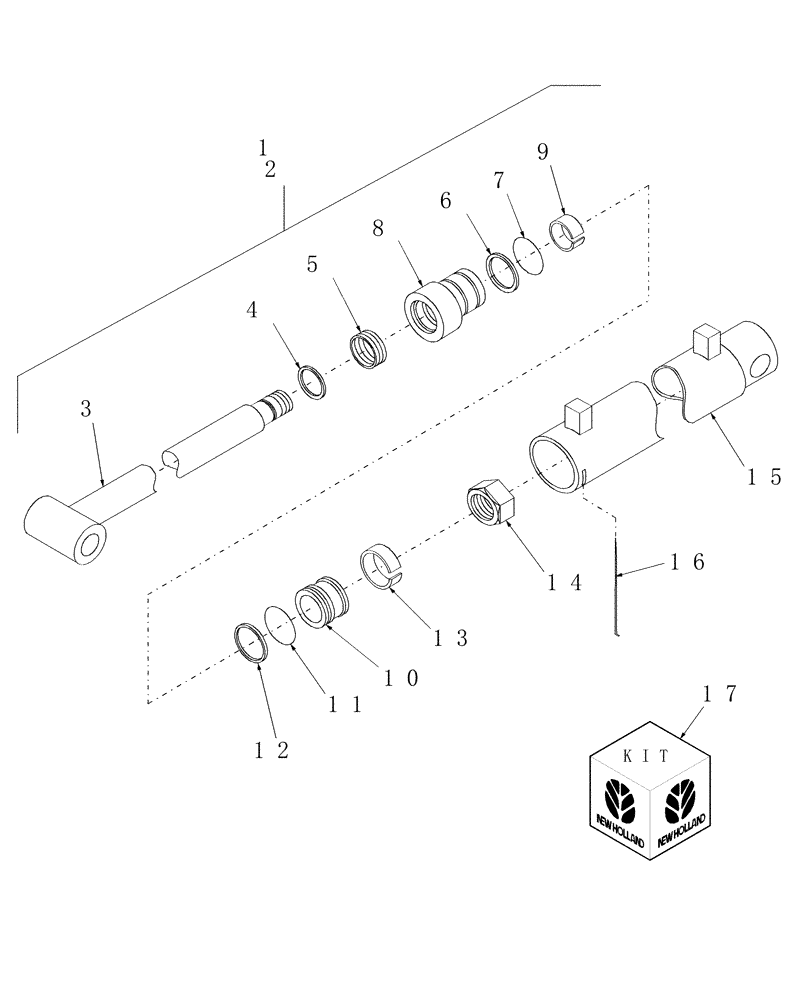

Запчасти Case IH BHX190 (47) - STABILIZER (CSE44551) & BUCKET (CSE44556) CYLINDERS, 2-1/4

1

CSE44556

HYDRAULIC CYLINDER,Double Acting, 425.45mm Stroke

Bucket, 2/14"

1шт.

2

CSE44551

CYLINDER,Double Acting, 261.87mm Stroke

Stabilizer, 2-1/4

1шт.

3

SML44555

ROD

Weldment, 1-3/8" (Bucket Cylinder)

1шт.

3

SML44547

ROD

Weldment, 1-3/8" (Stabilizer Cylinder)

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Wiper

1шт.

5

NSS

NOT SOLD SEPARAT

Seal, V-Cup

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

SML41488

CYLINDER HEAD

Head, Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

10

SML35519

PISTON

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

12

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

14

514101

LOCK NUT,Hex, 1" - 14

Nut, Lock, G8, 1"-14

1шт.

15

CSE44557

TUBE

Cylinder Tube, Weldment (Bucket Cylinder)

1шт.

15

CSE44550

TUBE

Cylinder Tube, Weldment (Stabilizer Cylinder)

1шт.

16

NSS

NOT SOLD SEPARAT

Lockwire

1шт.

17

SML41555

REPAIR KIT

. Includes: Ref. 3, 4 thru 7, 9, 11 thru 13, 16

1шт.
