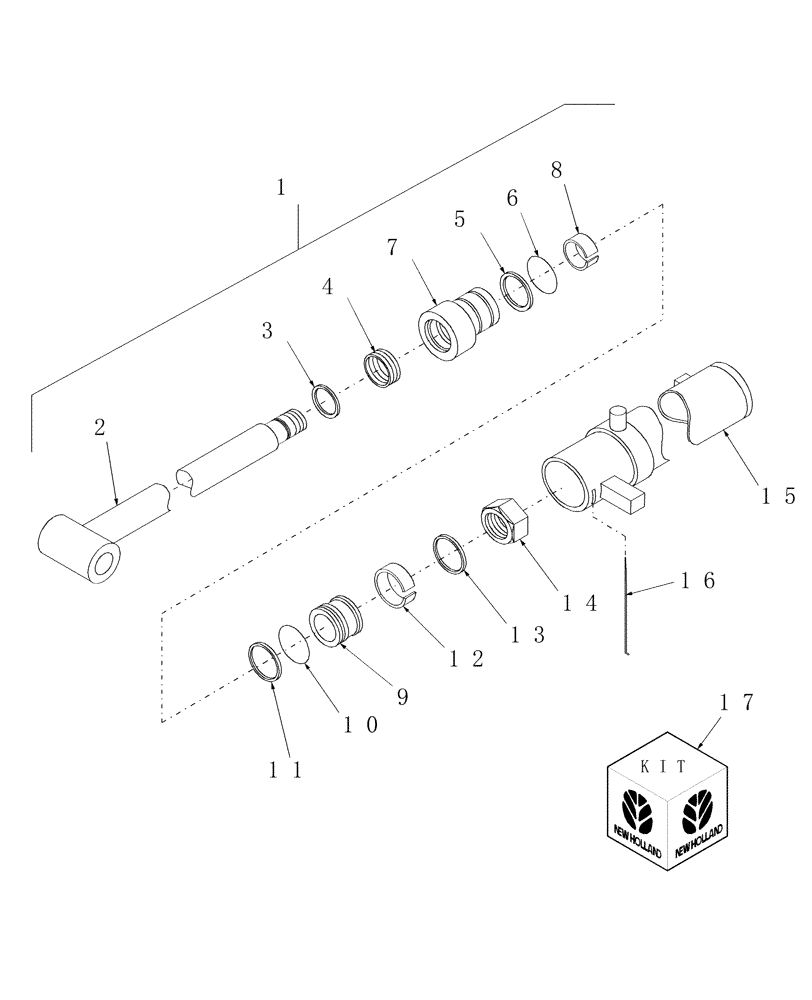

Запчасти Case IH BHX190 (43) - SWING CYLINDER

1

CSE44524

HYDRAULIC CYLINDER,227.84mm Stroke

Swing Cylinders Assy., 2-1/4"

1шт.

2

SML44534

ROD

Weldment, 1-3/8", with Bushing

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Wiper

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, V-Cup

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

SML41488

CYLINDER HEAD

Head, Cylinder

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

9

SML44536

PISTON

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

11

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

13

SML445371

RING

Steel

1шт.

14

514101

LOCK NUT,Hex, 1" - 14

Nut, Lock, G8, 1"-14

1шт.

15

CSE44525

TUBE ASSY.

Cylinder, Tube, Weldment

1шт.

16

NSS

NOT SOLD SEPARAT

Lockwire

1шт.

SML452523

BUSHING

1" ID x 1.25" OD x 1" Long

4шт.

Not Illustrated

1шт.

17

SML41555

REPAIR KIT

. Includes: Ref. 3 thru 6, 8, 10 thru 12, 16

1шт.
