Запчасти Case IH BHX190 (25) - GRESEN VALVE V-10 - SML44752

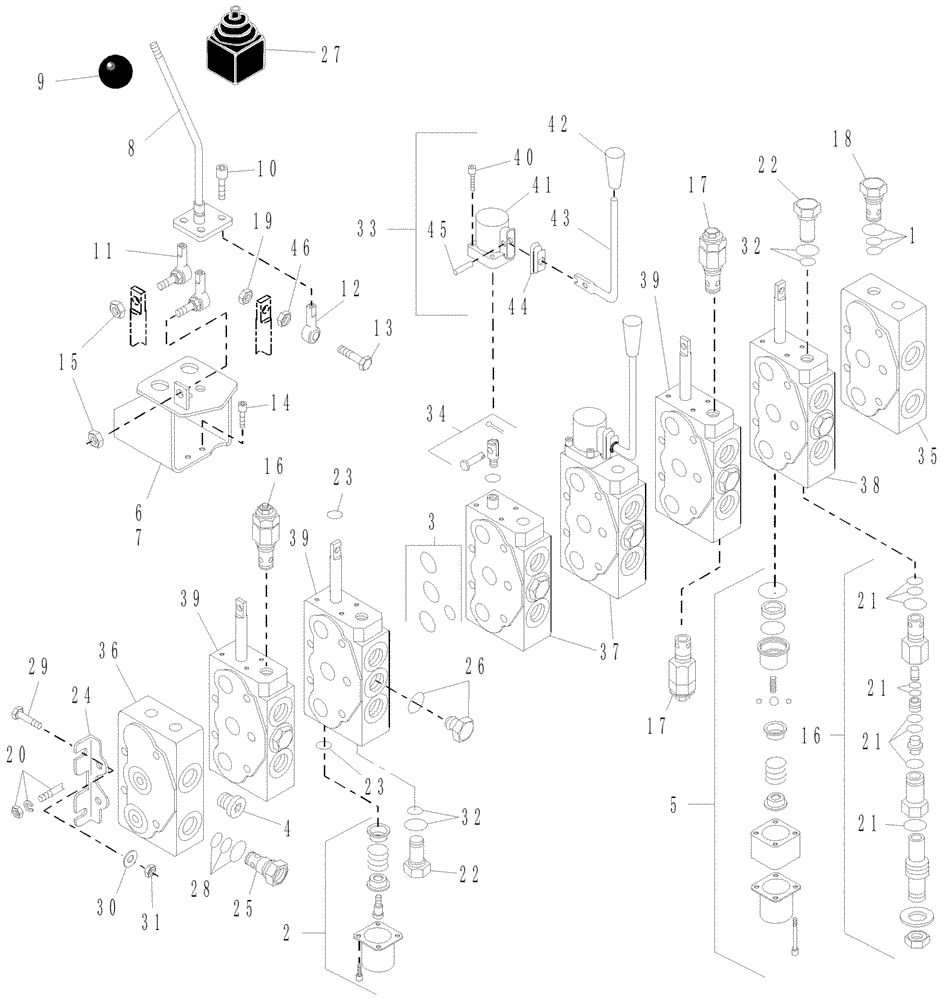

Схема запчастей Case IH BHX190 - (25) - GRESEN VALVE V-10 - SML44752
13
40
17
45
39
21
16
46
36
25
6
27
30
8
23
22
10
28
35
5
41
21
31
21
3
18
24
21
26
12
17
4
19
39
34
23
38
43
44
39
33
2
42
15
32
14
37
22
29
9
32
16
7
11
20
1

Артикул

Название

Примечание

Количество

1

SML45014

SEAL KIT

Kit, Seal, Main Relief Cartridge

1шт.

2

SML46065

KIT

Positioner, Spring Center (New Style "B")

5шт.

3

SML45015

SEAL KIT

Kit, Seal, Body Section

7шт.

4

SML45013

PLUG

Port

1шт.

5

SML51174

KIT

Positioner, Float (New Style "B")

1шт.

6

SML447852

SUPPORT

Riser, Right

1шт.

7

SML447851

SUPPORT

Riser, Left (Not Shown)

1шт.

8

SML44778

HANDLE

2шт.

9

SML44279

KNOB

Ball

2шт.

10

SML389101

SCREW

Cap, Socket Head, 1/4 -28 x 3/4

6шт.

11

SML260093

UNIVERSAL JOINT

Rod End, Assy.

4шт.

12

SML389005

BALL JOINT

Rod End

2шт.

13

SMLG454841

SCREW

Cap, 1/4 -20 x 2, Grade 8

2шт.

14

SML389103

SCREW

Cap, Socket Head, #10-24 x 1-1/2

8шт.

15

84935

NUT

G5, 1/4"-28

6шт.

16

SML45001

VALVE PRESSURE RELIE

Relief, Work Port, 2500 PSI

2шт.

17

SML45003

VALVE PRESSURE RELIE

Relief, Work Port With Anti Cavitation, 2000 PSI

2шт.

18

SML44997

VALVE PRESSURE RELIE

Relief, Main 2000 PSI

1шт.

19

280129

NUT,1/4"-20

NUT, LOCK, 1/4"-20, GC

2шт.

20

SML45010

KIT

Stud (Includes four subd bolts and hardware)

1шт.

21

SML45004

SEAL KIT

Kit, Seal, Relief (Work relief cartriges)

4шт.

22

SML44993

PLUG

No Relief Cavity

2шт.

23

SML45011

SEAL KIT

Kit, Seal, Spool (Includes 2 Seals)

6шт.

24

SML45019

BRACKET

Mounting

2шт.

25

SML44996

SLEEVE

Power Beyond (Optional)

1шт.

26

SML45000

KIT

Plug, Load Check

6шт.

27

SML44855

BOOT

2шт.

28

SML45012

SEAL KIT

Kit, Seal, Power Beyond

1шт.

29

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

30

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

31

9635082

NUT,5/16" - 18, Gr 5

Lock, G5, 5/16"-18

4шт.

32

SML45005

SEAL KIT

Kit, Seal, Work Port Plug

2шт.

33

SML44998

KIT

Handle

2шт.

34

SML45002

KIT

Clevis & Pin

2шт.

35

SML45006

COVER

Inlet

2шт.

36

SML45018

COVER

Outlet

1шт.

37

SML46142

HYD VALVE SECTION

Valve Section, 4-way, 3-position (Does not include items 16, 17, 34, or 35)

2шт.

38

SML46141

HYD VALVE SECTION

Valve Section, 4-postion float

1шт.

39

SML46143

HYD VALVE SECTION

Valve Section, with long spool (Does not include 16 or 17)

3шт.

40

SML389105

SCREW

Cap, Socket Head, #10-24 x 1"

4шт.

41

SML49438

BRACKET

Handle

1шт.

42

SML49436

KNOB

Handle

1шт.

43

SML49437

LEVER

Rod, Handle

1шт.

44

SML49435

BOOT

Dust

1шт.

45

SML60744

DOWEL

Pin, Dowel, 3/16 x 1/2"

1шт.

46

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

Выбрано товаров: 46
