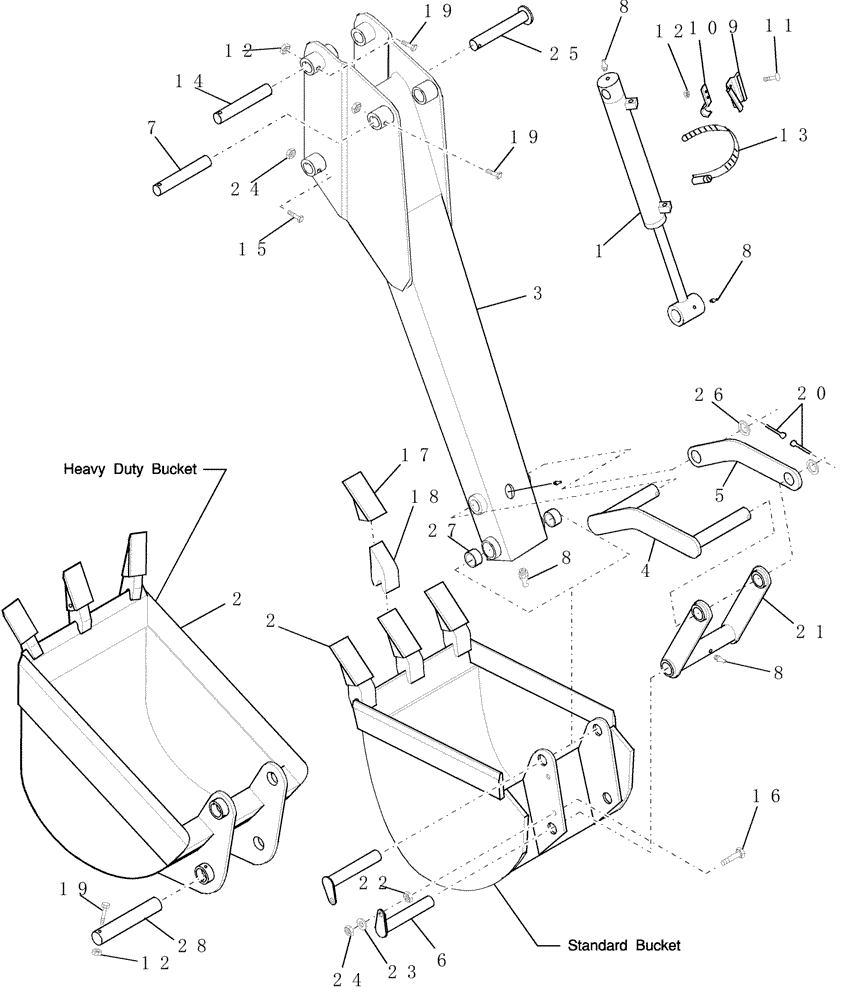

Запчасти Case IH BHX172 (20) - DIPPERSTICK & BUCKET

1

CSE44556

HYDRAULIC CYLINDER,Double Acting, 425.45mm Stroke

Bucket

1шт.

2

W0

ORDER WHOLEGOODS

Bucket, Complete, Standard, 9", 2 Teeth, .87 Heaped, (716398006)

1шт.

W0

ORDER WHOLEGOODS

Bucket, Complete, Standard, 12", 3 Teeth, 1.24 Heaped, (716399006)

1шт.

W0

ORDER WHOLEGOODS

Bucket, Complete, Standard, 16", 3 Teeth, 1.76 Heaped, (716400006)

1шт.

W0

ORDER WHOLEGOODS

Bucket, Complete, Standard, 18", 4 Teeth, 2.02 Heaped, (716434016)

1шт.

3

CSE45680

DIPPER

Arm, Backhoe, Dipperstick

1шт.

4

CSE44754

ARM

Toggle

1шт.

5

CSE44755

PLATE

Link Arm, Toggle

1шт.

6

SML3133212

PIN

Anti Rotation, 1 x 6-5/8

2шт.

7

SML359575

PIN

Cylinder Base, 1 x 6-1/4

1шт.

8

SML60754

LUBE NIPPLE

Fitting, Grease, 1/4-28

5шт.

9

SML44793

SOCKET

Slow Moving Vehicle

1шт.

10

SML44794

BRACKET

Mounting, Slow Moving Vehicle

1шт.

11

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

12

425-105

NUT,5/16"-18, G5

5шт.

13

SML60762

CLAMP

Hose

1шт.

14

SML359577

PIN

1 x 7-1/4

2шт.

15

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

17

SML448671

BUCKET TOOTH

Tooth, Bucket, 1-3/4 Wide

1шт.

18

SML41703

SHANK

Bucket, 1" Wide

1шт.

19

280649

BOLT,Tap, Hex, 5/6" - 18 x 2", Gr 5

HH, Tap, G5, 5/16"-18 x 2"

3шт.

20

SMLG103420

PIN, SPLIT (COTTER)

Pin, Split, Cotter, 1/4 x 1-1/2

2шт.

21

CSE44757

CLEVIS COUPLING

Link, Bucket

1шт.

22

SMLG124829

NUT

Jam, 3/8 -16

2шт.

23

PL

PROCURE LOCALLY

WASHER Flat, 3/8

2шт.

24

232-4146

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

25

SML44833

PIN

Pivot, 1-1/4 x 7-1/4

1шт.

26

86582378

WASHER,25.4mm ID x 38.1mm OD x 1.98mm Thk

Washer, Machine, 1 x 1-1/2"

2шт.

27

SML452522

BUSHING

1 ID x 1.25 OD - Replaces SML60422

2шт.

28

SML359578

PIN

1 x 8-1/8

2шт.
