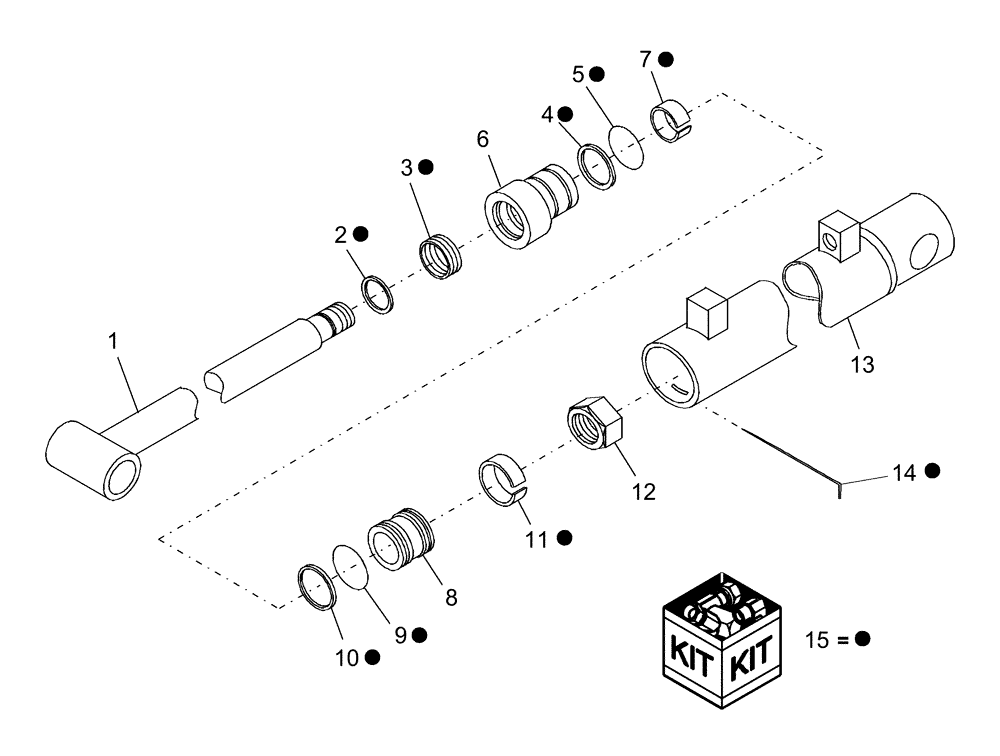

Запчасти Case IH BHX172 (52) - BOOM & DIPPER CYLINDER

1

SML45675

ROD

Weldment, 1-3/8", Boom Cylinder

1шт.

1

SML44555

ROD

Weldment, 1-3/8", Dipper Cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Wiper

1шт.

3

NSS

NOT SOLD SEPARAT

Seal, V-Cup

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

SML44043

CYLINDER HEAD

Head, Cylinder, Boom Cylinder

1шт.

6

SML41488

CYLINDER HEAD

Head, Cylinder, Dipper Cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

8

SML44041

PISTON

Boom Cylinder

1шт.

8

SML35519

PISTON

Dipper Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

10

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

12

SML329032

LOCK NUT

Lock, 1" -14 - Boom Cylinder

1шт.

12

SML389983

LOCK NUT

Lock, G8, 1"-14

1шт.

13

CSE45670

TUBE

Cylinder, Weldment, Boom Cylinder

1шт.

13

SML45883

TUBE

Cylinder, Weldment, Dipper Cylinder

1шт.

14

NSS

NOT SOLD SEPARAT

Lockwire

1шт.

15

SML43754

REPAIR KIT

Kit, Repair, Includes Ref. 2-5,7,9-11, &14, Boom Cylinder

1шт.

15

SML41555

REPAIR KIT

Kit, Repair, Includes Ref. 2-5,7,9-11, & 14, Dipper Cylinder

1шт.
