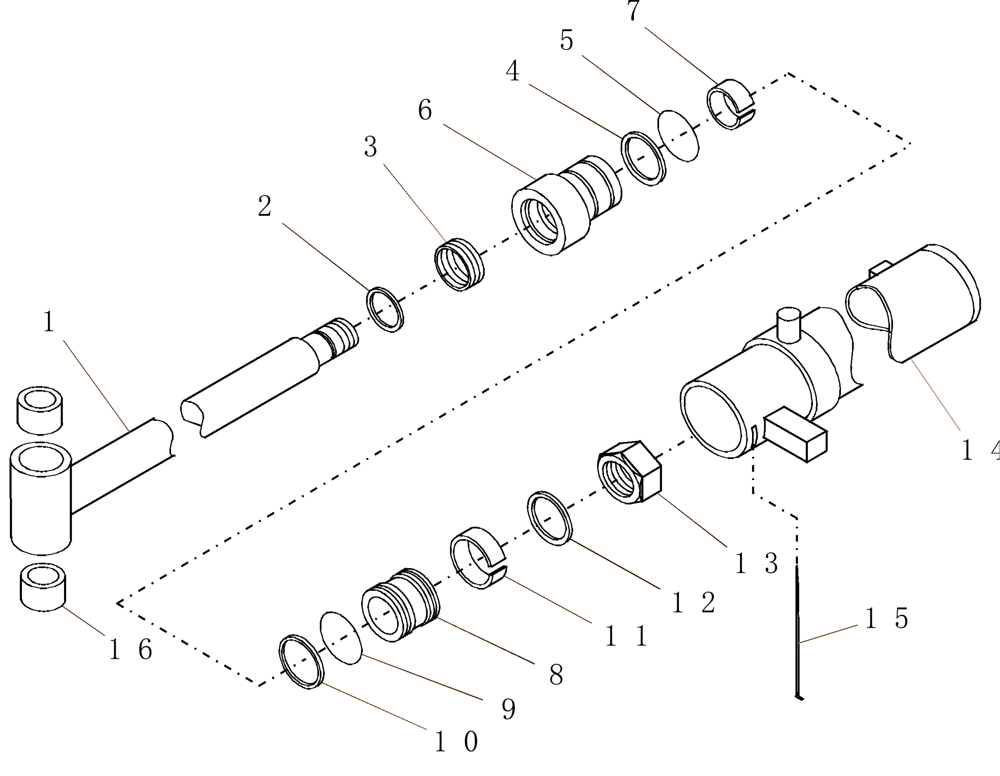

Запчасти Case IH BHX172 (41) - SWING CYLINDER

1

SML45662

ROD

Weldment, 1-3/8

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Wiper

1шт.

3

NSS

NOT SOLD SEPARAT

Seal, V-Cup

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

SML41488

CYLINDER HEAD

Head, Cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

8

SML44536

PISTON

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

10

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

12

SML445371

RING

Steel

1шт.

13

SML389983

LOCK NUT

Lock, G8, 1"-14

1шт.

14

CSE45660

TUBE

Cylinder, Weldment

1шт.

15

NSS

NOT SOLD SEPARAT

Lockwire

1шт.

16

SML452523

BUSHING

1 I.D. x 1.25 O.D.

4шт.

17

SML41555

REPAIR KIT

Kit, Repair, Includes Ref. 2-5, 9-11, & 15

1шт.
