Запчасти Case IH BHX1114 (27) - GRESEN VALVE V-10 - SML45251

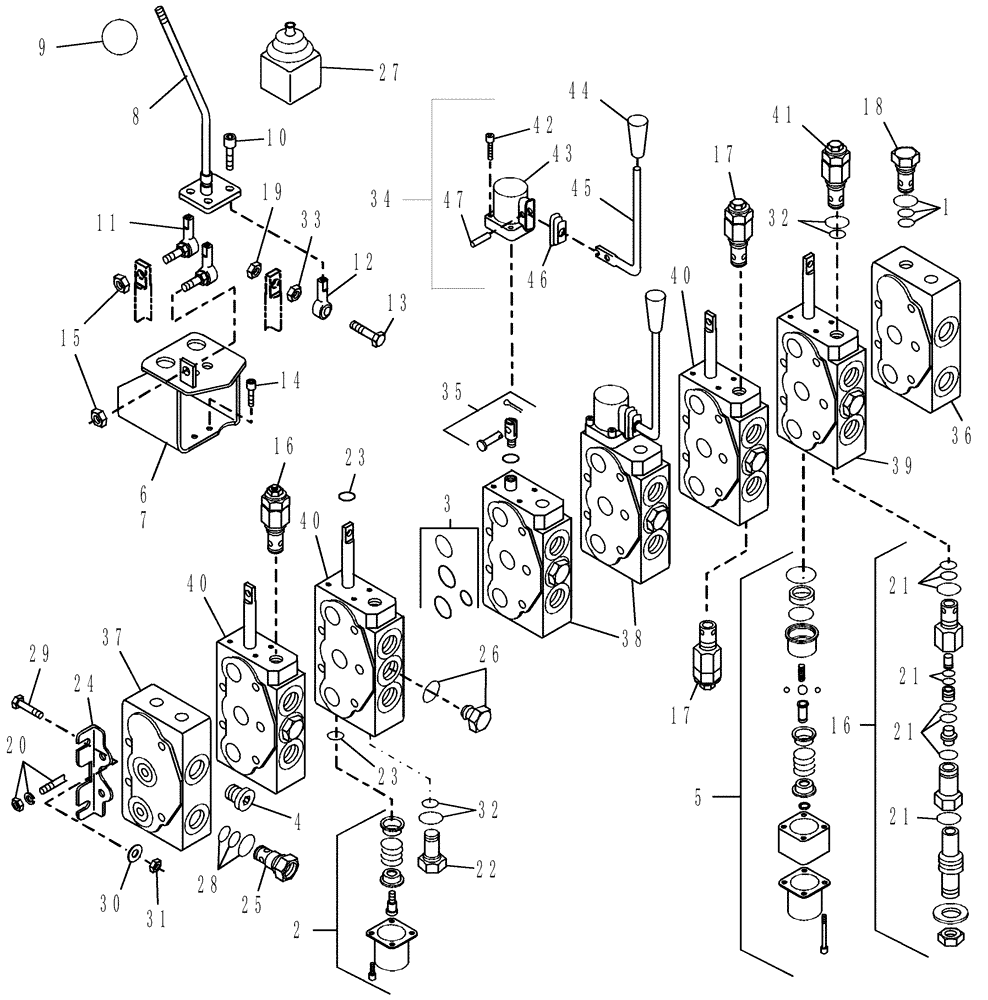

Схема запчастей Case IH BHX1114 - (27) - GRESEN VALVE V-10 - SML45251
16
22
18
16
46
45
43
21
37
27
14
39
10
17
28
6
21
21
30
20
25
13
2
1
32
42
12
3
5
33
47
29
31
40
11
36
40
35
26
7
24
15
8
41
34
23
32
19
23
4
9
38
40
17
21
44

Артикул

Название

Примечание

Количество

1

SML45014

SEAL KIT

Main Relief Cartridge

1шт.

2

SML46065

KIT

Spring Center Positioner Kit (New Style "B")

5шт.

3

SML45015

SEAL KIT

Body Section

7шт.

4

SML45013

PLUG

Port

1шт.

5

SML46066

KIT

Float Positioner Kit (New Style "B")

1шт.

6

SML447852

SUPPORT

Riser, Right

1шт.

7

SML447851

SUPPORT

Riser, Left (Not Shown)

1шт.

8

SML44778

HANDLE

2шт.

9

SML44279

KNOB

Ball

1шт.

10

SML389101

SCREW

Cap, Socket Head, 1/4"-28 x 3/4"

6шт.

11

SML260093

UNIVERSAL JOINT

Rod End, Assembly

4шт.

12

SML389005

BALL JOINT

Rod End

2шт.

13

SMLG454841

SCREW

Cap, 1/4-20 x 2, Grade 8

2шт.

14

SML389103

SCREW

Cap, SH, #10-24 x 1-1/2"

8шт.

15

86509309

NUT,1/4"-28, G5

G5, 1/4"-28

6шт.

16

SML45001

VALVE PRESSURE RELIE

Relief, Work Port, 2500 PSI

3шт.

17

SML45159

VALVE PRESSURE RELIE

Relief, Work Port, 2500 PSI

2шт.

18

SML45121

VALVE PRESSURE RELIE

Relief, Main 2500 PSI

1шт.

19

SML44999

SPOOL

Extension

4шт.

20

SML45010

KIT

Stud Kit

1шт.

21

SML45004

SEAL KIT

Relief (Work relief cartridges)

1шт.

22

SML44993

PLUG

1шт.

23

SML45011

SEAL KIT

Spool (Includes 2 Seals)

6шт.

24

SML45019

BRACKET

Mounting Bracket

2шт.

25

SML44996

SLEEVE

Power Beyond Sleeve (Optional)

1шт.

26

SML45000

KIT

Plug Kit, Load Check

6шт.

27

SML44855

BOOT

1шт.

28

SML45012

SEAL KIT

Power Beyond

1шт.

29

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

30

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

31

9635082

NUT,5/16" - 18, Gr 5

Lock, G5, 5/16"-18

4шт.

32

SML45005

SEAL KIT

Work Port Plug

2шт.

33

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

34

SML44998

KIT

Handle Kit

2шт.

35

SML45002

KIT

Clevis & Pin Kit

2шт.

36

SML45006

COVER

Inlet Cover

1шт.

37

SML45018

COVER

Outlet Cover

1шт.

38

SML45017

HYD VALVE SECTION

Valve Section, 4-Way, 3-Position

2шт.

39

SML46141

HYD VALVE SECTION

Valve Section, 4-Position Float

1шт.

40

SML46143

HYD VALVE SECTION

Valve Section, with long spool

3шт.

41

SML45144

VALVE PRESSURE RELIE

Valve, Pressure Relief, 3000 PSI

1шт.

42

SML389105

SCREW

Cap, Socket Head, #10-24 x 1

4шт.

43

SML49438

BRACKET

Handle

1шт.

44

SML49436

KNOB

Handle

1шт.

45

SML49437

LEVER

Rod, Handle

1шт.

46

SML49435

BOOT

Dust

1шт.

47

SML60744

DOWEL

Pin, Dowel, 3/16 x .50

1шт.

Выбрано товаров: 47
