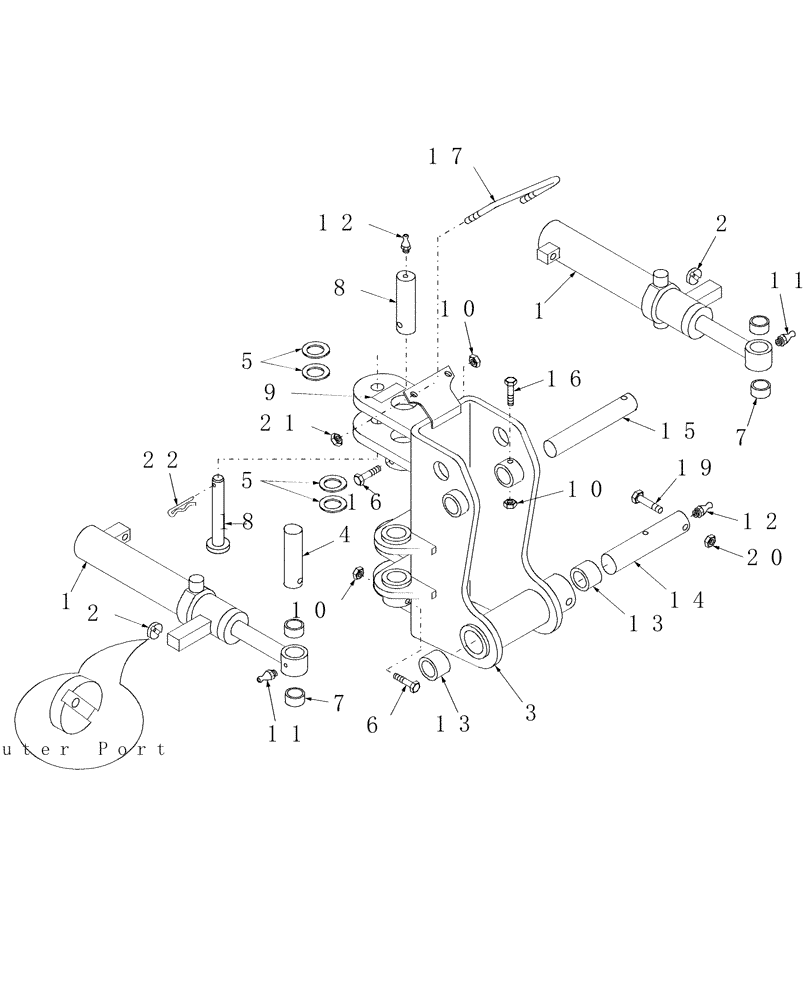

Запчасти Case IH BHX1114 (15) - SWING POST & SWING CYLINDERS

1

CSE44657

CYLINDER

Swing, with Bushings

2шт.

2

SML44942

RESTRICTOR VALVE

Restrictor, .078

2шт.

3

CSE45061

FRAME

Swing, Less Bushings

1шт.

4

SML363681

PIN

Swing Cylinder, 1-1/4 x 5-1/2

2шт.

5

SML45098

WASHER

Thrust Washer

6шт.

6

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

Hex, 3/8"-16 x 2-1/2", G5

2шт.

7

SML604217

DRIVE BUSHING

Bushing, 1.50 O.D. X 1.25 I.D. x .88

4шт.

8

SML45139

PIN

Swing Post, 1-3/4 x 5.22

2шт.

9

SML44909

DECAL

Swing Lock

1шт.

10

9637692

NUT,3/8"-16, GB

NUT, LOCK, GC, 3/8"-16

2шт.

11

SML60754

LUBE NIPPLE

Fitting, Grease, 1/4-28

2шт.

12

SML60752

LUBE NIPPLE

Fitting, Grease, 1/8 NPT

3шт.

13

SML44373

BUSHING

Machine

2шт.

14

SML45140

PIN

Boom Base, 1-1/2 x 11

1шт.

15

SML3636812

PIN

Boom Cylinder Base, 1-1/4 x 6-3/4

1шт.

16

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

1шт.

17

SML45075

CLAMP

"U" Clamp, 5/16-18

1шт.

18

SML4190219

PIN

Clevis Pin, 1" x 4"

1шт.

19

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

20

9636698

NUT,1/2"-13, GB

NUT, LOCK, GC, 1/2"-13

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

Lock, G5, 5/16"-18

2шт.

22

PL

PROCURE LOCALLY

Hair Pin Clip

1шт.
