Запчасти Case IH BHX1114 (63) - STANDARD, HEAVY DUTY, GRAVE & MUCK BUCKETS

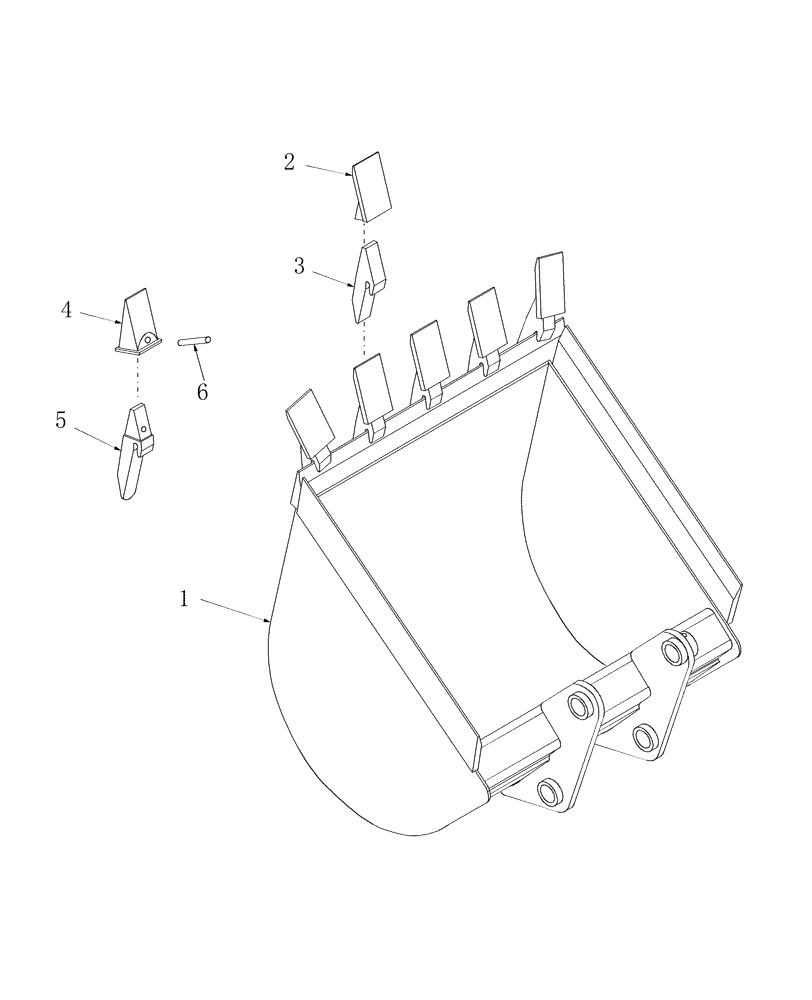

Схема запчастей Case IH BHX1114 - (63) - STANDARD, HEAVY DUTY, GRAVE & MUCK BUCKETS
5
2
4
1
3
6

Артикул

Название

Примечание

Количество

1

W0

ORDER WHOLEGOODS

Standard Bucket, 12", 3 Teeth, 1.24 Cu Ft-Heaped

1шт.

9864015, 716404001, 716399016

1шт.

1

W0

ORDER WHOLEGOODS

Standard Bucket, 16", 3 Teeth, 1.76 Cu Ft-Heaped

1шт.

9864017, 716406001, 716400016

1шт.

1

W0

ORDER WHOLEGOODS

Heavy Duty Bucket, 16", 3 Teeth, 1.76 Cu Ft-Heaped

1шт.

716494006, 716494056

1шт.

1

W0

ORDER WHOLEGOODS

Standard Bucket, 18", 4 Teeth, 2.02 Cu Ft-Heaped

1шт.

716434006, 716434026

1шт.

1

W0

ORDER WHOLEGOODS

Standard Bucket, 24", 5 Teeth, 2.82 Cu Ft-Heaped

1шт.

9864019, 716408001, 716401016

1шт.

1

W0

ORDER WHOLEGOODS

Heavy Duty Bucket, 24", 5 Teeth, 2.82 Cu Ft-Heaped

1шт.

716493006, 716493036

1шт.

1

W0

ORDER WHOLEGOODS

Grave Bucket, 36", 6 Teeth, 4.00 Cu Ft-Heaped

1шт.

716435006, 716435036

1шт.

1

W0

ORDER WHOLEGOODS

Muck Bucket, 36", 6 Teeth, 4.00 Cu Ft-Heaped

1шт.

716436006, 716436026

1шт.

2

SML448671

BUCKET TOOTH

Tooth (Standard Buckets)

1шт.

3

SML41703

SHANK

(Standard Buckets)

1шт.

4

SML45176

BUCKET TOOTH

Tooth (Heavy Duty Buckets)

1шт.

5

SML45175

SHANK

(Heavy Duty Buckets)

1шт.

6

87577

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

PIN, LOCK, 3/8" x 2", Slotted

1шт.

Выбрано товаров: 21
