Запчасти Case IH BHX1114 (50) - STABILIZER CYLINDER 3" (KP) - 44687

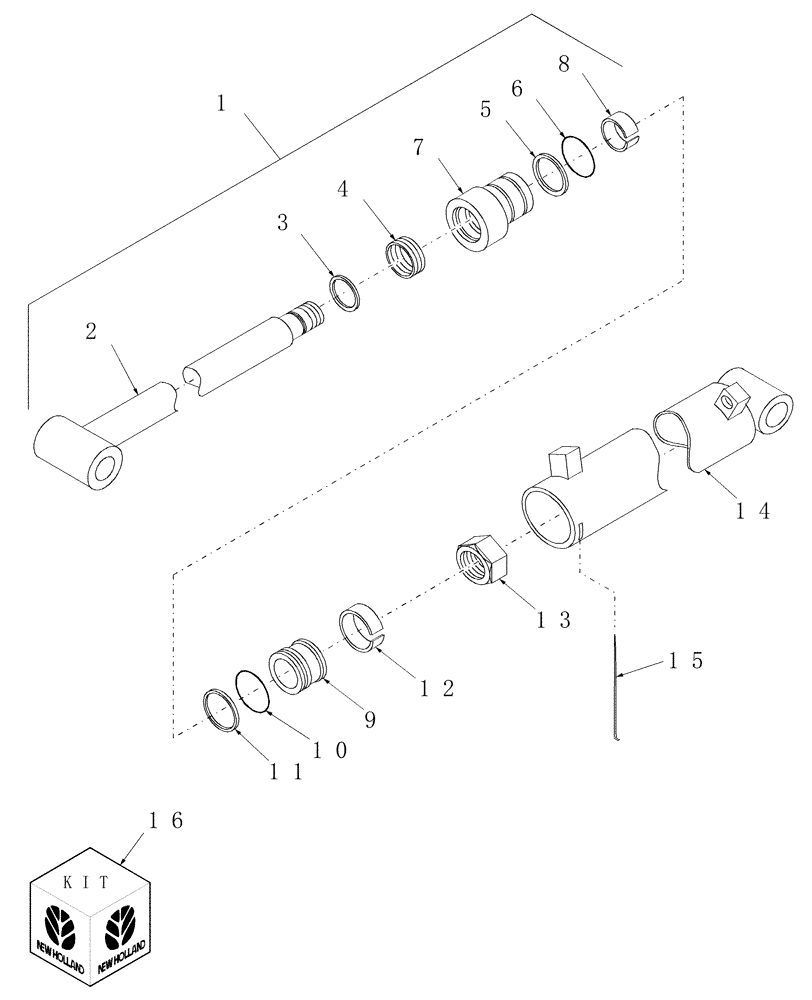

Схема запчастей Case IH BHX1114 - (50) - STABILIZER CYLINDER 3" (KP) - 44687
15
8
1
kit
3
13
4
2
9
11
10
5
12
14
16
7
6

Артикул

Название

Примечание

Количество

1

CSE44687

CYLINDER

Stabilizer

1шт.

2

SML45244

ROD

Weldment, 1-1/2"

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Wiper

1шт.

Included in Seal Kit (SML41669).

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, V-Cup

1шт.

Included in Seal Kit (SML41669).

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

Included in Seal Kit (SML41669).

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Included in Seal Kit (SML41669).

1шт.

7

SML41668

CYLINDER HEAD

Head, Cylinder

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

Included in Seal Kit (SML41669).

1шт.

9

SML37079

PISTON

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

Included in Seal Kit (SML41669).

1шт.

11

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

Included in Seal Kit (SML41669).

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

Included in Seal Kit (SML41669).

1шт.

13

SML329032

LOCK NUT

Lock, G8, 1"-14

1шт.

14

CSE45246

TUBE

Cyinder Tube, Weldment

1шт.

15

NSS

NOT SOLD SEPARAT

Lockwire

1шт.

Included in Seal Kit (SML41669).

1шт.

16

SML41669

SEAL KIT

Repair Kit, Includes: Ref. 3, 4, 5, 6, 8, 10, 11, 12 & 15

1шт.

Выбрано товаров: 25
