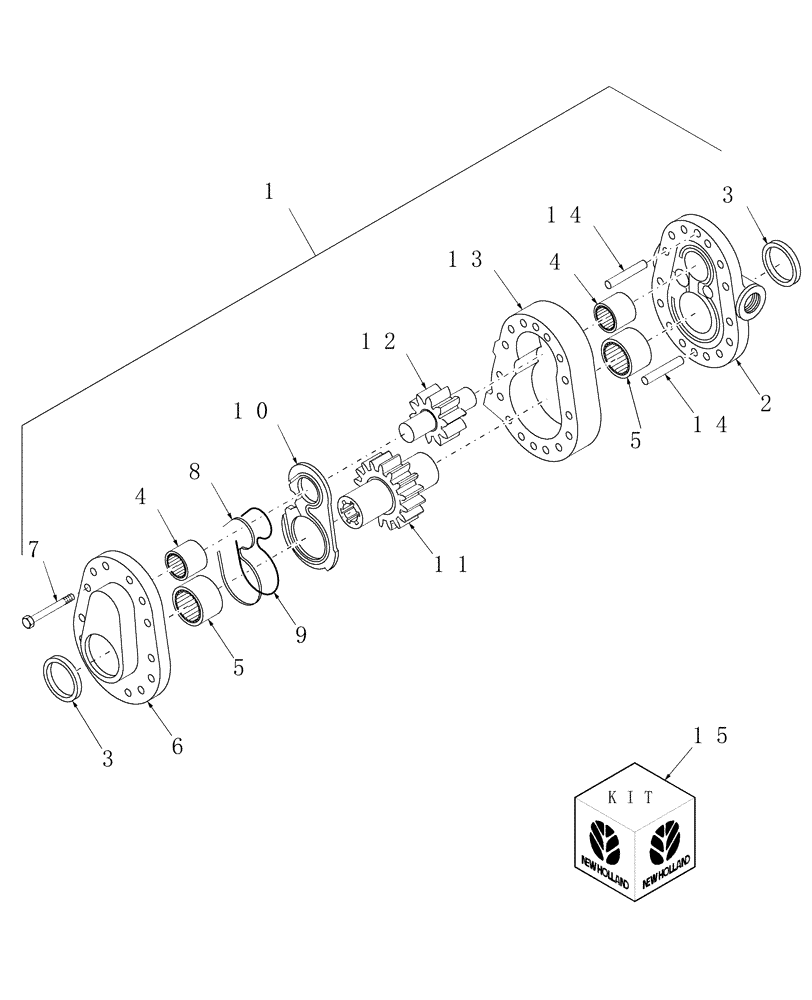

Запчасти Case IH BHX1114 (42) - PUMP SML45250

1

SML45250

HYDRAULIC PUMP

Pump

1шт.

2

SML28977

COVER

Back

1шт.

3

V32433

SEAL

Shaft

2шт.

Included in Seal Repair Kit (SML31613).

1шт.

4

SML28989

BEARING ASSY

Bearing, Roller

2шт.

5

SML28990

BEARING ASSY

Bearing, Roller

2шт.

6

SML28974

COVER

Front

1шт.

7

PL

PROCURE LOCALLY

Screw, Cap, 3/8-16 x 3

14шт.

8

SML28982

GASKET

Seal Protector

1шт.

Included in Seal Repair Kit (SML31613).

1шт.

9

9840056

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

4.734" ID x .139" Thk

1шт.

Included in Seal Repair Kit (SML31613).

1шт.

10

SML28975

PLATE

Wear

1шт.

11

SML28985

GEAR

and Shaft Assembly, Drive

1шт.

12

SML28984

GEAR

and Shaft Assembly, Idler

1шт.

13

SML45394

BODY

Center

1шт.

14

SML28986

PIN

Dowel

2шт.

15

SML31613

SEAL KIT

Seal Repair Kit, Includes: Ref. 3, 8 & 9

1шт.
