Запчасти Case IH BHX1114 (39) - HOSE KIT 715392006, DX48 AND DX55 TRACTORS

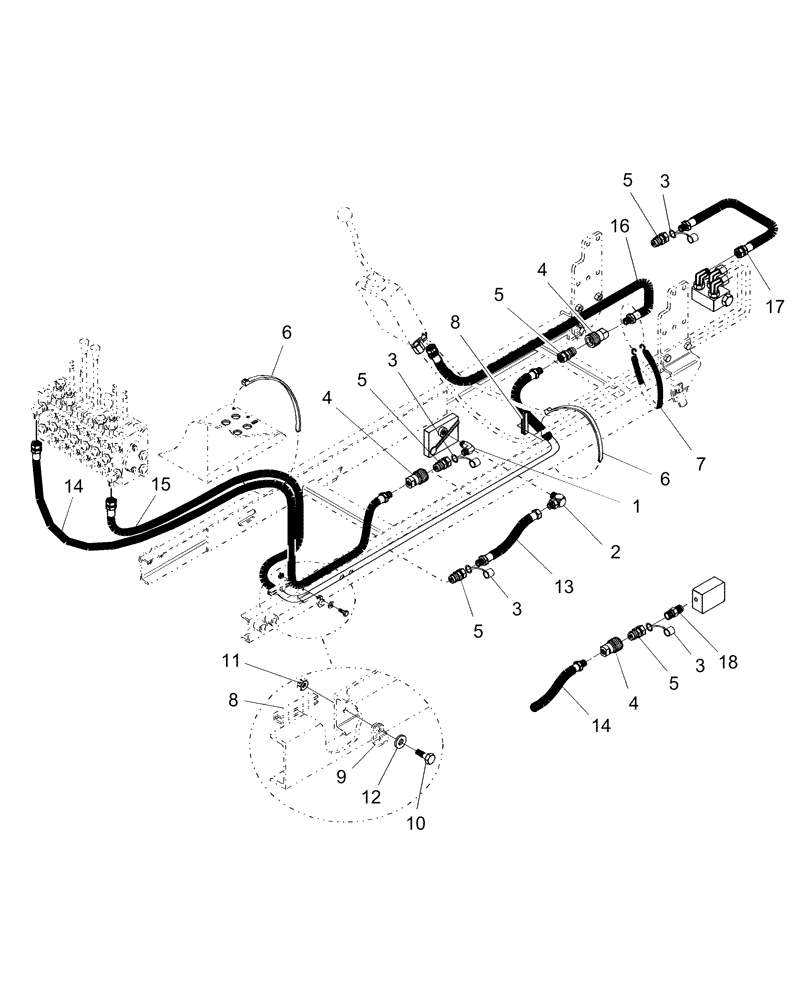

Схема запчастей Case IH BHX1114 - (39) - HOSE KIT 715392006, DX48 AND DX55 TRACTORS
6
9
6
2
5
5
5
14
5
4
5
16
4
3
15
11
14
18
1
8
8
17
12
10
4
13
3
7
3
3

Артикул

Название

Примечание

Количество

1

SML514341

FITTING

Elbow 90 Degree, 3/16-16

1шт.

2

SML396098

ELBOW

Fitting, Elbow, 90 Degree, 3/8-18

1шт.

3

86583555

CAP

Dust, 1/2"

2шт.

4

SML614710

COUPLING

Female, 1/2"

2шт.

5

86581680

QUICK MALE COUPLING

Connector, Male, 1/2"

3шт.

6

SML81376

CABLE TIE

Cable, Tie Strap, 5/16 x 11"

2шт.

7

86581718

SECURING STRAP

Tarp Strap

1шт.

8

86581645

PROTECTION

Trim, Plastic, 4"

2шт.

9

SML82226

CLAMP

Tube

1шт.

10

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

Hex, 5/16"-18 x 1-1/4", G5

1шт.

11

86629544

NUT,5/16” – 18, GR B

NUT LOCK, 5/16"-18, GB

1шт.

12

87362

WASHER,5/16" SAE

Flat, 5/16"

1шт.

13

SML428275

HOSE

1/2 x 15"

1шт.

14

SML428273

HOSE

1/2 x 73"

1шт.

15

SML487942

HOSE

1/2 x 120"

1шт.

16

SML429234

HOSE

1/2 x 30"

1шт.

17

SML429235

HOSE

1/2 x 18"

1шт.

18

SML392807

HYD CONNECTOR

Fitting, Straight 3/8-18 x 3/4-16

1шт.

Выбрано товаров: 18
