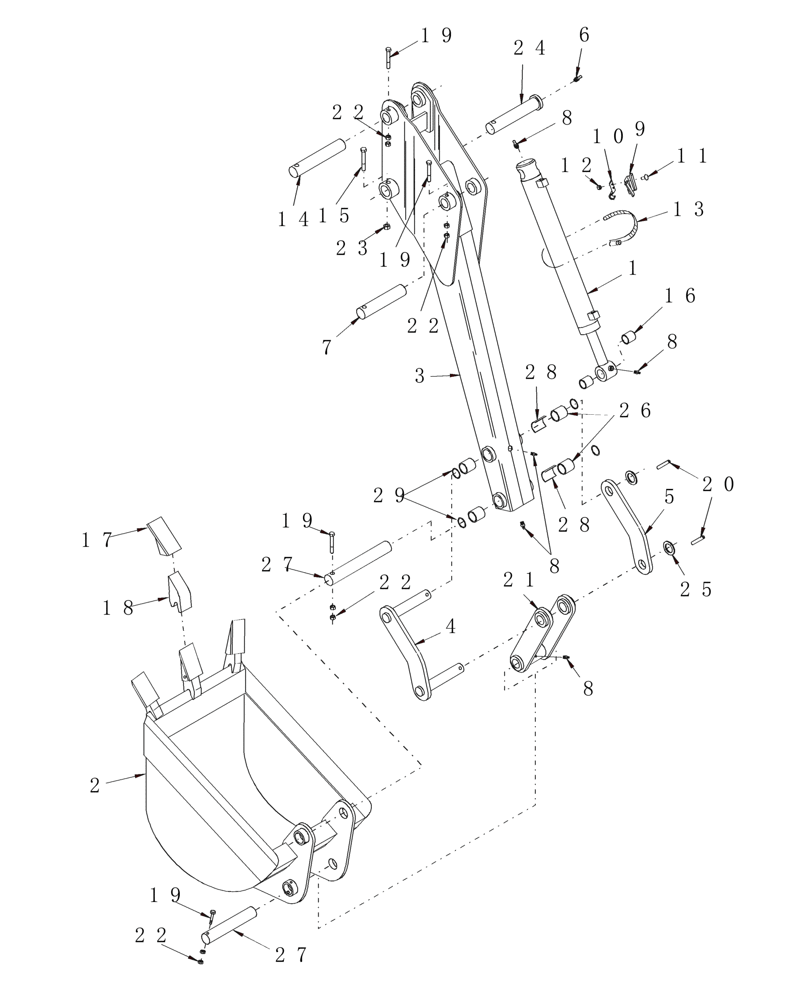

Запчасти Case IH BHX1102 (22) - DIPPERSTICK & BUCKET

1

CSE48250

CYLINDER,Double Acting, 488.95mm Stroke

Bucket

1шт.

2

W0

ORDER WHOLEGOODS

Bucket, Complete, 12" Heavy Duty, w/3 teeth (716433026)

1шт.

2

W0

ORDER WHOLEGOODS

Bucket, Complete, 16" Heavy Duty, w/3 teeth (716494046)

1шт.

2

W0

ORDER WHOLEGOODS

Bucket, Complete, 18" Heavy Duty, w/4 teeth (716407016)

1шт.

2

W0

ORDER WHOLEGOODS

Bucket, Complete, 24" Heavy Duty, w/5 teeth (716493026)

1шт.

3

CSE48170

DIPPER

stick

1шт.

4

CSE48263

ARM

Toggle

1шт.

5

CSE48210

PLATE ASSY.

Plate, Link, Arm, Toggle

1шт.

6

PL

PROCURE LOCALLY

Fitting, Grease, 1/8" NPT

1шт.

7

SML363682

PIN

Cylinder Base, 1.25 x 6.50"

1шт.

8

87414

LUBE NIPPLE,1/4" - 28

NIPPLE, LUBE, 1/4"-28 x .56" lg, Drive

5шт.

9

SML44793

SOCKET

Slow Moving Vehicle

1шт.

10

SML44794

BRACKET

Mounting, Slow Moving Vehicle

1шт.

11

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

Bolt, Carriage, Short NK, 5/16"-18 x 3/4", G5

2шт.

12

9635082

NUT,5/16" - 18, Gr 5

G5, 5/16"-18

2шт.

13

SML60762

CLAMP

Hose

1шт.

14

SML3636815

PIN

1.25 x 7.81"

1шт.

15

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

Screw, Cap, HH, G5, 1/2"-13 x 3"

1шт.

16

SML474054

BUSHING

2шт.

17

SML448671

BUCKET TOOTH

Tooth, Bucket, 1-3/4" Wide

1шт.

18

SML41703

SHANK

Bucket, 1" Wide

1шт.

19

PL

PROCURE LOCALLY

Screw, Cap, 3/8-16 x 2.75", Grade 8

4шт.

20

86581648

ROLL PIN

Pin, Spring, 3/8 x 2"

2шт.

21

CSE48208

LINK

Bucket

1шт.

22

9637692

NUT,3/8"-16, GB

NUT, LOCK, GC, 3/8"-16

8шт.

23

9636698

NUT,1/2"-13, GB

NUT, LOCK, GC, 1/2"-13

1шт.

24

SML48213

PIN

1.50 x 8.06"

1шт.

25

SML425778

BUSHING

Machine, 1.25" ID x 1-7/8" OD

2шт.

26

86582483

BUSHING

Sleeve, 1-1/4" x 1-1/2"

4шт.

27

SML3636816

PIN

1.25 x 8.50"

2шт.

28

SML482712

SPACER

2шт.

29

SML602227

SEAL

1.25" I.D. x 1.50" O.D.

4шт.
