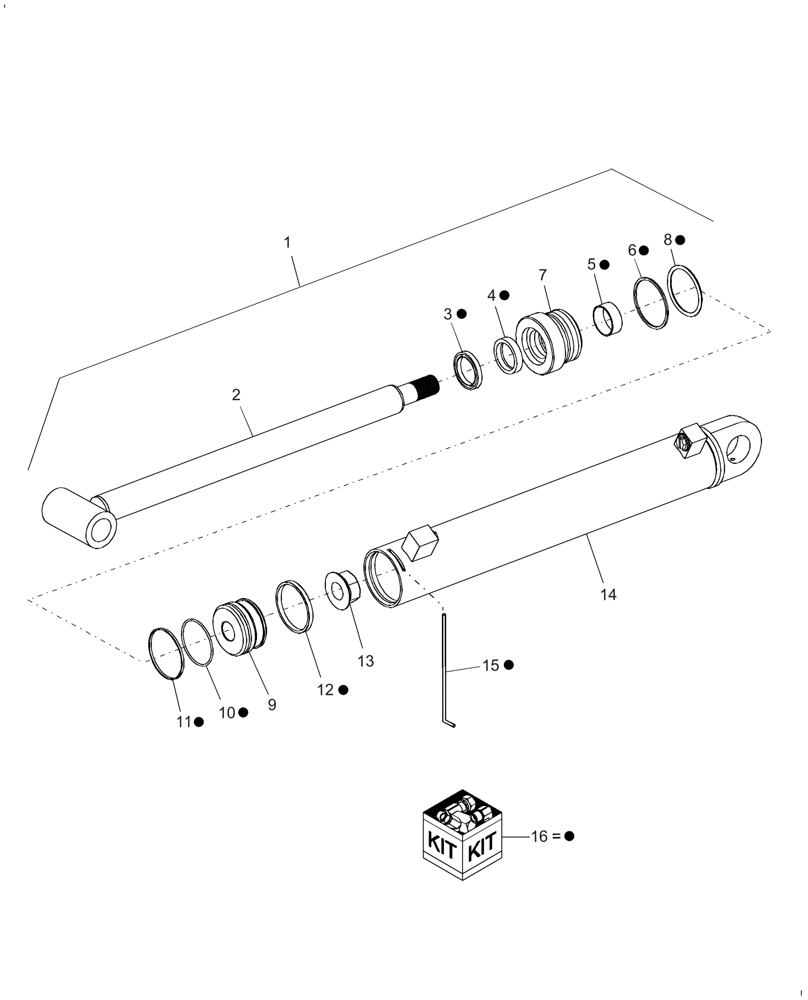

Запчасти Case IH BH114 (003.03) - CYLINDER ASSEMBLY - DIPPER (35) - HYDRAULIC SYSTEMS

1

SML53979

HYDRAULIC CYLINDER

Dipper Includes: Ref. 2-16, BH90

2шт.

1

SML53764

CYLINDER

1.50" DIA Dipper Includes: Ref. 2-16, BH102

2шт.

1

SML54033

CYLINDER

CYLINDER, Dipper Includes: Ref. 2-16, BH114

2шт.

2

SML53980

ROD

BH90

1шт.

2

SML53765

ROD

BH102

1шт.

2

SML54034

ROD

BH114

1шт.

3

NSS

NOT SOLD SEPARAT

Seal, Dust

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, U-Cup

1шт.

5

NSS

NOT SOLD SEPARAT

Seal, Piston Wiper

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

7

SML40437

CYLINDER HEAD

BH102

1шт.

8

NSS

NOT SOLD SEPARAT

O-ring

1шт.

7

SML41668

CYLINDER HEAD

BH90, BH114

1шт.

9

SML37079

PISTON

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

12

NSS

NOT SOLD SEPARAT

Seal, Piston Wiper

1шт.

13

SML329032

LOCK NUT

Lock Flange 1-14

1шт.

14

SML53982

CYLINDER

Tube, BH90

1шт.

14

SML53768

TUBE

Cylinder, BH102

1шт.

14

SML54036

TUBE

Cylinder, BH114

1шт.

15

NSS

NOT SOLD SEPARAT

Lockwire

1шт.

16

SML41669

SEAL KIT

Includes: Ref. 3-6, 8, 10-12 & 15, BH90, BH114

1шт.

16

SML40456

SEAL KIT

Includes: Ref. 3-6, 8, 10-12 & 15, BH102

1шт.
