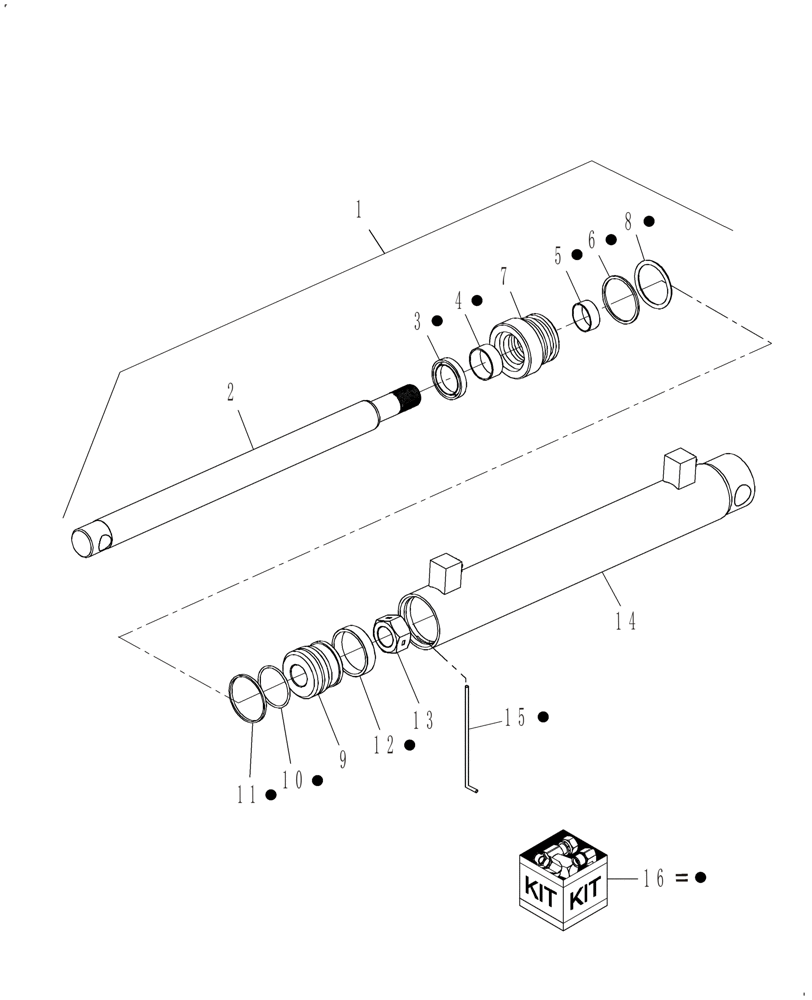

Запчасти Case IH BH114 (001.01) - CYLINDER ASSEMBLY - STABILIZER (35) - HYDRAULIC SYSTEMS

1

SML53741

CYLINDER

Stabilizer Includes: Ref. 2-16

2шт.

2

SML53742

ROD

1шт.

3

NSS

NOT SOLD SEPARAT

Seal, Dust

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, U-Cup

1шт.

5

NSS

NOT SOLD SEPARAT

Seal, Piston Wiper

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

7

SML41488

CYLINDER HEAD

1шт.

8

NSS

NOT SOLD SEPARAT

O-ring

1шт.

9

SML35519

PISTON

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

12

NSS

NOT SOLD SEPARAT

Seal, Piston Wiper

1шт.

13

SML389983

LOCK NUT

Lock Flange 1-14

1шт.

14

SML53743

TUBE

Tube

1шт.

15

NSS

NOT SOLD SEPARAT

Lockwire

1шт.

16

SML41555

REPAIR KIT

Includes: Ref. 3-6, 8, 10-12 & 15

1шт.
