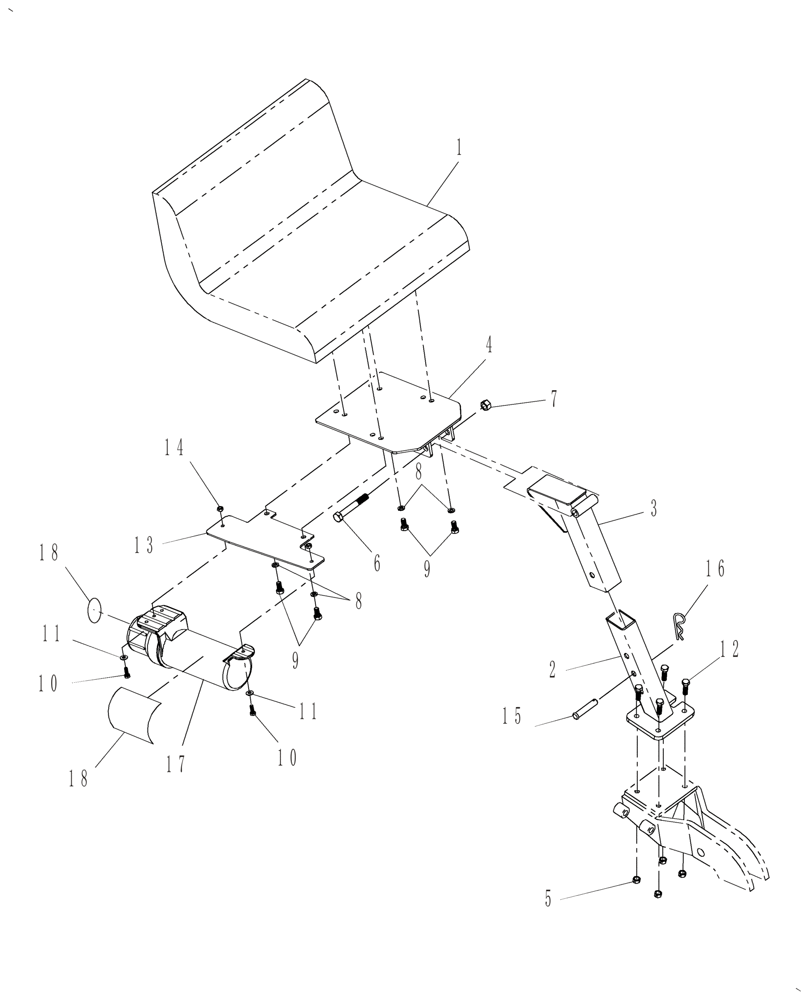

Запчасти Case IH BH114 (007) - SEAT ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

CSE53779

SEAT

1шт.

2

CSE53713

PEDESTAL

Lower Seat

1шт.

3

CSE53708

SUPPORT TUBE

Seat

1шт.

4

SML53711

BASE

Seat

1шт.

5

SML418403

NUT

Lock 3/8-16

4шт.

6

SML4183866

SCREW

Cap, 1/2-13x3.50 GR5

1шт.

7

SML418405

LOCK NUT

1/2-13

1шт.

8

SML418372

WASHER

Lock 5/16

4шт.

9

SML4183826

SCREW

Cap 5/16-18x.75 GR5

4шт.

10

SML4183820

SCREW

Cap 1/4-20x.75 GR5

2шт.

11

SML425026

WASHER

Flat 1/4

2шт.

12

SML418389

SCREW

Cap, 3/8-16x1.25 GR5

4шт.

13

SML53714

PLATE

Canister Mount

1шт.

14

SML4184011

NUT

Lock 1/4-20

2шт.

15

SML4190229

CLEVIS PIN

1шт.

16

SML419011

PIN, SPLIT (COTTER)

PIN, COTTER

1шт.

17

SML49722

HOLDER

W/Cap Includes: Ref. 18

1шт.

18

SML49750

DECAL

Operator's Manual

1шт.
