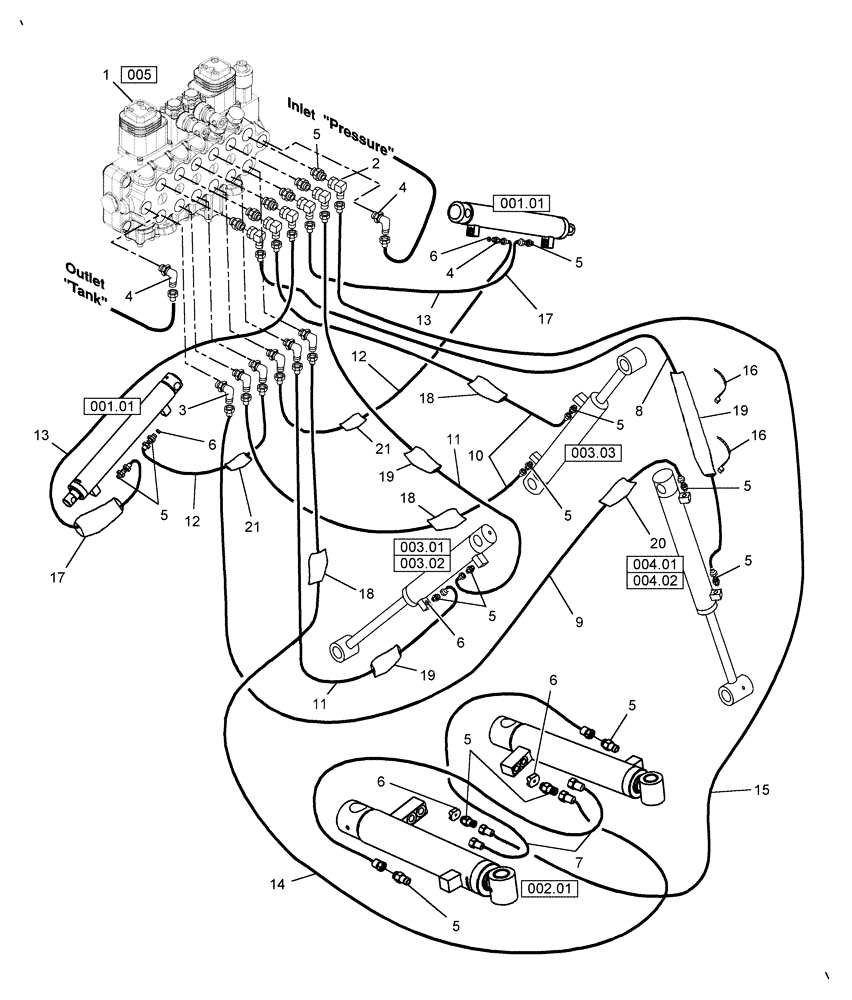

Запчасти Case IH BH114 (006) - HYDRAULIC SCHEMATIC (35) - HYDRAULIC SYSTEMS

1

SML53389

VALVE

2150 psi, BH90

1шт.

1

SML53388

VALVE

2500 psi, BH102, BH114

1шт.

2

SML341283

ELBOW

Fitting, 90 Degree

6шт.

3

SML328451

ELBOW

Fitting, 90 Degree

6шт.

4

SML328452

ELBOW

Fitting, 90 Degree

2шт.

5

SML328441

ADAPTER

Fitting

20шт.

6

SML47879

REDUCER

Plate

3шт.

7

SML482821

HOSE

1/4 x 24

2шт.

8

SML4828120

HOSE

1/4x138, BH90

1шт.

8

SML4828112

HOSE

1/4X144, BH102

1шт.

8

SML4828122

HOSE

1/4x156, BH114

1шт.

9

SML4828119

HOSE

1/4x112, BH90

1шт.

9

SML4828111

HOSE

1/4X118, BH102

1шт.

9

SML4828123

HOSE

1/4x130, BH114

1шт.

10

SML4828121

HOSE

1/4x91, BH90

2шт.

10

SML4828113

HOSE

1/4x94, BH102

2шт.

10

SML4828124

HOSE

1/4x100, BH114

2шт.

11

SML482814

HOSE

1/4 x 72, BH90, BH102

2шт.

11

SML4828125

HOSE

1/4x75, BH114

2шт.

12

SML482819

HOSE

1/4x38

2шт.

13

SML482815

HOSE

1/4 x 54

2шт.

14

SML4828117

HOSE

1/4x29

1шт.

15

SML4828118

HOSE

1/4x34

1шт.

16

SML81371

STRAP

Adjustable 3/16x11

13шт.

17

SML3485333

SLEEVE

Nylon 38"

2шт.

18

SML3485378

SLEEVE

Nylon 72"

2шт.

19

SML3485323

SLEEVE

Nylon 47"

3шт.

20

SML3485322

SLEEVE

Nylon 27"

1шт.

21

SML3485336

SLEEVE

Nylon 22"

2шт.
