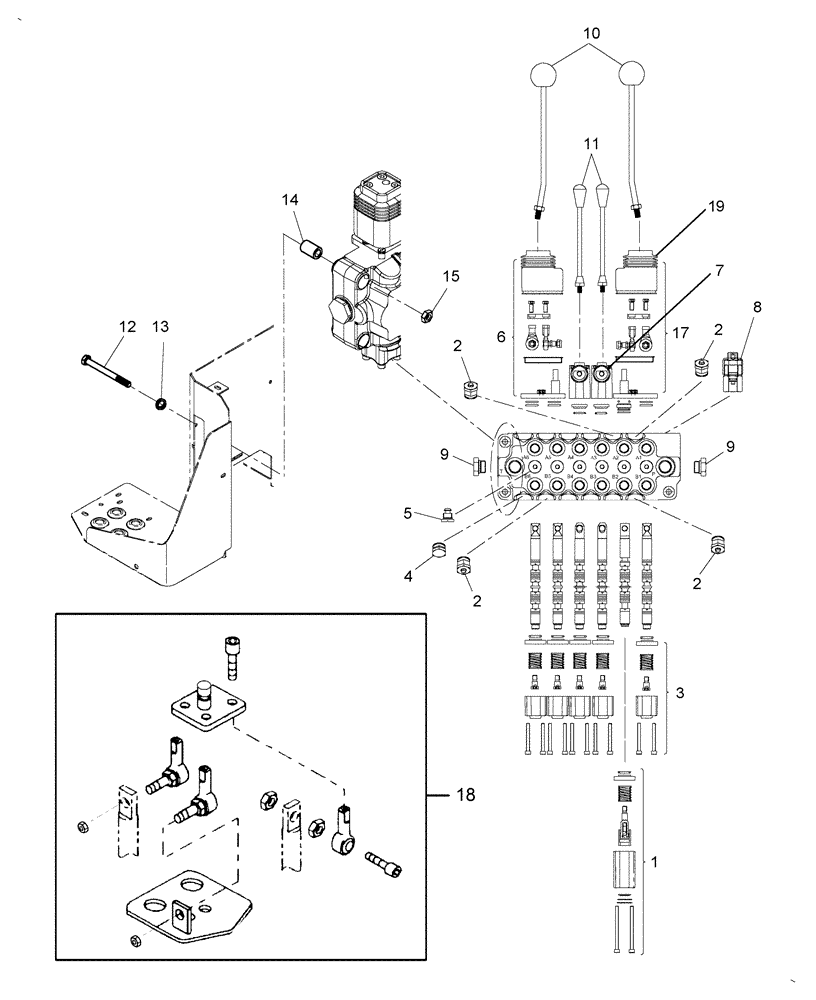

Запчасти Case IH BH114 (005) - VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

SML54361

PERMANENT DETENT KIT

4th Position

1шт.

2

SML54370

VALVE

Antishock (180-A Bar), BH90

6шт.

2

SML54362

VALVE

Antishock (180-A-Bar), BH102, BH114

6шт.

3

SML54363

SPOOL

Return Actio

5шт.

4

SML54364

FIP KIT

Plug

1шт.

5

SML54365

CHECK VALVE

6шт.

6

SML54366

JOYSTICK CONTROL KIT

1шт.

7

SML54367

KIT

Kit, Protected Lever (H001)

1шт.

8

SML54371

VALVE

Direct Acting Relief (170 BAR), BH90

1шт.

8

SML54368

VALVE

Direct Acting Relief (170 BAR), BH102, BH114

1шт.

9

SML54369

FIP KIT

Plug 3/4"16 UNG

2шт.

10

SML53788

LEVER

Joystick

2шт.

11

SML53877

HANDLE

Stabilizer

2шт.

12

SML4183880

SCREW

Cap 5/16-18x3.25 GR5

3шт.

13

SML425027

WASHER

Flat 1/2

3шт.

14

SML53716

SPACER

.62 OD x .39 ID x .94 LG

3шт.

15

SML418402

NUT

Lock 5/16-18

3шт.

16

SML54407

SEAL KIT

1шт.

17

SML54413

JOYSTICK CONTROL KIT

1шт.

18

SML56006

KIT

Rod End (Contains Rod End & Hardware For Rod End)

2шт.

19

SML56005

BOOT

Rubber Joystick

2шт.
