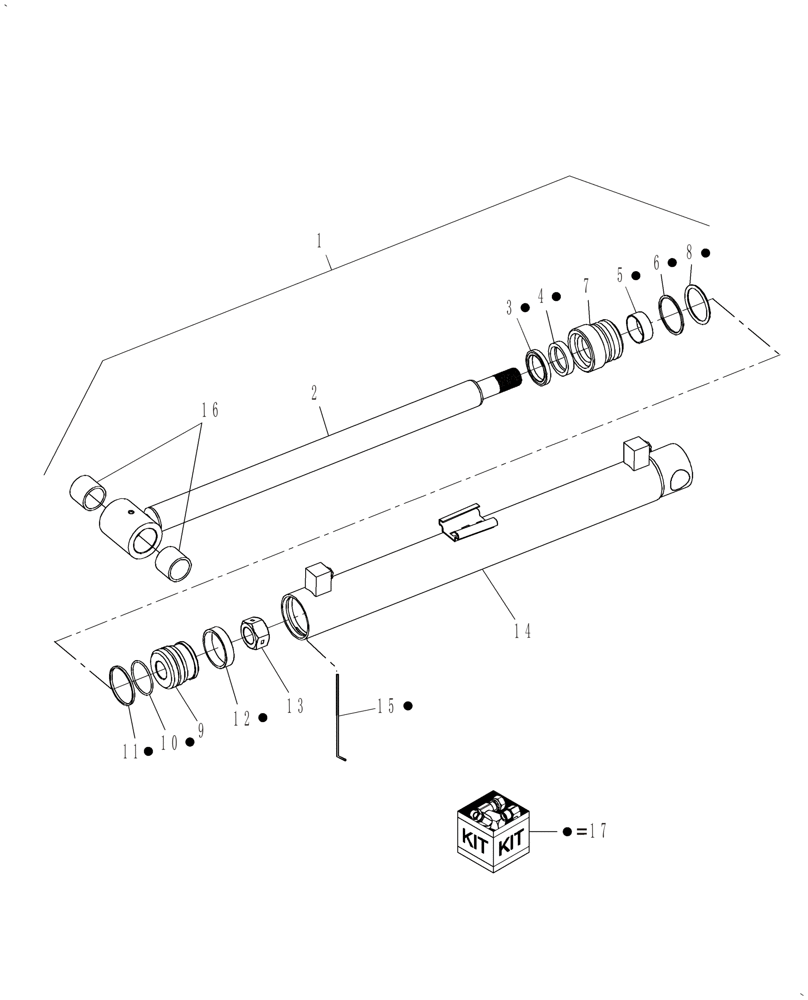

Запчасти Case IH BH114 (004.02) - CYLINDER ASSEMBLY - BUCKET (35) - HYDRAULIC SYSTEMS

1

SML53773

BUCKET CYLINDER

Swing Includes: Ref. 2-17

2шт.

2

SML53774

ROD

1шт.

3

NSS

NOT SOLD SEPARAT

Seal, Dust

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, U-Cup

1шт.

5

NSS

NOT SOLD SEPARAT

Seal, Piston Wiper

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

7

SML53777

CYLINDER HEAD

1шт.

8

NSS

NOT SOLD SEPARAT

O-ring

1шт.

9

SML35519

PISTON

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

12

NSS

NOT SOLD SEPARAT

Seal, Piston Wiper

1шт.

13

SML389983

LOCK NUT

Lock 7/8-14

1шт.

14

SML53778

TUBE

Cylinder

1шт.

15

NSS

NOT SOLD SEPARAT

Lockwire

1шт.

16

SML474054

BUSHING

Sleeve

1шт.

17

SML53795

REPAIR KIT

Includes: Ref. 3-6, 8, 10-12 & 15

1шт.
