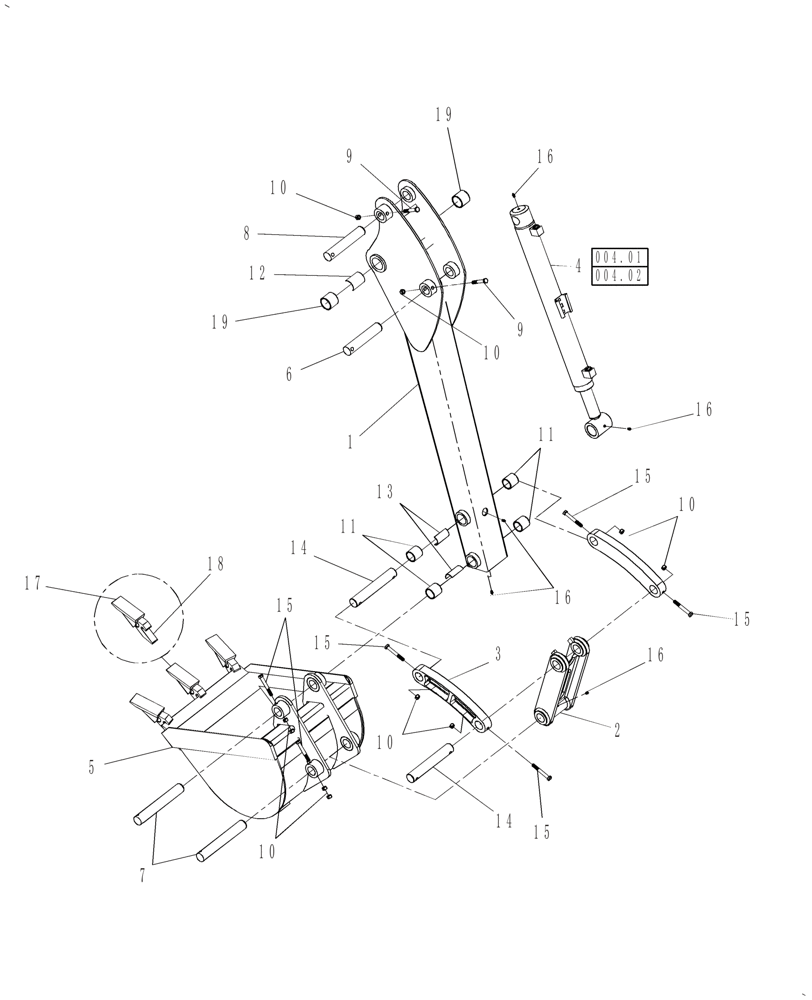

Запчасти Case IH BH102 (004) - DIPPERSTICK & BUCKET ASSEMBLY (84) - BOOMS, DIPPERS & BUCKETS

1

CSE53972

DIPPER

Stick, BH90

1шт.

1

CSE53731

DIPPER

Stick, BH102

1шт.

1

CSE54020

FRAMEWORK

Stick, BH114

1шт.

2

SML53740

LINK

Bucket Inner 4 Bar

1шт.

3

SML53739

LINK

Guide

2шт.

4

SML53986

BUCKET CYLINDER

BH90

1шт.

4

SML53773

BUCKET CYLINDER

BH102, BH114

1шт.

5

W0

ORDER WHOLEGOODS

Bucket 9", 2 Teeth, .87 Cubic Ft Heaped Standard

1шт.

716398016

1шт.

5

W0

ORDER WHOLEGOODS

Bucket 12", 3 Teeth, 1.24 Cubic Ft Heaped Standard

1шт.

716399026

1шт.

5

W0

ORDER WHOLEGOODS

Bucket 16", 3 Teeth, 1.76 Cubic Ft Heaped Heavy Duty

1шт.

716494066

1шт.

5

W0

ORDER WHOLEGOODS

Bucket 18", 4 Teeth, 2.02 Cubic Ft Heaped Standard

1шт.

716434036

1шт.

5

W0

ORDER WHOLEGOODS

Bucket 24", 5 Teeth, 2.8 Cubic Ft Heaped Heavy Duty

1шт.

716493046

1шт.

5

W0

ORDER WHOLEGOODS

Bucket 36", 6 Teeth, 4.0 Cubic Ft Heaped Muck

1шт.

716436036

1шт.

5

W0

ORDER WHOLEGOODS

Bucket 36", 6 Teeth, 4.0 Cubic Ft Heaped Grave

1шт.

716435046

1шт.

6

SML363687

PIN

1.25x6.25

1шт.

7

SML3636816

PIN

1.25x8.50

2шт.

8

SML3636817

PIN

1.25x6.75

1шт.

9

SML4296915

SCREW

Cap 3/8-16x2.5 GR8

2шт.

10

SML418403

NUT

Lock 3/8-16

10шт.

11

SML526541

BUSHING

Sleeve

4шт.

12

SML482716

SPACER

1шт.

13

SML4827115

SPACER

2шт.

14

SML53738

PIN

1.25x7.88

2шт.

15

SML429696

SCREW

Cap 3/8-16x2.75 GR8

6шт.

16

SML60754

LUBE NIPPLE

1/4-28

5шт.

17

SML448671

BUCKET TOOTH

1шт.

18

SML41703

SHANK

Bucket

1шт.

19

SML526542

BUSHING

Sleeve, BH90, BH102

2шт.

19

SML474054

BUSHING

Sleeve, BH102, BH114

2шт.
