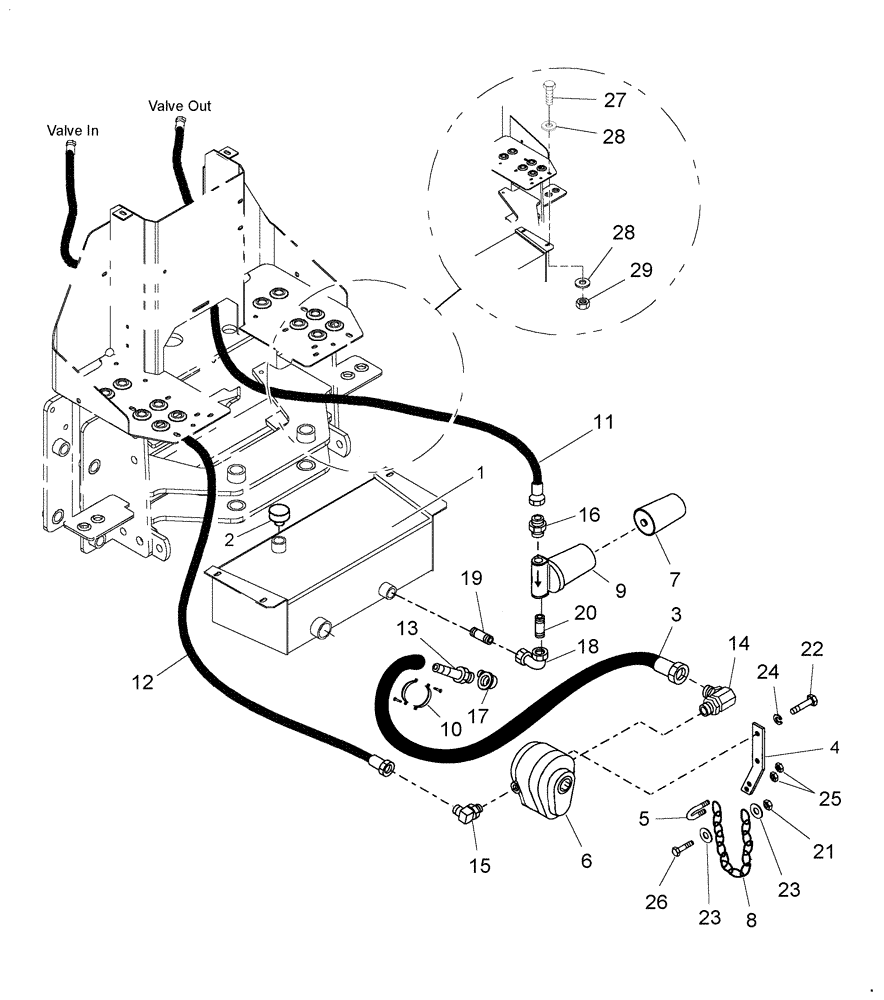

Запчасти Case IH BH102 (030) - PTO POWERED PUMP & RESERVOIR (4-5 GPM AT 540 RPM) - 716411016 (35) - HYDRAULIC SYSTEMS

1

SML54300

TANK

1шт.

2

SML12608

CAP COVER

Breather

1шт.

3

SML514311

HOSE

Hose, 3/4" x 30, Suction

1шт.

4

SML45282

BRACKET

Pump Retaining

1шт.

5

SML61222

CLIP

Wire Rope

1шт.

6

SML45250

HYDRAULIC PUMP

Pump, Serial Range: Refer-Fig.

1шт.

7

SML6095

ELEMENT

1шт.

8

SML63062

CHAIN

1шт.

9

SML6094

FILTER

(Includes Element)

1шт.

10

SML52527

FILTER STRAINER

Strainer, 1-1/4" NPT x 3/4" NPT

1шт.

11

SML4035011

FLEXIBLE HOSE

1/2 x 44

1шт.

12

SML514302

FITTING

Fitting, Adapter, 3/4" NPT x 3/4" NPT Female 90 Degree

1шт.

13

SML3284517

FITTING

Fitting, Elbow 3/4" NPT x 3/4-14 NPT 90 Degree

1шт.

14

84340

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

1шт.

15

SML3960911

FITTING

Fitting, Elbow, 3/4"-16 JIC x 3/4" NPT 90 Degree

1шт.

16

SML346443

FITTING

Fitting, Elbow, 3/4" NPT x 3/4" NPT 90 Degree

1шт.

17

88902

NUT,3/8"-16

1шт.

18

880011

SCREW

Cap, 3/8-16 x 1-11/4

1шт.

19

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

20

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

21

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

22

SML4183811

SCREW

Cap 3/8-16x1

2шт.

23

SML425028

WASHER

Flat, 3/8

8шт.

24

SML418403

NUT

Lock, 3/8-16

6шт.
