Запчасти Case IH 717975006 (045) - HYDRAULIC KIT - FARMALL 40B & 50B GEAR - 717975006

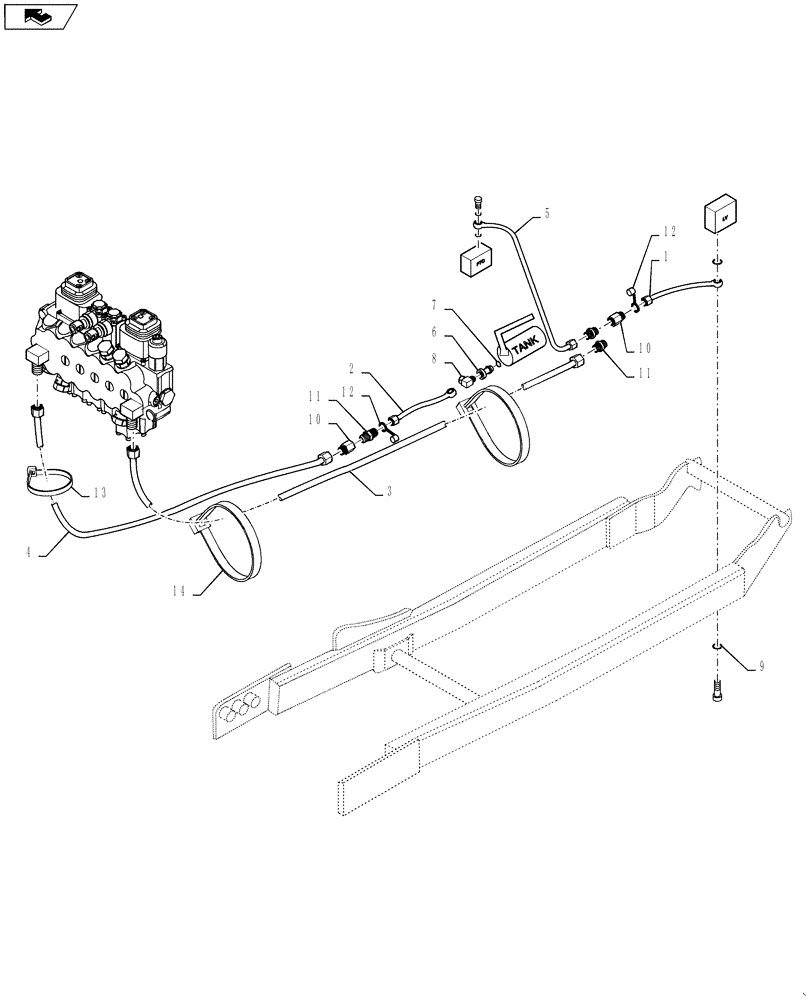

Схема запчастей Case IH 717975006 - (045) - HYDRAULIC KIT - FARMALL 40B & 50B GEAR - 717975006
9
4
8
12
10
10
14
13
6
home
1
2
3
11
5
7
12
11

Артикул

Название

Примечание

Количество

1

SML560421

HOSE

HOSE, #8-8MB-8BSPP BANJO X 6

1шт.

2

SML4282710

HOSE

HOSE, #8-8MB-8FJX X 30

1шт.

3

SML428277

FITTING

HOSE, #8-8MB-8FJX X 96

1шт.

Connects to Pressure Port

1шт.

4

SML428278

HOSE

HOSE, #8-8MB-8FJX X 60

1шт.

Connects to Tank Port

1шт.

5

SML560431

HOSE

HOSE, #8-8MB-6BSPP BANJO X 36

1шт.

Use Existing Flow Bolt & Seals

1шт.

Attaches to Hitch Assembly Top Cover/Rear Remote

1шт.

6

SML56048

FITTING

PLOWBOLT, 6BSPP X 8MJ (Without Seals)

1шт.

7

SML555171

SEAL

SEAL, #6 British Bond

2шт.

8

SML382262

ELBOW

Adapter, Elbow 8MJ - 8FJX45DEG

1шт.

9

SML555172

SEAL

SEAL, #8 British Bonded

2шт.

Use Existing Flow Bolt

1шт.

10

SML614710

COUPLING

Female, 1/2"

3шт.

11

SML613710

HYD CONNECTOR

Male, 1/2"

3шт.

12

SML483819

DUST CAP

1/2"

1шт.

13

SML81371

STRAP

Plastic, .19

1шт.

Not Illustrated

1шт.

14

SML81373

STRAP

Plastic, .50

4шт.

Выбрано товаров: 20
