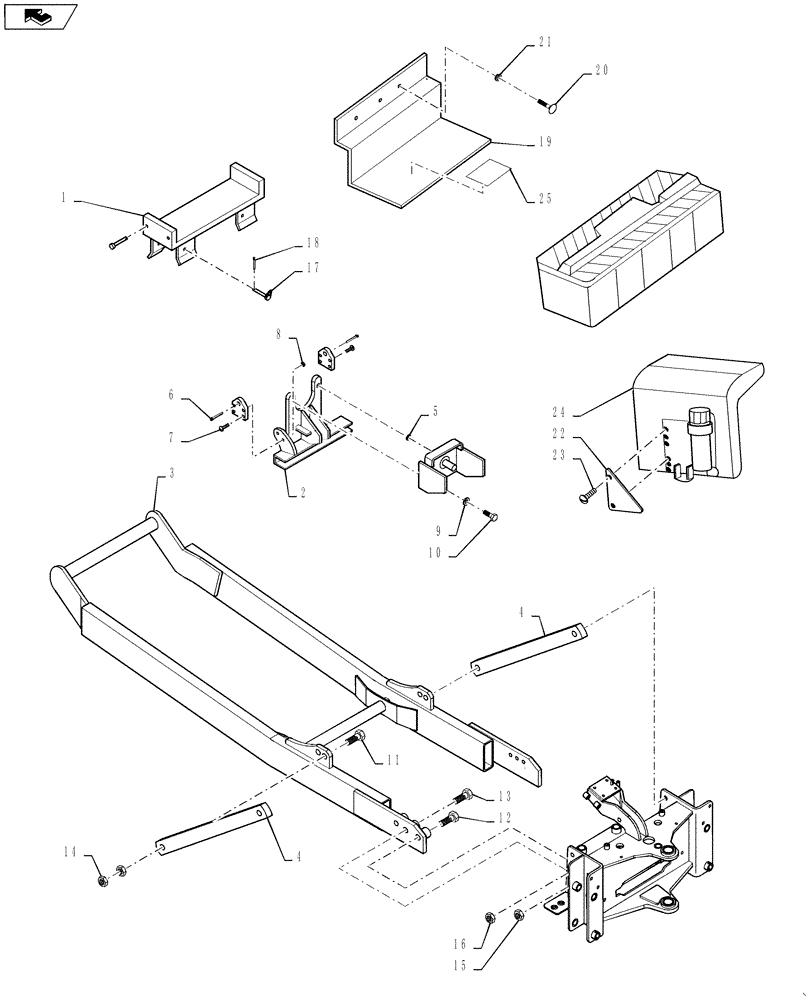

Запчасти Case IH 717973006 (017) - SUBFRAME KIT - FARMALL 40B & 50B - 717973006

1

SML56007

BRACKET

Front Hanger

1шт.

Use Existing Hardware

1шт.

Replaces Crossmember On Loader Mounts

1шт.

2

SML56024

BRACKET

Rear Hanger

1шт.

Use Existing Hardware

1шт.

Replaces Drawbar Support

1шт.

3

SML56029

FRAME

SUBFRAME

1шт.

4

SML53885

BAR

Support

2шт.

5

SML455882

SPACER

SPACER, .88 OD x .64 ID x .38 LG

2шт.

6

SML56033

PIN

Lower Link

2шт.

Replaces Lower 3-Point Pin

1шт.

7

SML4183823

SCREW

Hex Head 3/8-16 x 1.50 GR5

4шт.

8

SML418403

NUT

Lock, 3/8-16

4шт.

9

SML4904032

SCREW

Hex Head, M10-1.25 x 40mm 10.9

2шт.

10

SML4904021

SCREW

Hex Head, M14-2.0 x 45mm 10.9

2шт.

11

SML429694

SCREW

Hex Head, 3/4-10 x 2.75 GR8

4шт.

12

SML4183871

SCREW

Hex Head, 3/4-10 x 4.00 GR5

4шт.

13

SML41838102

SCREW

Hex Head, 7/8-9 x 4.50 GR5

2шт.

14

SML472648

LOCK NUT

Lock, 3/4-10

8шт.

15

SML545911

NUT

Spiral Lock 3/4-10

4шт.

16

SML545912

NUT

Spiral Lock 7/8-9

2шт.

17

SML44892

PIN,3.25" L

2шт.

18

SML447561

PIN

Lynch

2шт.

19

SML56060

BRACKET

Toolbox Mount

1шт.

Use Original Lynch Pin for Toolbox

1шт.

20

PL

PROCURE LOCALLY

Hex Head Capscrew, M8-1.25 x 20mm

3шт.

21

PL

PROCURE LOCALLY

Washer, Lock M8

3шт.

22

SML55994

STEEL PLATE

BRACKET, Thick Seat Adjustment

1шт.

23

SML4183860

SCREW

Hex Head, 5/16-18 x 1.00 GR5

2шт.

24

SML56067

BRACKET

Thin Seat Adjustment

1шт.

Use Existing Lockwashers

1шт.

25

SML00776608

WARNING DECAL

DECAL, Warning-No Step

1шт.
