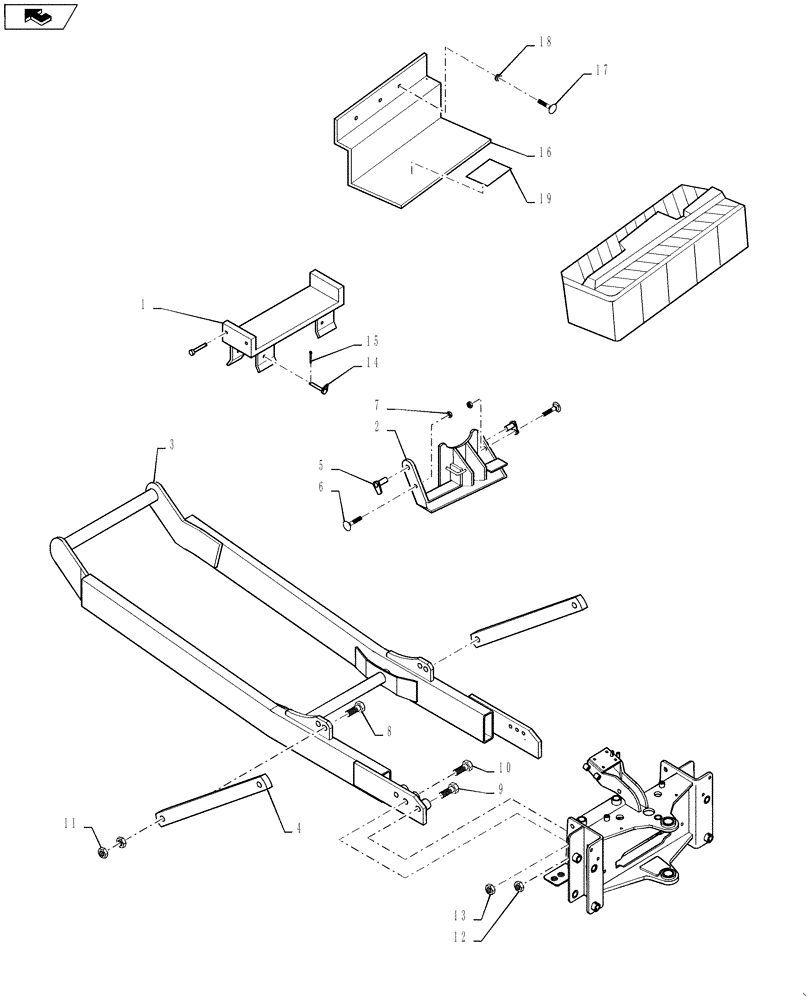

Запчасти Case IH 717972006 (016) - SUBFRAME KIT - FARMALL 30B & 35B - 717972006

1

SML56007

BRACKET

Front Hanger

1шт.

Use Existing Hardware

1шт.

2

SML56009

BRACKET

Rear Hanger

1шт.

Use Existing Hardware

1шт.

3

SML56029

FRAME

SUBFRAME

1шт.

4

SML53885

BAR

Support

2шт.

5

SML56021

PIN

Flag 22mm x 97mm

1шт.

6

SML4183811

SCREW

Hex Head 3/8-16 x 1.00 GR5

2шт.

7

SML418403

NUT

Lock, 3/8-16

2шт.

8

SML429694

SCREW

Hex Head, 3/4-10 x 2.75 GR8

4шт.

9

SML4183871

SCREW

Hex Head, 3/4-10 x 4.00 GR5

4шт.

10

SML41838102

SCREW

Hex Head, 7/8-9 x 4.50 GR5

2шт.

11

SML472648

LOCK NUT

Lock, 3/4-10

8шт.

12

SML545911

NUT

Spiral Lock 3/4-10

4шт.

13

SML545912

NUT

Spiral Lock 7/8-9

2шт.

14

SML44892

PIN,3.25" L

2шт.

15

SML447561

PIN

Lynch

2шт.

16

SML56060

BRACKET

Toolbox Mount

1шт.

Use Original Lynch Pin for Toolbox

1шт.

17

PL

PROCURE LOCALLY

Hex Head Capscrew, M8-1.25 x 20mm

3шт.

18

PL

PROCURE LOCALLY

Washer, Lock M8

3шт.

19

SML00776608

WARNING DECAL

DECAL, Warning-No Step

1шт.
