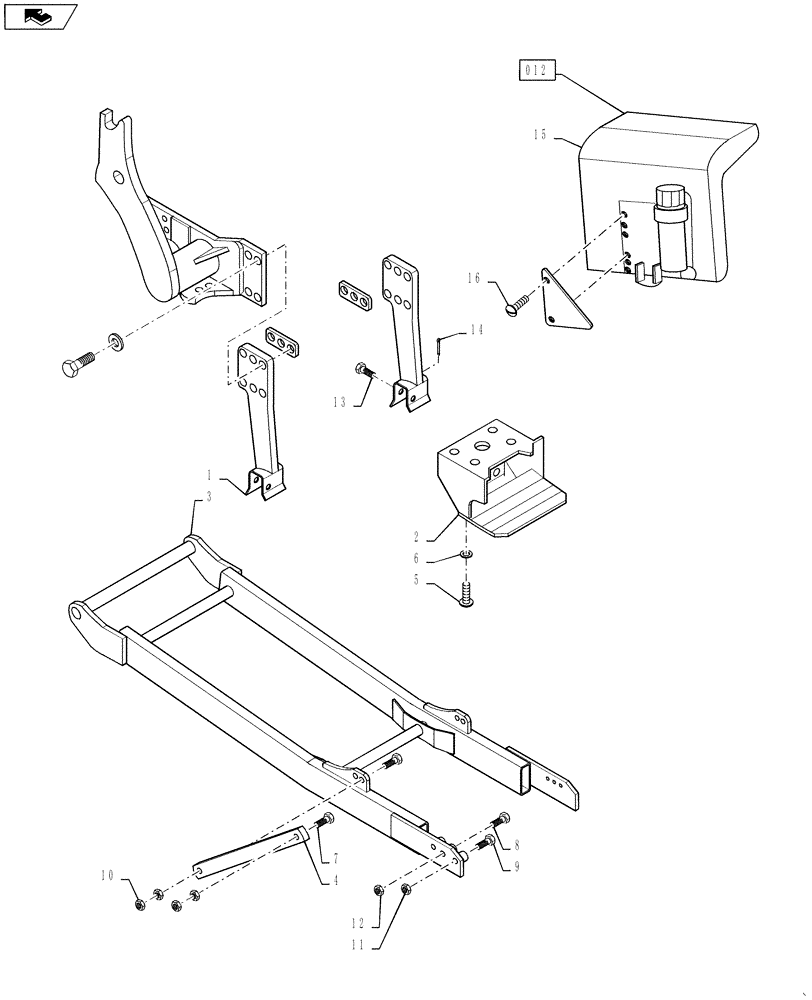

Запчасти Case IH 717912006 (015) - SUBFRAME KIT - FARMALL 45A & 55A - 717912006

1

SML55836

BRACKET

Front Hanger

2шт.

Front Hangers Take Place Of Large Spacer. Use Thin Spacer

1шт.

2

SML55840

BRACKET

Rear Hanger

1шт.

Use Existing Hardware

1шт.

3

SML55844

FRAME

SUBFRAME

1шт.

4

SML53885

BAR

Support

2шт.

5

PL

PROCURE LOCALLY

Hex Head Capscrew, M16-1.50 x 70mm

4шт.

6

PL

PROCURE LOCALLY

Washer, Lock M16

4шт.

7

SML429694

SCREW

Hex Head, 3/4-10 x 2.75 GR8

4шт.

8

SML4183871

SCREW

Hex Head, 3/4-10 x 4.00 GR5

4шт.

9

SML41838102

SCREW

Hex Head, 7/8-9 x 4.50 GR5

2шт.

10

SML472648

LOCK NUT

Lock, 3/4-10

8шт.

11

SML545911

NUT

Spiral Lock 3/4-10

4шт.

12

SML545912

NUT

Spiral Lock 7/8-9

2шт.

13

SML44892

PIN,3.25" L

2шт.

14

SML447561

PIN

Lynch

2шт.

15

SML55994

STEEL PLATE

Seat Adjustment

1шт.

Use Existing Lockwashers

1шт.

16

SML4183860

SCREW

Hex Head, 5/16-18 x 1.00 GR5

2шт.
