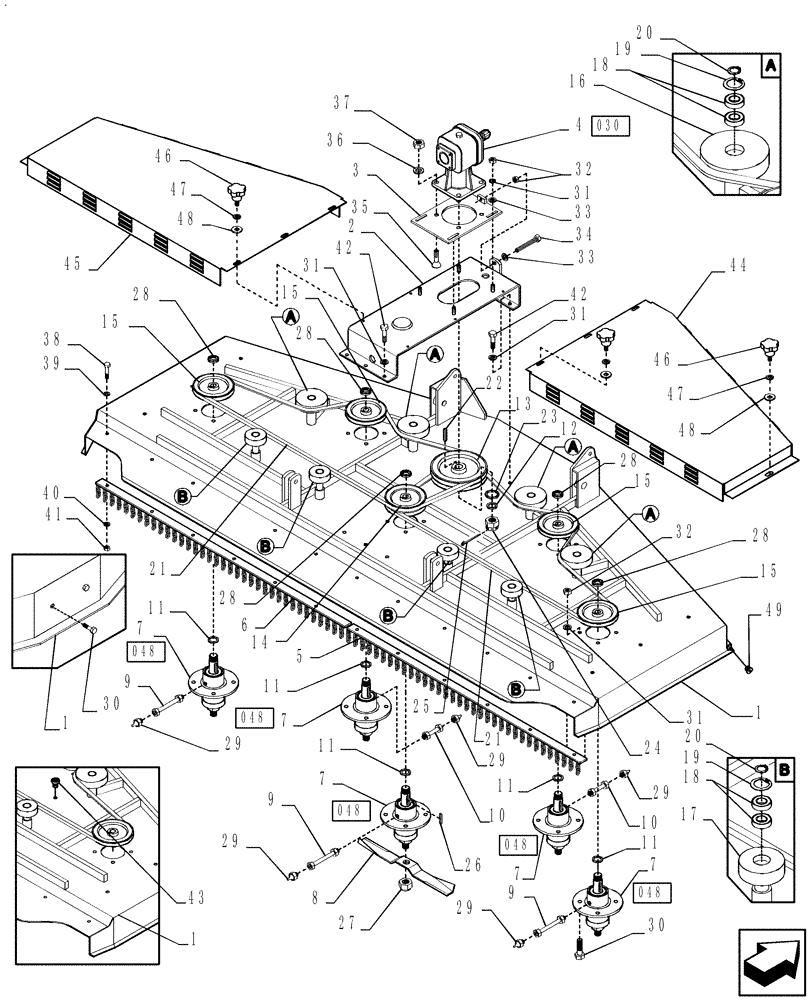

Запчасти Case IH 717675056 (047) - REAR DECK

1

CSE110095

MOWER DECK

1шт.

2

CSE100135

SUPPORT

Gearbox

1шт.

3

CSE100126

BRACKET

Gearbox Support

1шт.

4

CSE110321

GEARBOX

1шт.

5

SIT110066

SHIELD

Discharge RH

1шт.

6

SIT110067

SHIELD

Discharge LH

1шт.

7

SIT110299

SPINDLE

5шт.

8

SIT100065

BLADE

5шт.

9

SIT100148

TUBE

Line

3шт.

10

SIT100125

TUBE

Line

2шт.

11

SIT100050

SHIM

5шт.

12

SIT100042

SHIM,2mm Thk

2mm-0.08"

1шт.

13

SIT100138

PULLEY

242-2B

1шт.

14

SIT100139

PULLEY

140-2B

1шт.

15

SIT100140

PULLEY

140-1B

4шт.

16

SIT100132

TIGHTENER

Belt 148

4шт.

17

SIT100133

TIGHTENER

Belt 64

4шт.

18

SIT600872

BEARING ASSY

16шт.

19

SIT600885

SNAP RING

8шт.

20

SIT600600

SNAP RING

8шт.

21

SIT620647

BELT

2шт.

22

SIT600181

WOODRUFF KEY

10x8x40

1шт.

23

SIT600335

WASHER

1шт.

24

SIT600296

NUT

24x2

1шт.

25

SIT600347

SPLIT PIN

5x50

1шт.

26

SIT600123

WOODRUFF KEY

8x7x35

5шт.

27

SIT600746

NUT

M18x1.5

5шт.

28

SIT600122

LOCK NUT

M25x1.5

5шт.

29

62161

LUBE NIPPLE,M8 x 1.25, Str

5шт.

30

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

22шт.

31

SIT600102

SPRING WASHER

30шт.

32

100016

NUT,M10 x 1.5, Cl 8

25шт.

33

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

5шт.

34

SIT600160

SCREW

M10x80

1шт.

35

SIT600158

SCREW

M14x40

4шт.

36

SIT600104

SPRING WASHER

4шт.

37

412370

NUT,M14 x 2, Cl 8

4шт.

38

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

9шт.

39

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

12шт.

40

SIT600100

SPRING WASHER

12шт.

41

SIT600037

NUT

M8

12шт.

42

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

6шт.

43

SIT620816

PLUG

7шт.

44

CSE110109

PROTECTIVE COVER

Belt, RH

1шт.

45

CSE110113

PROTECTIVE COVER

Belt, LH

1шт.

46

SIT620471

HANDLE

6шт.

47

80681

LOCK WASHER,5/16"

8шт.

48

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

49

SIT600855

PLUG

2шт.
