(035) - CARDAN SHAFT SIT620855

Запчасти Case IH 717675056 (035) - CARDAN SHAFT SIT620855

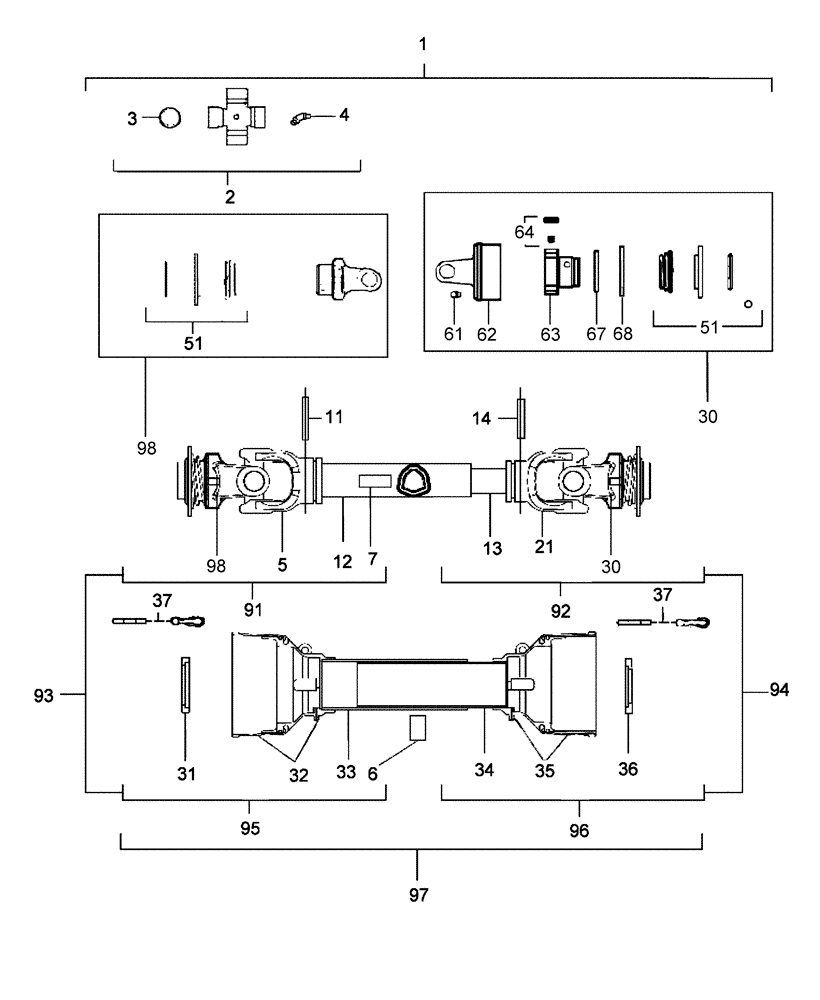

Схема запчастей Case IH 717675056 - (035) - CARDAN SHAFT SIT620855
2
30
31
96
37
13
92
4
61
95
94
5
51
37
93
1
7
34
30
36
11
98
63
32
91
14
98
62
21
12
6
97
35
68
64
3
51
67
33
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SIT620855

SHAFT

Cardan Includes: Ref. 2-98

1шт.

2

SIT610235

JOURNAL

Cross

2шт.

3

SIT610205

CIRCLIP

8шт.

4

SIT610206

LUBE NIPPLE

M8x1/45

2шт.

5

SIT610246

YOKE

Outer Tube

1шт.

6

SIT001411

DECAL

Danger

1шт.

7

SIT001316

DECAL

Danger Shield

1шт.

11

SIT610208

SPRING

Pin 8x60

1шт.

12

SIT610209

TUBE,640 mm L

Cardan

1шт.

13

SIT610210

TUBE

Cardan

1шт.

14

SIT610211

SPRING

8x55

1шт.

21

SIT610238

YOKE

Inner Tube

1шт.

30

SIT620898

CLUTCH

Free Wheel (overrunning clutch) Includes: Ref. 51,61-64, 67 & 68

1шт.

31

SIT620336

BEARING LINER

Outer

1шт.

32

SIT620826

BEARING CONE

Outer

1шт.

33

SIT620895

TUBE

Outer Safety

1шт.

34

SIT620896

TUBE

Inner Safety

1шт.

35

SIT620829

BEARING CONE

Inner

1шт.

36

SIT620337

BEARING LINER

Inner

1шт.

37

SIT610068

CHAIN

2шт.

51

SIT620830

KIT

Ball Collar

2шт.

61

SIT610216

LUBE NIPPLE

M8x1

1шт.

62

SIT620897

CASING

Outer With Yoke

1шт.

63

SIT620872

HUB

1 3/8"

1шт.

64

SIT620873

TOOTH

Ratchet

3шт.

67

SIT620874

SNAP RING

1шт.

68

SIT610253

SNAP RING

1шт.

91

SIT620899

SHAFT

Outer Half

1шт.

92

SIT620900

SHAFT

Inner Half

1шт.

93

SIT620901

SHAFT

Outer Half

1шт.

94

SIT620902

SHAFT

Inner Half

1шт.

95

SIT620903

GUARD

Outer Half Safety

1шт.

96

SIT620904

GUARD

Inner Half Safety

1шт.

97

SIT620905

GUARD

Safety

1шт.

98

SIT620825

YOKE

Includes: Ref. 51

1шт.
