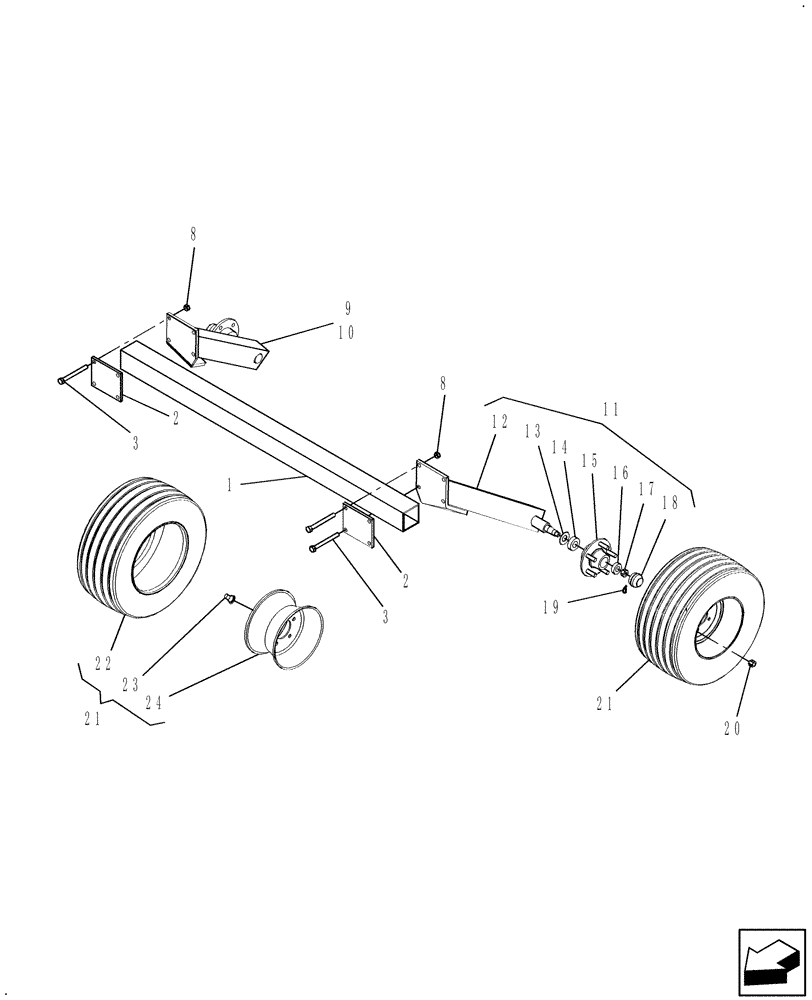

Запчасти Case IH 717675036 (020) - BIG WHEEL

1

CSE100616

CROSSMEMBER

Outer

1шт.

2

CSE100641

PLATE

2шт.

3

SIT600595

SCREW

M16x140

8шт.

8

86000441

NUT,M16 x 2.0, Cl 8

8шт.

9

CSE100688

SUPPORT

Wheel, R.H. Complete Includes: Ref. 10-13

1шт.

10

CSE100690

SUPPORT

Wheel, R.H. W/Pin Only

1шт.

11

CSE100689

SUPPORT

Wheel, L.H. Complete Includes: Ref. 12-19

1шт.

12

CSE100691

SUPPORT

Wheel, L.H. W/Pin Only

1шт.

13

86837117

COVER

Cover

1шт.

14

210053

TAPERED BEARING,40mm ID x 80mm OD x 18mm W

1шт.

15

86729939

HUB

1шт.

16

309085

BEARING ASSY,30mm ID x 62mm OD x 17.25mm W

1шт.

17

86837120

SLOTTED NUT,M27 x 1.5

1шт.

18

86837119

CAP

1шт.

19

300595

COTTER PIN,M4 x 40

1шт.

20

87021907

WHEEL NUT

10шт.

21

SIT620023

WHEEL

26x12.00-12 Grey Rim

2шт.

22

SIT620034

TIRE TUBE

Solid

1шт.

23

SIT620101

VALVE STEM

1шт.

24

CSE620036

RIM

Grey

1шт.
