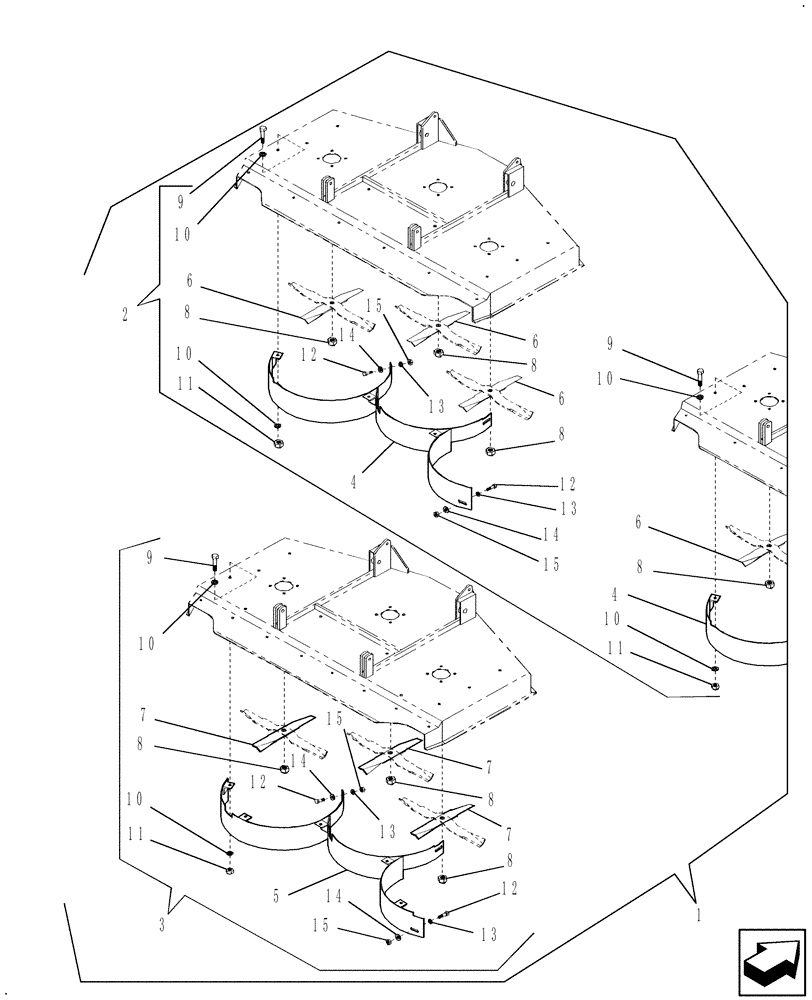

Запчасти Case IH 717675036 (051) - MULCH KIT

1

CSE110287

SERVICE KIT

Mulch Includes: Ref. 2-15

1шт.

2

SIT110283

SERVICE KIT

Mulch 60" Includes: Ref. 4,6,8-15

2шт.

3

SIT110284

SERVICE KIT

Mulch 72" Includes: Ref. 5,7-15

1шт.

4

CSE110324

CONVEYOR

60" Mower

1шт.

5

CSE110325

CONVEYOR

72" Mower

1шт.

6

SIT100358

CUTTING BLADE

13.78" (350mm)

6шт.

7

SIT100359

CUTTING BLADE

16.54" (420mm)

3шт.

8

SIT610701

NUT

M18x1.5

9шт.

9

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

15шт.

10

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

30шт.

11

100037

LOCK NUT,M10 x 1.5, Cl 8

15шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

9шт.

13

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

9шт.

14

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

9шт.

15

86629542

NUT,M8 x 1.25, Cl 8.8

9шт.
