(033) - CARDAN SHAFT SIT620840

Запчасти Case IH 717675036 (033) - CARDAN SHAFT SIT620840

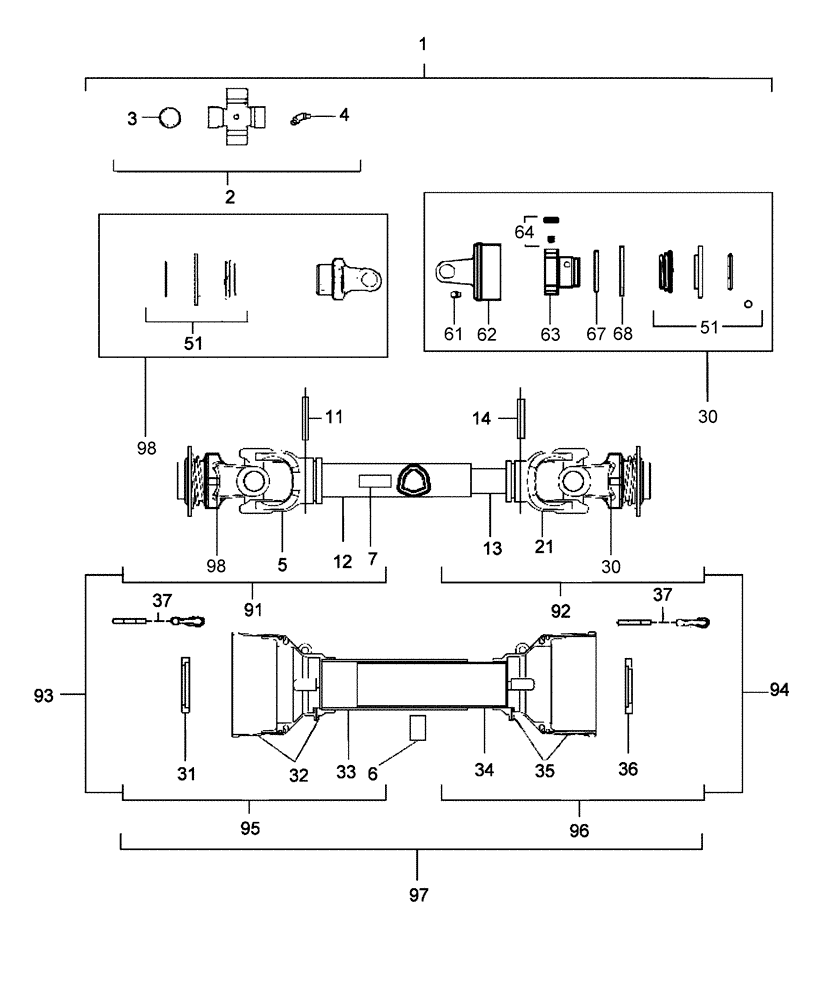

Схема запчастей Case IH 717675036 - (033) - CARDAN SHAFT SIT620840
21
32
92
5
98
1
37
64
6
37
30
98
11
12
30
91
61
36
51
51
93
33
31
68
96
4
34
3
63
62
14
35
2
7
13
97
95
67
94
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SIT620840

SHAFT

Cardan Includes: Ref. 2-98

1шт.

2

SIT610052

JOURNAL

Cross

2шт.

3

SIT610248

CIRCLIP

8шт.

4

SIT610206

LUBE NIPPLE

M8x1/45

2шт.

5

SIT610249

YOKE

Outer Tube

1шт.

6

SIT001411

DECAL

Danger

1шт.

7

SIT001316

DECAL

Danger Shield

1шт.

11

SIT610211

SPRING

Pin 8x55

1шт.

12

SIT610210

TUBE

Cardan

1шт.

13

SIT610123

TUBE

Cardan

1шт.

14

412689

LOCK PIN,8mm OD x 50mm L, Slotted

8x50

1шт.

21

SIT610250

YOKE

Inner Tube

1шт.

30

SIT620870

CLUTCH

Free Wheel (overrunning clutch) Includes: Ref. 51,61-64, 67 & 68

1шт.

31

SIT620703

BEARING LINER

Outer

1шт.

32

SIT620843

BEARING CONE

Outer

1шт.

33

SIT620844

TUBE

Outer Safety

1шт.

34

SIT620845

TUBE

Inner Safety

1шт.

35

SIT620846

BEARING CONE

Inner

1шт.

36

SIT620706

BEARING LINER

Inner

1шт.

37

SIT610068

CHAIN

2шт.

51

SIT620830

KIT

Ball Collar

2шт.

61

SIT610216

LUBE NIPPLE

M8x1

1шт.

62

SIT620871

CASING

Outer With Yoke

1шт.

63

SIT620872

HUB

1 3/8"

1шт.

64

SIT620873

TOOTH

Ratchet

3шт.

67

SIT620874

SNAP RING

1шт.

68

SIT610253

SNAP RING

1шт.

91

SIT620847

SHAFT

Outer Half

1шт.

92

SIT620875

SHAFT

Inner Half

1шт.

93

SIT620849

SHAFT

Outer Half

1шт.

94

SIT620876

SHAFT

Inner Half

1шт.

95

SIT620851

GUARD

Outer Half Safety

1шт.

96

SIT620852

GUARD

Inner Half Safety

1шт.

97

SIT620853

GUARD

Safety

1шт.

98

SIT620842

YOKE

Includes: Ref. 51

1шт.
