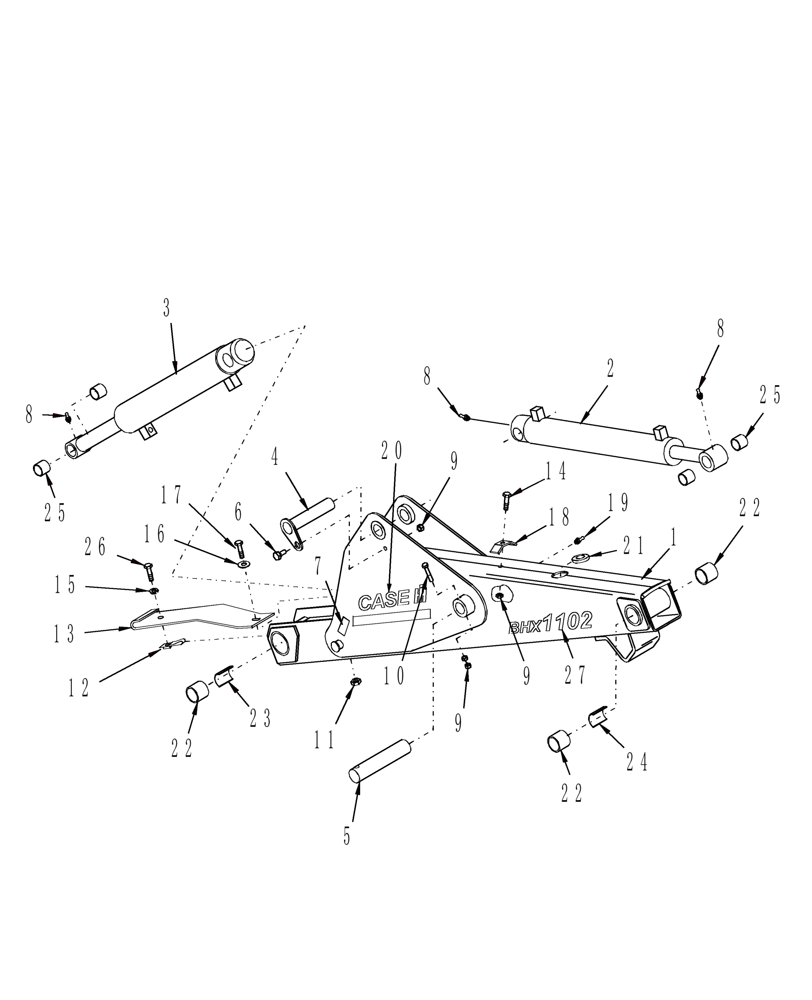

Запчасти Case IH 716735016 (18) - BOOM

1

CSE48180

BOOM

1шт.

2

CSE48236

CYLINDER

Dipperstick

1шт.

3

CSE48244

HYDRAULIC CYLINDER,Double Acting, 425.45mm Stroke

Boom

1шт.

4

SML356056

PIN

1.25 x 4.88"

1шт.

5

86581631

PIN

1.25 x 6.62"

1шт.

6

SML47046

BOLT

Shoulder, 3/8-16 x 1"

1шт.

7

SML44908

DECAL

Boom Lock

1шт.

8

87414

LUBE NIPPLE,1/4" - 28

NIPPLE, LUBE, 1/4"-28 x .56" lg, Drive

3шт.

9

9637692

NUT,3/8"-16, GB

NUT, LOCK, GC, 3/8"-16

4шт.

10

SML429696

SCREW

Cap, 3/8-16 x 2-3/4", Grade 8

1шт.

11

86629544

NUT,5/16” – 18, GR B

NUT LOCK, 5/16"-18, GB

1шт.

12

9626645

NUT

Speed, 5/16"-18

1шт.

13

CSE48119

HOSE CLAMP

Clamp, Hose

1шт.

14

619539

BOLT

Cap, HH, G5, 3/8"-16 x 1-1/2"

1шт.

15

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

16

87362

WASHER,5/16" SAE

Flat, 5/16"

1шт.

17

8275

PIN,3/4" - 10 x 9.75"

Screw, Cap, HH, G5, 5/16 x 1-1/2"

2шт.

18

86583623

CLAMP

1шт.

19

PL

PROCURE LOCALLY

Fitting, Grease, 1/8" NPT

1шт.

20

CSE51467

DECAL

CASE IH

2шт.

21

SML60799

GROMMET

1шт.

22

86582485

BUSHING

4шт.

23

86583586

SPACER

1шт.

24

SML482714

SPACER

1шт.

25

SML474054

BUSHING

4шт.

26

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

Screw, Cap, 5/16 x 1-3/4

1шт.

27

CSE51465

DECAL

BHX1102

2шт.
