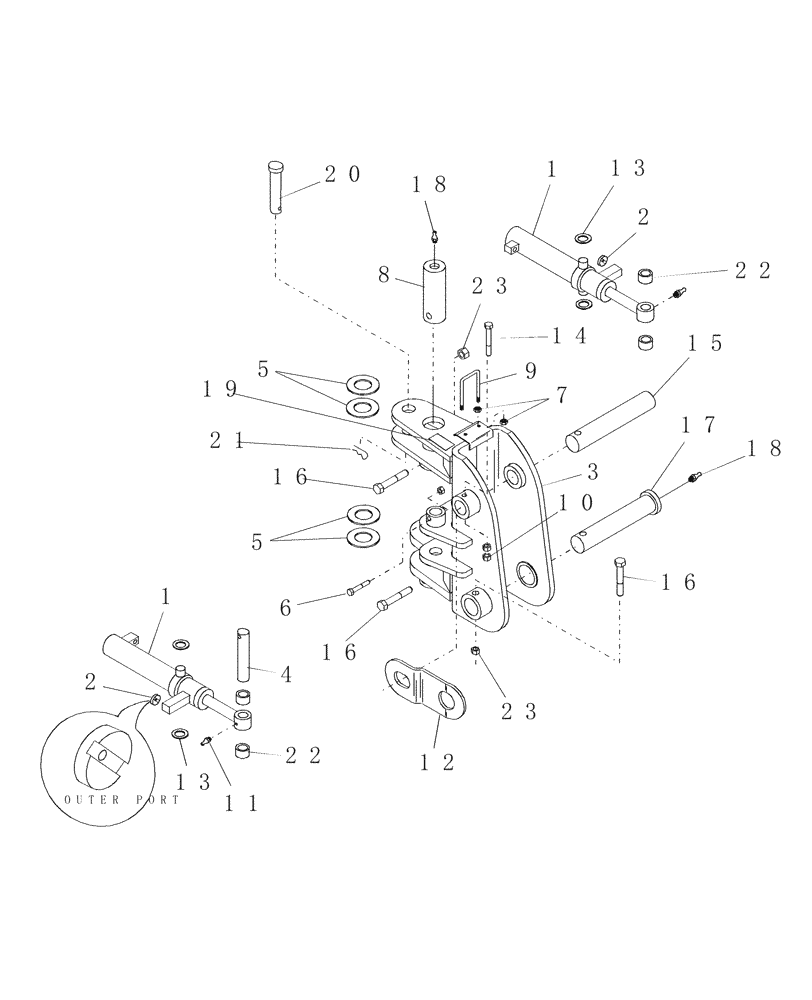

Запчасти Case IH 716735016 (14) - SWING POST & SWING CYLINDERS

1

CSE47463

HYDRAULIC CYLINDER,227.84mm Stroke

Swing

2шт.

2

SML47879

REDUCER

Restrictor, .093"

2шт.

3

CSE48146

FRAME

Spring

1шт.

4

SML466322

PIN

Swing Cylinder, 1x4-3/4"

2шт.

5

SML45098

WASHER

Bushing, Machine, 1-3/4" I.D.

8шт.

6

280649

BOLT,Tap, Hex, 5/6" - 18 x 2", Gr 5

Screw, Cap, HH, G5, 5/16"-18 x 2"

2шт.

7

86629544

NUT,5/16” – 18, GR B

NUT LOCK, 5/16"-18, GB

6шт.

8

SML48212

PIN,44.45mm OD x 127mm L

Swing Post, 1-3/4x5"

2шт.

9

SML44813

U-BOLT

Clamp, U-Bolt, 5/16"

1шт.

10

9637692

NUT,3/8"-16, GB

NUT, LOCK, GC, 3/8"-16

2шт.

11

87414

LUBE NIPPLE,1/4" - 28

NIPPLE, LUBE, 1/4"-28 x .56" lg, Drive

2шт.

12

CSE48211

LOCKING PLATE

Lock, Boom

1шт.

13

86582378

WASHER,25.4mm ID x 38.1mm OD x 1.98mm Thk

Machine, 1" I.D.

4шт.

14

PL

PROCURE LOCALLY

Screw, Cap, HH, 3/8"-16 x 2-3/4", Grade 8

1шт.

15

SML3636815

PIN

Boom Cylinder Rod, 1-1/4x7-13/16"

1шт.

16

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

Screw, Cap, HH, G5, 1/2"-13 x 3"

3шт.

17

SML48213

PIN

1-1/2 x 8.06"

1шт.

18

PL

PROCURE LOCALLY

Fitting, Grease, 1/8" NPT

3шт.

19

SML44909

DECAL

Swing Lock

1шт.

20

SML4190217

CLEVIS PIN

Pin, Swing Lock, 1 x 3.25"

1шт.

21

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

PIN, SPLIT (COTTER), , Hair Int, 7/32" x 2.75" x 0.148"

1шт.

22

SML474621

BUSHING

1" I.D. x 1.25" O.D.

2шт.

23

9636698

NUT,1/2"-13, GB

NUT, LOCK, GC, 1/2"-13

3шт.
