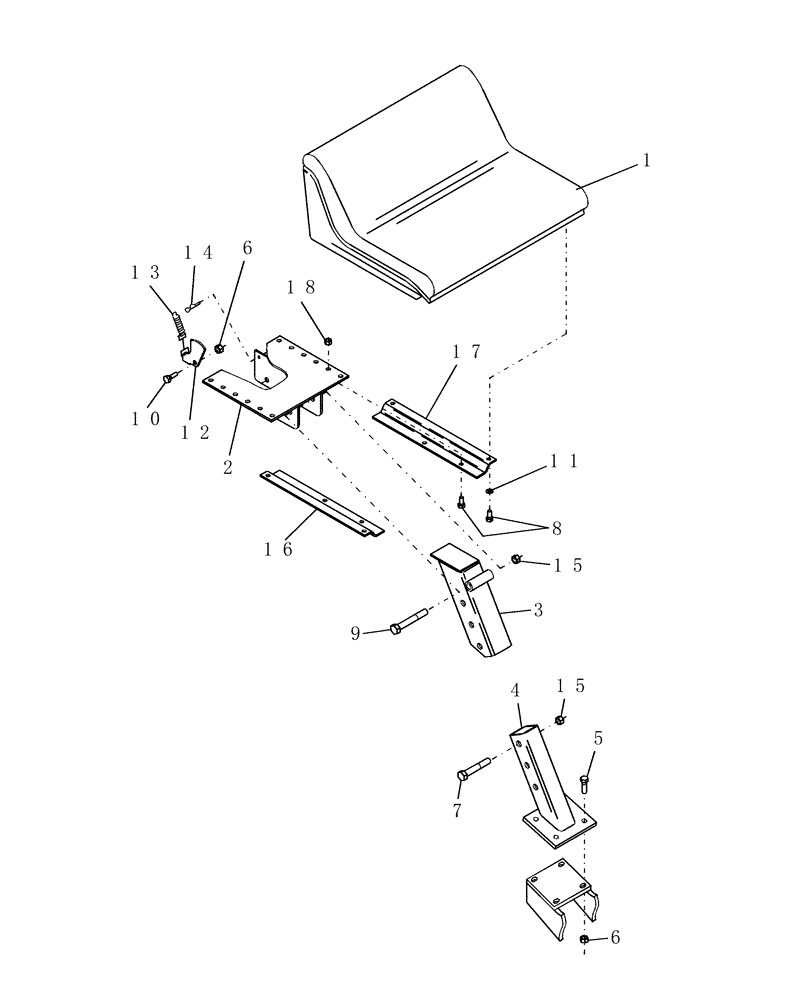

Запчасти Case IH 716735016 (59) - SEAT

1

SML48222

DRIVER SEAT

Seat

1шт.

1

SML52233

SEAT

Assembly Repair Includes: Ref. 1 SML52139 Seat & Ref. 19 SML52234 Adapter Plate

1шт.

Used BSN DDF006626

1шт.

1

SML52139

SEAT

1шт.

Used On & ASN DDF006626

1шт.

2

CSE49407

BRACKET

Seat

1шт.

3

CSE48432

POST

Upper, Seat

1шт.

4

CSE48424

POST

Lower, Seat

1шт.

5

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

6

9637692

NUT,3/8"-16, GB

NUT, LOCK, GC, 3/8"-16

5шт.

7

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

Screw, Cap, HH, G5, 1/2"-13 x 3"

2шт.

8

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Screw, Cap, HH, G5, 5/16"-18 x 3/4"

8шт.

9

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

Drilled Hex, 1/2"-13 x 3 1/2", G5

1шт.

10

SML247135

BOLT

Shoulder, 3/8-16 x 1-1/2"

1шт.

11

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

SML44814

LATCH

Spacer

1шт.

13

SML44819

SPRING

1шт.

14

87019

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

15

9636698

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13

3шт.

16

CSE481222

RAIL

Seat, Right

1шт.

17

CSE481221

RAIL

Seat, Left

1шт.

18

87382

LOCK NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

4шт.

19

SML52234

PLATE

Adapter Plate

1шт.

Not Illustrated

1шт.

Used On & ASN DDF006626

1шт.
