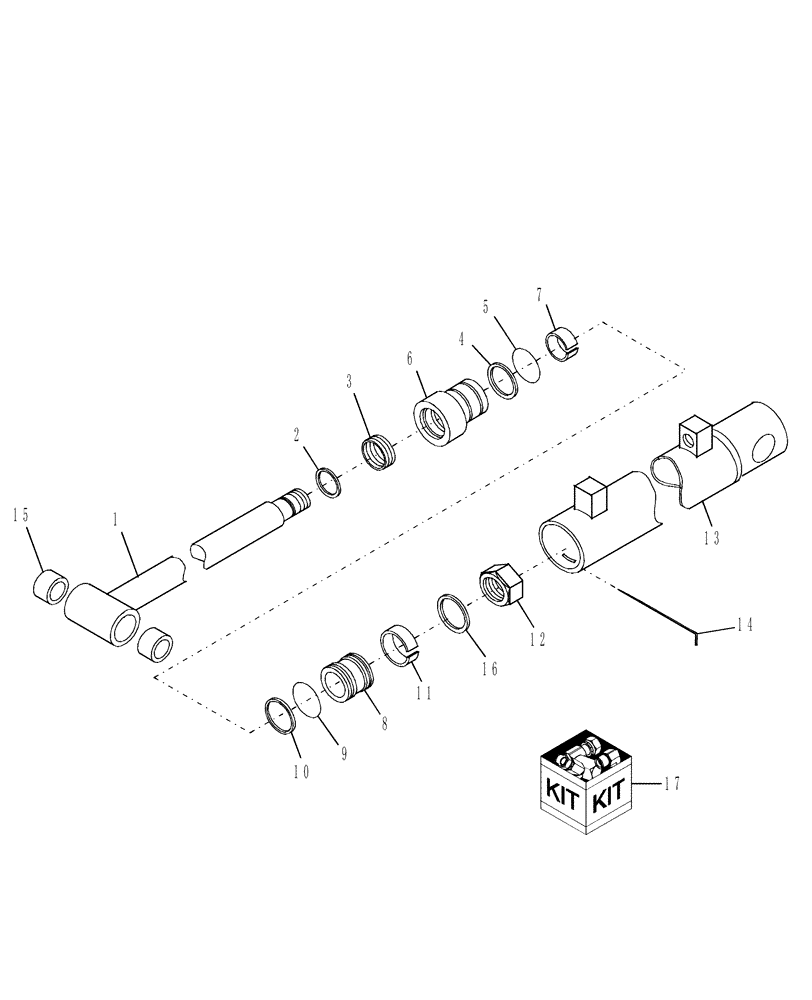

Запчасти Case IH 716735016 (54) - BOOM CYLINDER

CSE48244

HYDRAULIC CYLINDER,Double Acting, 425.45mm Stroke

Boom, ML (2-3/4")

1шт.

1

SML48243

ROD

1-3/8"

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Wiper

1шт.

3

NSS

NOT SOLD SEPARAT

Seal, V-Cup

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

86581661

CYLINDER HEAD

Head, Cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

8

SML48249

PISTON

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

10

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

12

SML329032

LOCK NUT

Lock, 1"

1шт.

13

CSE48246

HYD CYL SLEEVE

Tube, Cylinder

1шт.

14

NSS

NOT SOLD SEPARAT

Lockwire

1шт.

15

SML474054

BUSHING

Wear

2шт.

16

SML445373

PISTON RING

Ring, Piston

1шт.

17

86581665

SEAL KIT

Kit, Repair, Includes: Ref. 2, 3, 4, 5, 7, 9, 10, 11, 14

1шт.
