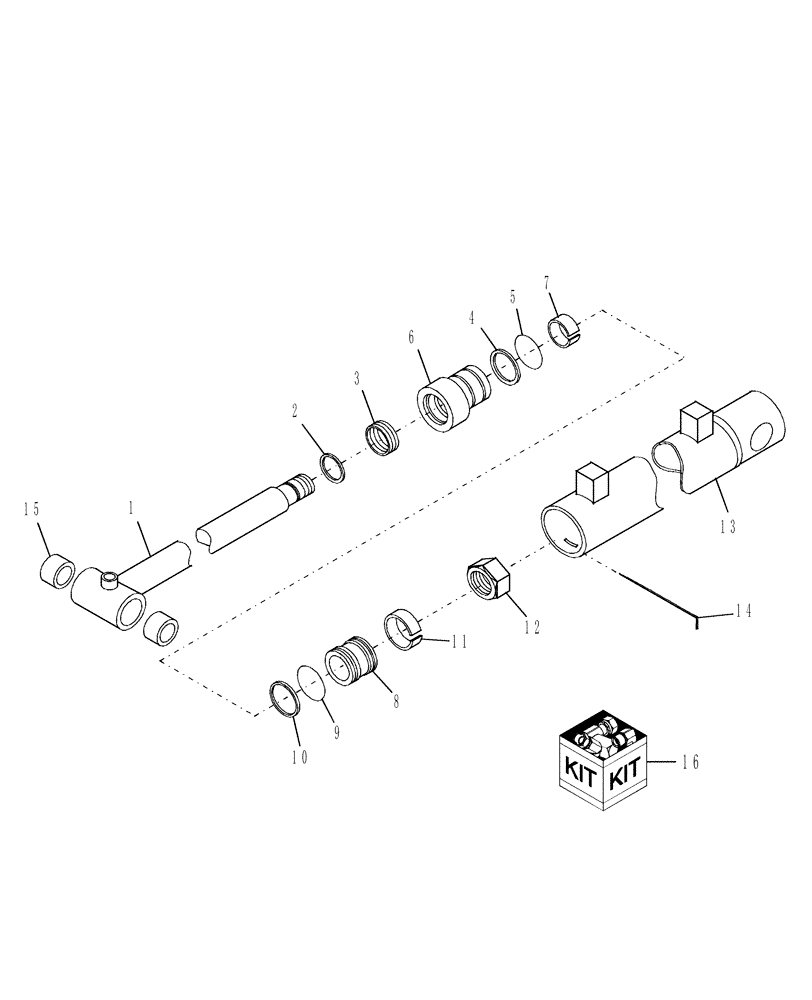

Запчасти Case IH 716735016 (49) - BUCKET CYLINDER

CSE48250

CYLINDER,Double Acting, 488.95mm Stroke

Bucket, MM (2-1/4")

1шт.

1

SML48251

ROD

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Wiper

1шт.

3

NSS

NOT SOLD SEPARAT

Seal, V-Cup

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

SML41488

CYLINDER HEAD

Head, Cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

8

SML35519

PISTON

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

10

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

12

SML389983

LOCK NUT

Lock, G8, 1"-14

1шт.

13

CSE48255

HYD CYL SLEEVE

Tube, Cylinder

1шт.

14

NSS

NOT SOLD SEPARAT

Lockwire

1шт.

15

SML474054

BUSHING

Wear

2шт.

16

SML41555

REPAIR KIT

Kit, Repair, Includes: Ref. 2, 3, 4, 5, 7, 9, 10, 11, 14

1шт.
