Запчасти Case IH 716735016 (35) - HYDRAULIC KIT - 715431006 - D35, DX35, D40, DX40, D45, DX45 TRACTORS

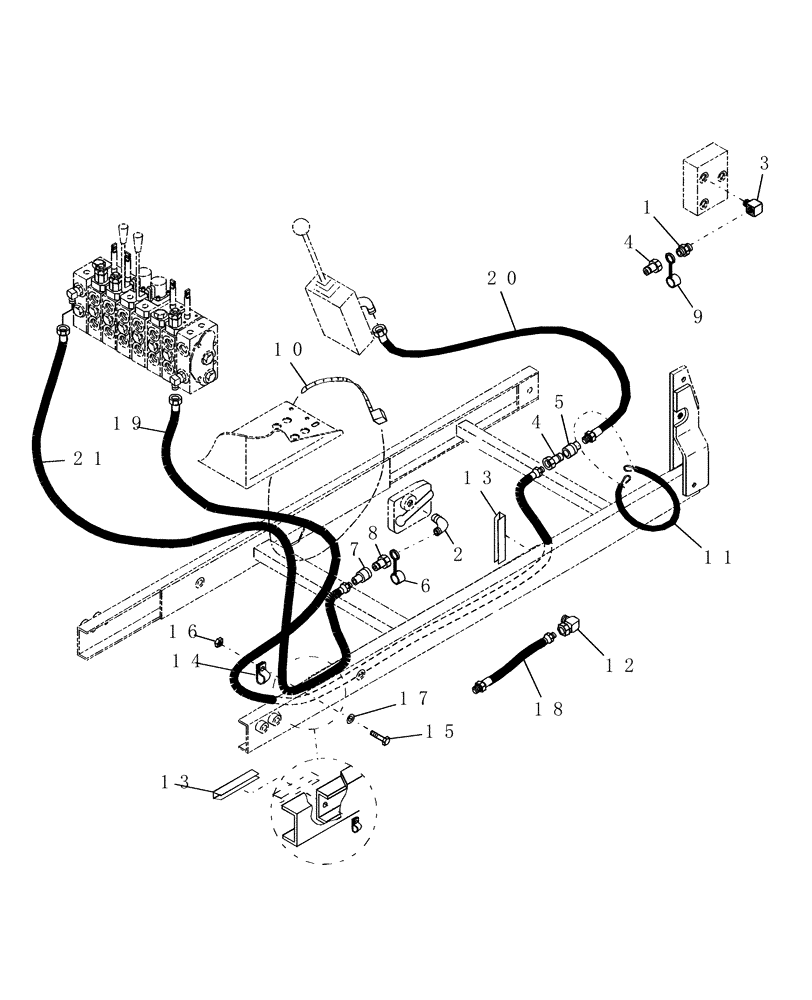

Схема запчастей Case IH 716735016 - (35) - HYDRAULIC KIT - 715431006 - D35, DX35, D40, DX40, D45, DX45 TRACTORS
13
4
20
14
9
15
10
16
3
13
6
7
5
18
8
11
1
4
2
12
21
19
17

Артикул

Название

Примечание

Количество

1

SML449821

ADAPTER

Fitting, Adapter, 3/8" NPTF x 3/8" NPTF

1шт.

2

SML346442

ELBOW

Fitting, Elbow, 1/2" NPT x 3/8" NPT, 90 Degree

1шт.

3

SML7669

ELBOW

Fitting, Elbow, 3/8" NPT X 3/8" NPT, 90 Degree

1шт.

4

86583622

ADAPTER

Quick Coupler, Male, 3/8"

2шт.

5

86583553

ADAPTER

Quick Coupler, Female, 3/8"

1шт.

6

86581687

COVER

Dustcap, 1/2"

1шт.

7

SML61478

COUPLING, QUICK, FEM

Quick Coupler, Female, 1/2"

1шт.

8

SML61376

QUICK MALE COUPLING

Quick Coupler, Male, 1/2"

1шт.

9

SML48385

DUST CAP

Dustcap, 3/8"

1шт.

10

SML81376

CABLE TIE

Strap, Adjustable Tie, 5/16" x 11"

1шт.

11

86581718

SECURING STRAP

Strap, Tarp

1шт.

12

SML60068

ELBOW

Fitting, Elbow, 3/8" x 1/2", 90 Degree - with Triple Rear Remotes

1шт.

13

86581645

PROTECTION

Trim, Plastic, 4"

2шт.

14

SML82226

CLAMP

Tube

1шт.

15

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

Hex, 5/16"-18 x 1-1/4", G5

1шт.

16

280736

NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

17

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

18

SML60072

HOSE,0.50" ID x 15.00", SAE 100R1

- with Triple Rear Remotes 0.50" ID x 15.00", SAE 100R1

1шт.

19

SML412622

HOSE,0.38" ID x 120.00"

0.38" ID x 120.00"

1шт.

20

SML485891

HOSE,0.50" ID x 30.00"

0.50" ID x 30.00"

1шт.

21

SML410534

HOSE,0.50" ID x 72.00"

0.50" ID x 72.00"

1шт.

Выбрано товаров: 21
