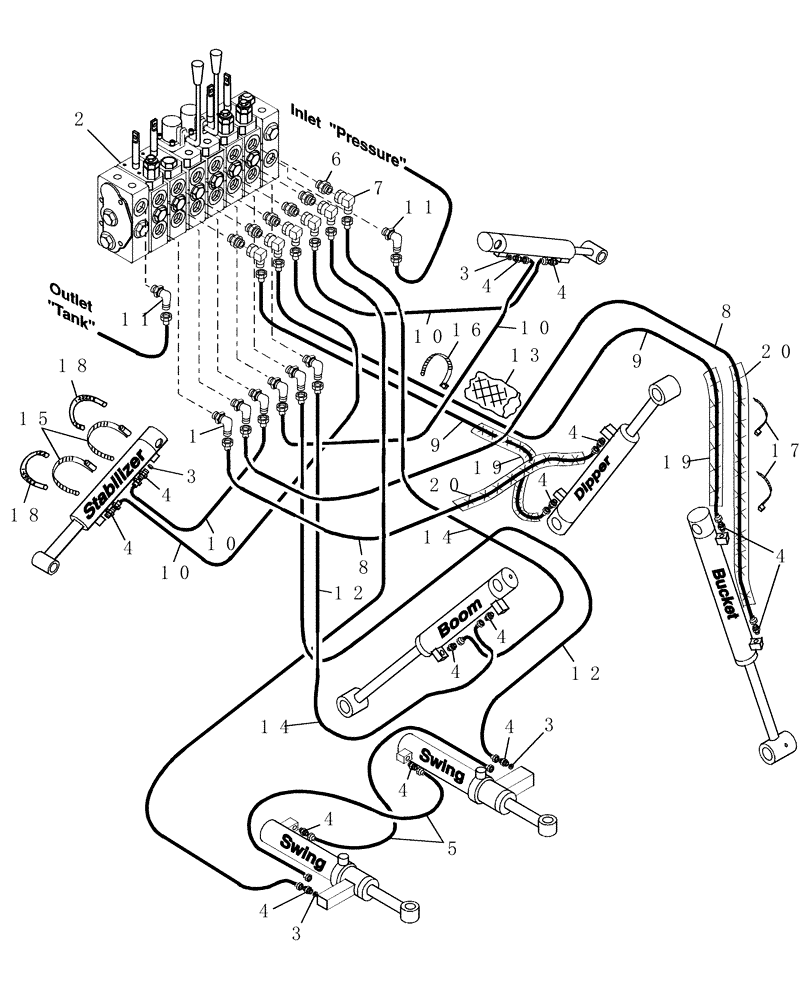

Запчасти Case IH 716735016 (30) - HYDRAULIC HOSES & FITTINGS

1

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Fitting, Elbow, 9/16-18 JIC x 3/4" O-Ring, 90°

6шт.

2

SML48217

HYDRAULIC VALVE

Valve Assy. Refer to Fig. 28 for breakdown

1шт.

3

SML47879

REDUCER

Restrictor, .093"

4шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

CONNECTOR, HYD., 9/16"-18, 37º x 9/16"-18, O-Ring

14шт.

5

SML482821

HOSE

1/4 x 24" (Swing Cyl. to Swing Cyl. )

2шт.

6

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

Fitting, Adapter, 3/4" O-Ring x 9/16" JIC

6шт.

7

259177

ELBOW,90º, 9/16"-18, 37º x 9/16"-18, 37º Fem Sw

Fitting, Elbow, 9/16-18" JIC x 9/16-18" JIC Swivel, 90°

6шт.

8

SML482813

HOSE

1/4 x 140" (Dipper & Bucket Rod )

2шт.

9

SML482812

HOSE

1/4 x 120" ( Dipper & Bucket Base )

2шт.

10

SML482815

HOSE

1/4 x 54" (Stabilizer to Valve )

4шт.

11

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

12

SML482814

HOSE

1/4 x 40" (Swing Cyl. to Valve )

2шт.

13

SML3485313

SLEEVE

Nylon, 10"

1шт.

14

SML482811

HOSE

1/4 x 66"

2шт.

15

SML60762

CLAMP

Hose

4шт.

16

86581720

SECURING STRAP

Strap, Tie, Adjustable, 1/2x20"

1шт.

17

SML81371

STRAP

Adjustable Tie, 3/16" x 11"

1шт.

18

SML448651

LOOM

Woven Cotton Loom

4шт.

19

SML3485333

SLEEVE

Nylon, 38"

2шт.

20

SML3485334

SLEEVE

Nylon, 58"

2шт.
