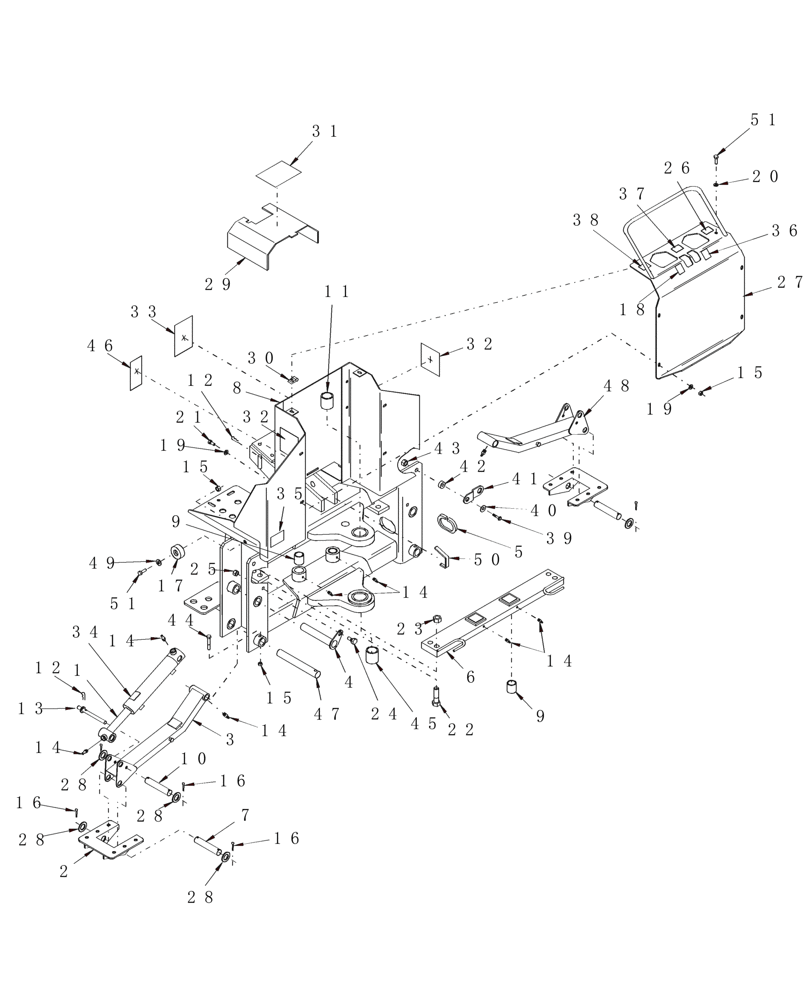

Запчасти Case IH 716735016 (03) - MAINFRAME & STABILIZERS

1

CSE47272

CYLINDER,Double Acting, 270.76mm Stroke

Stabilizer

2шт.

2

CSE44796

STABILIZER

Foot, Stabilizer

2шт.

3

CSE476312

STABILIZER

Right

1шт.

4

SML3133211

PIN

Anti Rotation, 1x5.88"

2шт.

5

SML450371

TRIM PANEL

Trim, Plastic, 1/2x8-1/2"

2шт.

6

CSE47500

BAR

Support

1шт.

7

SML448661

PIN

1x6.44"

2шт.

8

CSE48201

FRAME

Main

1шт.

9

SML447903

BUSHING

4шт.

10

SML448662

PIN

1x5.81"

2шт.

11

SML482062

BUSHING

1шт.

12

247113

PIN

Cotter, Hair, Int, 3/32 x 1-7/8"

2шт.

13

SML44765

PIN

Stop, Stabilizer Pad

2шт.

14

87414

LUBE NIPPLE,1/4" - 28

NIPPLE, LUBE, 1/4"-28 x .56" lg, Drive

10шт.

15

86629544

NUT,5/16” – 18, GR B

NUT LOCK, 5/16"-18, GB

8шт.

16

88350

COTTER PIN,5/32" x 1-1/2"

Pin,Split (Cotter), 5/32" x 1-1/2"

8шт.

17

SML47880

STOP

Rubber

2шт.

18

SML44901

DECAL

Operation

1шт.

19

87362

WASHER,5/16" SAE

Flat, 5/16"

8шт.

20

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Screw, Cap, 5/16"-18 x 3/4"

4шт.

22

280355

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

Screw, Cap, HH, 5/8"-11 x 2-1/4", Grade 8

4шт.

23

19670

NUT,5/8"-11, GB

Nut, Lock, 5/8"-11

4шт.

24

PL

PROCURE LOCALLY

Bolt, Shoulder, 3/8-16 x 1"

2шт.

25

9637692

NUT,3/8"-16, GB

NUT, LOCK, GC, 3/8"-16

2шт.

26

SML44898

DECAL

Operation

1шт.

27

CSE44800

COVER

1шт.

28

PL

PROCURE LOCALLY

Washer, Machine, 1 x 1-1/2"

8шт.

29

CSE44777

COVER

Seat Bracket

1шт.

30

9626645

NUT

Speed, 5/16"-18

2шт.

31

SML258205

ANTI-SKID STRIP

Anti Skid Patch

1шт.

32

SML45970

DECAL

Warning, Bodiliy Injury

2шт.

33

SML44896

DECAL

Warning, Bodiliy Injury

1шт.

34

SML44897

DECAL

Danger, Crush Hazard

2шт.

35

SML44895

DECAL

Danger, Crush Hazard

2шт.

36

SML44900

DECAL

Operation

1шт.

37

SML44907

DECAL

Warning, Instability

1шт.

38

SML44899

DECAL

Operation

1шт.

39

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

40

PL

PROCURE LOCALLY

Washer, Flat, 1/2"

2шт.

41

CSE47891

LOCK

Flat, Stabilizer

2шт.

42

SML474271

SPACER

Tube, Spacer

2шт.

43

9636698

NUT,1/2"-13, GB

NUT, LOCK, GC, 1/2"

2шт.

44

280649

BOLT,Tap, Hex, 5/6" - 18 x 2", Gr 5

HH, Tap, G5, 5/16"-18 x 2"

2шт.

45

SML482061

BUSHING

1-3/4 I.D. x 2-1/4" O.D.

1шт.

46

SML48280

DECAL

1шт.

47

SML359573

PIN

1x7-1/2"

2шт.

48

CSE476311

STABILIZER

Left

1шт.

49

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

50

SML450373

PROTECTION STRIP

Trim, Plastic, 1/2 x 4"

2шт.

51

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.
