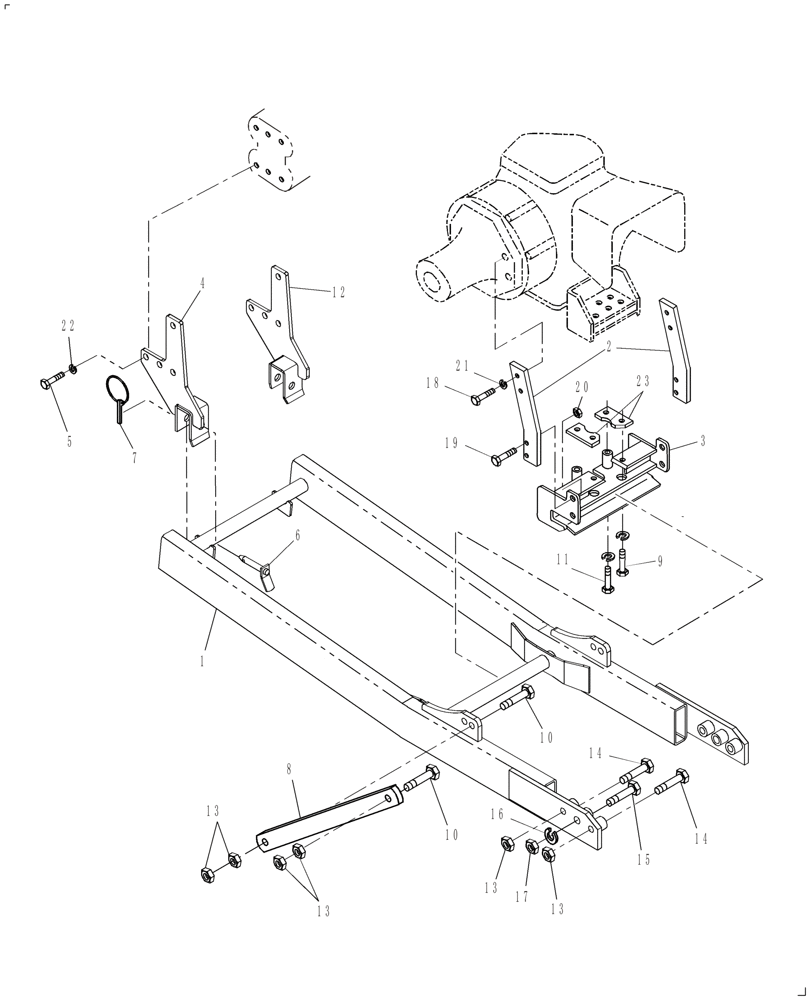

Запчасти Case IH 716437036 (014) - SUBFRAME KIT - D25,DX25,D29,DX29,DX31,D33/DX33,DX34 - 716437036

1

SML53914

FRAME

Sub

1шт.

2

SML44941

SUPPORT

Flat

2шт.

3

SML54404

BRACKET

Mounting

1шт.

4

SML53903

BRACKET

Ear, Mounting, Left

1шт.

5

SML4267241

SCREW

HH Cap M16 x 2 x 70

8шт.

6

SML44892

PIN,3.25" L

3/4 x 3"

2шт.

7

SML447561

PIN

Lynch

2шт.

8

SML53885

BAR

Mount

2шт.

9

SML4267212

SCREW

HH Cap, M16 x 2 x 50 CL8.8

2шт.

10

SML429694

SCREW

HH Cap 3/4-10 x 2.75 GR8

4шт.

11

SML4267240

HH Cap M16 x 2 x 100 CL8.8

2шт.

12

SML53904

BRACKET

Ear, Mounting, Right

1шт.

13

SML472648

LOCK NUT

Lock, 3/4 - 10

10шт.

14

SML4183871

SCREW

HH Cap 3/4-10 x 4 GR5

4шт.

15

SML41838102

SCREW

HH Cap 7/8-9 x 4 1/2 GR5

2шт.

16

SML418379

WASHER

Lock 7/8

2шт.

17

SML418409

LOCK NUT

7/9-9

2шт.

18

SML4267219

SCREW

HH Cap M12-1.75 x 30 CL 8.8

4шт.

19

SML4183833

SCREW

HH Cap 12-13 x 1 1/2 GR5

4шт.

20

SML418405

LOCK NUT

1/2-13

4шт.

21

SML418375

LOCK WASHER

1/2

4шт.

22

SML418377

LOCK WASHER

5/8

8шт.

23

SML44950

SPACER

2шт.
