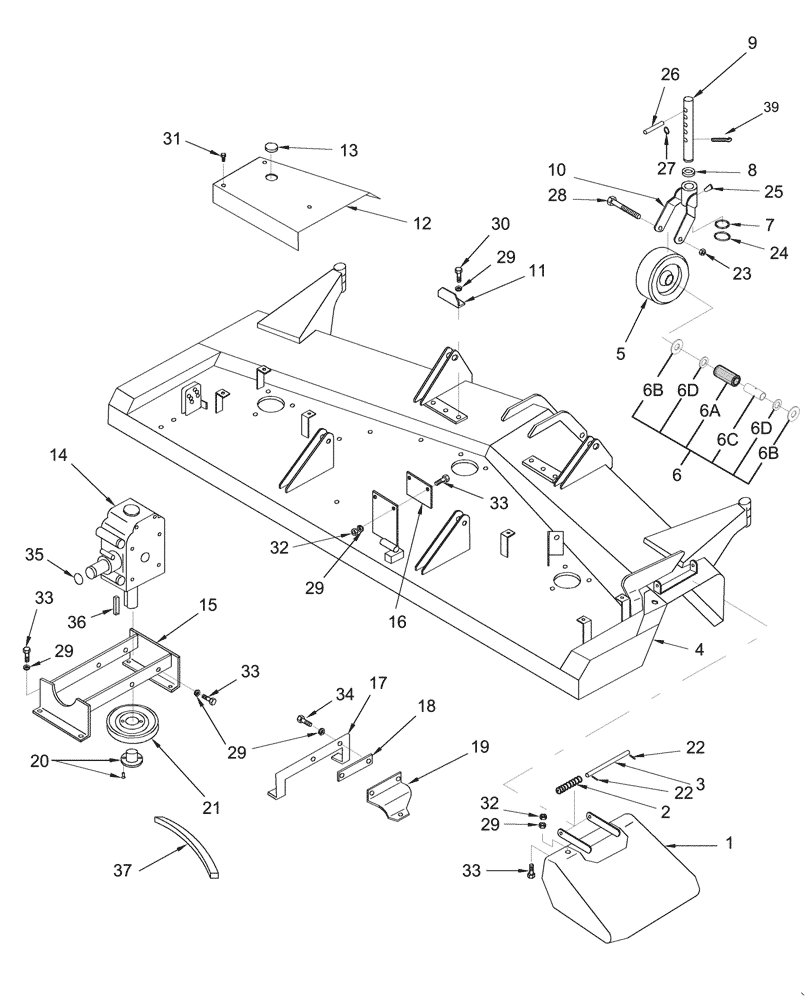

Запчасти Case IH 716418046 (003) - DECK COMPONENTS

1

CSE164085

SHIELD

Deflector Shield, MWX60S

1шт.

1

CSE164045

SHIELD

Discharge, MWX72S

1шт.

Includes Necessary Decals, See Fig. 26

1шт.

2

AUB160052

SPRING

Torsion

1шт.

3

AUB160058

PIN

Deflector Hinge

1шт.

4

CSE164060

MOWER DECK

Deck Shell, MWX60S

1шт.

Includes Necessary Decals, See Fig. 26

1шт.

4

CSE164072

MOWER DECK

Deck Shell, MWX72S

1шт.

Includes Necessary Decals, See Fig. 26

1шт.

5

AUB121712

WHEEL BEARING KIT

Wheel & Tire Assy., Includes: Ref. 6

2шт.

6

AUB121865

BEARING ASSY

Kit, Wheel Bearing Includes: Ref. 6A-6D

1шт.

6a

NSS

NOT SOLD SEPARAT

Bearing

1шт.

6b

NSS

NOT SOLD SEPARAT

Thrust Washer

2шт.

6c

NSS

NOT SOLD SEPARAT

Spanner

1шт.

6d

NSS

NOT SOLD SEPARAT

Seal-Retainer

2шт.

7

AUB314167

RING

Washer, Special, 1.0 ID x 1-1/2" OD

2шт.

8

AUB161860

SPACER

Bushing, Gauge Wheel Spindle

2шт.

9

AUB162767

SHAFT

Gauge Wheel Spindle

2шт.

10

CSE161864

BRACKET

Yoke, Front Gauge Wheel

2шт.

11

CSE162288

BUMPER

Stop, Front, MWX72S

2шт.

Use with 72" only, when the tractor is eqiupped with large Ag. Tires.

1шт.

12

AUB164095

SHIELD

Belt, L.H., MWX60S

1шт.

12

AUB164026

SHIELD

Belt, L.H., MWX72S

1шт.

12

CSE164076

SHIELD

Belt, R.H., MWX60S

1шт.

12

CSE164334

SHIELD

Belt, R.H. MWX60S

1шт.

12

CSE164024

COVER

Shield, Belt, R.H., MWX72S

1шт.

12

CSE164337

SHIELD

Belt, R.H., MWX72S

1шт.

13

AUB160118

PLUG

3шт.

14

CSE162131

GEARBOX ASSY

.

1шт.

14

84279411R

REMAN-GEARBOX

Reman for new P/N CSE162131

1шт.

14

84279411C

CORE-GEARBOX

Return Number

1шт.

15

CSE160552

FRAME

Bracket, Gearbox Mount, ,MWX72S

1шт.

16

CSE162148

BUMPER

Stop, Rear Extension, MWX72S

1шт.

Use with 72" only, when the tractor is eqiupped with large Ag. Tires.

1шт.

17

CSE164055

BRACKET

Gearbox Mount, L.H., MWX60S

1шт.

18

AUB162149

BAR

MWX60S

1шт.

19

CSE162113

BRACKET

Gearbox Mount, R.H., MWX60S

1шт.

20

AUB140430

HUB

Collet Hub W/Fasteners

1шт.

21

AUB147454

PULLEY

B, 6.9" OD, MWX60S

1шт.

21

AUB161813

PULLEY

B, 5.9" OD, MWX72S

1шт.

22

38-31016

PIN,5/32" x 1", Coiled

2шт.

23

232-4148

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

24

100-1698

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

2шт.

25

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

26

86551409

PIN

Clevis, 3/8" x 2-1/8"

2шт.

27

AUB967057

RING

Wire

2шт.

28

35982

BOLT,Spcl, 1/2" x 3 3/4", Drilled

Screw, Cap, HH, Drilled, G5, 1/2"-13 x 3-3/4"

2шт.

29

192-11038

WASHER, LOCK

3/8"

15шт.

31

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

31

121-133

SERRATED BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

716419016 Hex Flg, 5/16"-18 x 5/8", Serr

8шт.

32

425-106

NUT,3/8"-16, Cl 5

4шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

MWX60S Hex, 3/8"-16 x 1", G5, Full Thd

9шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

MWX72S Hex, 3/8"-16 x 1", G5, Full Thd

5шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HH, G5, 3/8"-16 x 1-1/2"

2шт.

34

PL

PROCURE LOCALLY

Bolt, 3/8"-16 x 1-1/4" -MWX72S

4шт.

35

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

1шт.

36

87477

KEY

1/4" Sq x 1"

1шт.

37

AUB161355

V-BELT

Belt, 9863248 - MWX60S, Effective Length 159.8"

1шт.

37

AUB161711

V-BELT

Belt, 9864024 - MWX72S, Effective Length 174.8"

1шт.

38

AUB162909

KIT

Baffle - MWX60S - Weld on parts to replace lighter gage baffles

1шт.

38

AUB162908

KIT

Baffle - MWX72S - Weld on parts to replace lighter gage Baffles

1шт.

39

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.
