(36) - 11.0 GPM PTO PUMP & RESERVOIR, 716411006

Запчасти Case IH 716393006 (36) - 11.0 GPM PTO PUMP & RESERVOIR, 716411006

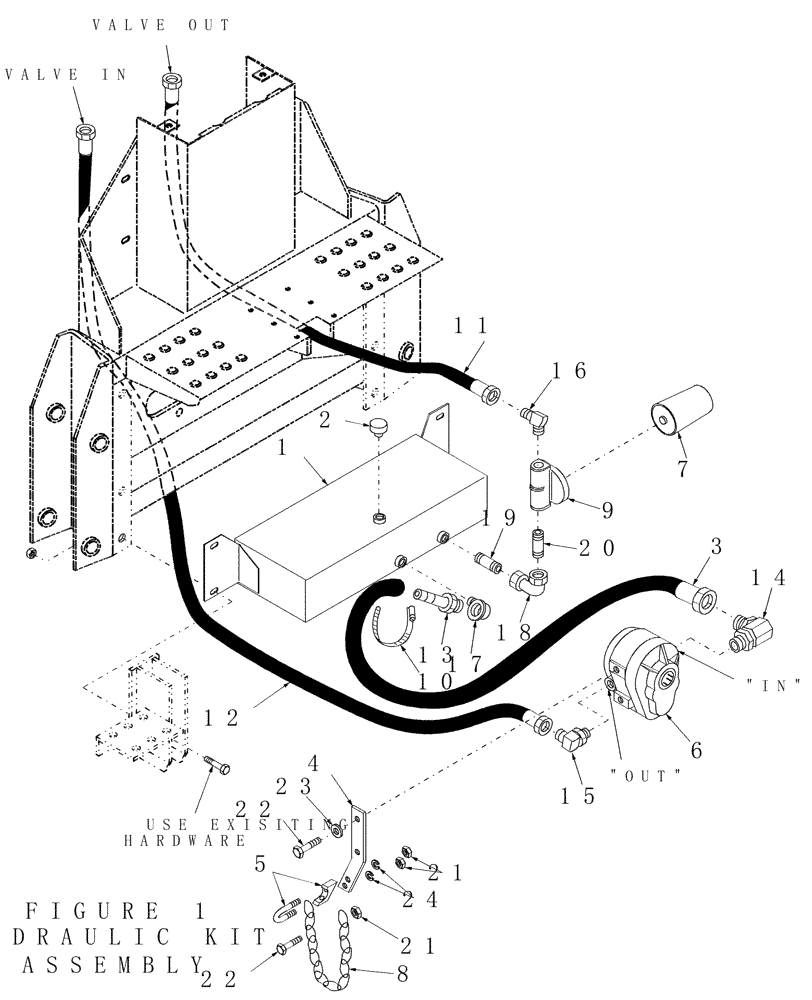

Схема запчастей Case IH 716393006 - (36) - 11.0 GPM PTO PUMP & RESERVOIR, 716411006
13
4
figure 1
20
3
assembly
21
11
hardware
12
15
6
19
valve out
7
14
use exisiting
21
8
1
23
17
hydraulic kit
valve in
10
16
9
22
2
24
5
18
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SML45248

TANK

Assembly

1шт.

2

SML12608

CAP COVER

Breather

1шт.

3

SML452491

FLEXIBLE HOSE

Hose, 1" X 50, Suction

1шт.

4

SML45282

BRACKET

Pump Retaining

1шт.

5

SML61222

CLIP

Wire Rope Clip

1шт.

6

SML45250

HYDRAULIC PUMP

Pump Refer to Fig. 43

1шт.

7

SML6095

ELEMENT

Filter Element

1шт.

8

SML63062

CHAIN

1шт.

9

SML6094

FILTER

Assembly (Includes Element)

1шт.

10

SML355961

CLAMP

Hose Clamp

1шт.

11

SML4035013

FLEXIBLE HOSE

Hose, 1/2 x 60

1шт.

12

SML4035011

FLEXIBLE HOSE

Hose, 1/2 x 44

1шт.

13

248466

HYD CONNECTOR

Hose Barb

1шт.

14

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Fitting, Elbow, 1-5/16-12 JIC x 1-5/16-12 O-ring (Live Swivel), 90o

1шт.

15

84340

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

3/4", 37° Flare, 90° Elbow, Straight Thread O-Ring

1шт.

16

22877

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 14 NPT

Fitting, 3/4-16 X 3/4 NPT

1шт.

17

128804

ELBOW

Fitting, Elbow, 1" NPT Male x 1" Female NPT, 90°

1шт.

18

PL

PROCURE LOCALLY

Fitting, Elbow, 1" FEMALE x 3/4" Female, 90o

1шт.

19

PL

PROCURE LOCALLY

Fitting, 1 x 2-1/2

1шт.

20

PL

PROCURE LOCALLY

Fitting, 3/4 x 2

1шт.

21

88902

NUT,3/8"-16

NUT, 3/8"-16, GC

1шт.

22

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3шт.

23

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

24

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

2шт.
